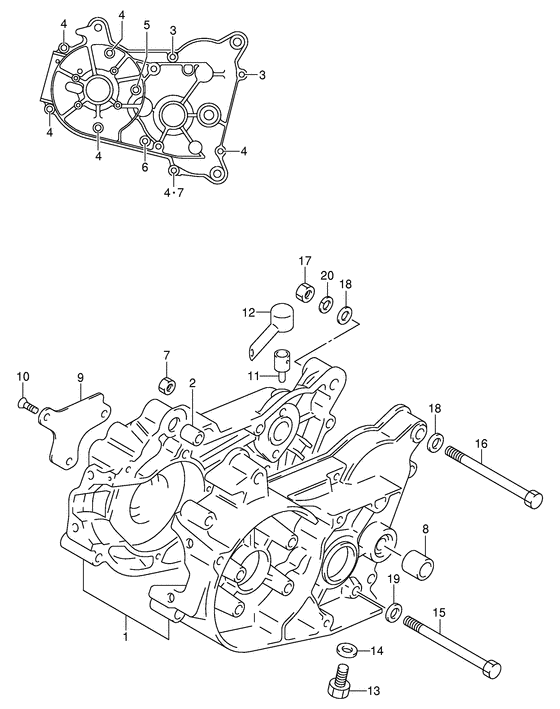

Crankcase Diagram Suzuki JR50
- Year
- 2002
- Model code
- JR50K2(P3/P28) K2
- Engine Capacity
- 50
- Model
- JR50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11300-04843-000
Crankcase set
|
11300-04843-000 |
— | ||
| replacement | |||||
|
1
|
1
11300-04844-000 CRANKCASE SET |
11300-04844-000 |
from US $318.32 |
||
|
2
|
2
04211-11129-000 PIN |
04211-11129-000 |
from US $0.95 |
||
|
3
|
3
02112-06303-000
Screw
Screw; |
02112-06303-000 |
— | ||
| replacements | |||||
|
3
|
3
02112-0630B-000 SCREWScrew; |
02112-0630B-000 |
US $0.76 |
||
|
3
|
3
02112-0630A-000 SCREWScrew; |
02112-0630A-000 |
from US $0.80 |
||
|
4
|
4
02112-06353-000
Screw
Screw; |
02112-06353-000 |
— | ||
| replacement | |||||
|
4
|
4
02112-0635B-000 SCREWScrew; |
02112-0635B-000 |
from US $0.77 |
||
|
5
|
5
02112-06403-000
Screw
|
02112-06403-000 |
— | ||
| replacements | |||||
|
5
|
5
02112-0640B-000 SCREW |
02112-0640B-000 |
US $0.80 |
||
|
5
|
5
02112-0640A-000 SCREW |
02112-0640A-000 |
from US $0.80 |
||
|
6
|
6
02112-06553-000
Screw
|
02112-06553-000 |
— | ||
| replacement | |||||
|
6
|
6
02112-0655B-000 SCREW |
02112-0655B-000 |
from US $1.51 |
||
|
7
|
7
08310-00063-000
Nut
|
08310-00063-000 |
— | ||
| replacements | |||||
|
7
|
7
08310-0006B-000 NUTNut gear shift link rod |
08310-0006B-000 |
from US $0.76 |
||
|
7
|
7
08310-0006A-000 NUT |
08310-0006A-000 |
from US $0.76 |
||
|
8
|
8
09304-10005-000 BUSHBush, counter shaft Bush, counter shaft; |
09304-10005-000 |
from US $7.70 |
||
|
9
|
9
12521-04000-000 PLATE,OIL RESERVOIR |
12521-04000-000 |
US $5.70 |
||
|
10
|
10
02122-04103-000
Screw
|
02122-04103-000 |
— | ||
| replacement | |||||
|
10
|
10
02122-0410A-000 SCREWScrew (4x10) |
02122-0410A-000 |
from US $0.80 |
||
|
11
|
11
24821-09001-000 PLUG,T/M BREATHERPlug, breather |
24821-09001-000 |
from US $3.04 |
||
|
12
|
12
24822-20000-000
GASKET
|
24822-20000-000 |
— | ||
| replacement | |||||
|
12
|
12
24822-20001-000 Gasket |
24822-20001-000 |
from US $5.05 |
||
|
13
|
13
09247-10001-000 PLUGPlug, oil drain Plug, oil drain; Model y/k1 |
09247-10001-000 |
from US $3.03 |
||
|
13
|
13
09247-10008-000 PLUG(10X12)Plug, drain Plug, oil drain; Model k2/k3/k4 |
09247-10008-000 |
from US $1.52 |
||
|
14
|
14
09168-10002-000 GASKET(10X14X3.6)Gasket |
09168-10002-000 |
from US $1.67 |
||
|
15
|
15
01500-08903-000
Bolt
Model y/k1/k2/k3 |
01500-08903-000 |
— | ||
| replacement | |||||
|
15
|
15
01500-0890B-000 BoltModel y/k1/k2/k3 |
01500-0890B-000 |
from US $5.29 |
||
|
15
|
15
09103-08397-000
Bolt
Model k4 |
09103-08397-000 |
— | ||
| replacement | |||||
|
15
|
15
09103-08016-000 BOLT(8X80)Bolt, lower Model k4 |
09103-08016-000 |
from US $25.80 |
||
|
16
|
16
01500-08703-000
Bolt
Model y/k1/k2/k3 |
01500-08703-000 |
— | ||
| replacement | |||||
|
16
|
16
01500-0870B-000 BOLTModel y/k1/k2/k3 |
01500-0870B-000 |
from US $3.35 |
||
|
16
|
16
09103-08099-000 BOLT(8X70)Model k4 |
09103-08099-000 |
from US $8.91 |
||
|
17
|
17
08310-00083-000
Nut
Model y/k1/k2/k3 |
08310-00083-000 |
— | ||
| replacements | |||||
|
17
|
17
08310-0008B-000 NUTModel y/k1/k2/k3 |
08310-0008B-000 |
from US $0.80 |
||
|
17
|
17
08310-0008A-000 NUTNut, bead stopper Model y/k1/k2/k3 |
08310-0008A-000 |
from US $0.76 |
||
|
17
|
17
08319-31088-000
Nut
Nut; Model k4 |
08319-31088-000 |
— | ||
| replacement | |||||
|
17
|
17
08319-3108A-000 NUTNut; Model k4 |
08319-3108A-000 |
from US $1.67 |
||
|
18
|
18
08322-01083-000
WASHER
Washer; |
08322-01083-000 |
— | ||
| replacements | |||||
|
18
|
18
08322-0108B-000 WASHERWasher; |
08322-0108B-000 |
from US $0.80 |
||
|
18
|
18
08322-0108A-000 WASHERWasher; |
08322-0108A-000 |
from US $0.80 |
||
|
19
|
19
09160-08128-000 WASHER(8.5X22X3.2) |
09160-08128-000 |
from US $3.83 |
||
|
20
|
20
08321-01083-000
Lock washer
Lock washer; |
08321-01083-000 |
— | ||
| replacements | |||||
|
20
|
20
08321-0108B-000 WASHER,LOCKLock washer; |
08321-0108B-000 |
from US $0.76 |
||
|
20
|
20
08321-0108A-000 WASHER,LOCKLock washer; |
08321-0108A-000 |
from US $0.80 |
||
