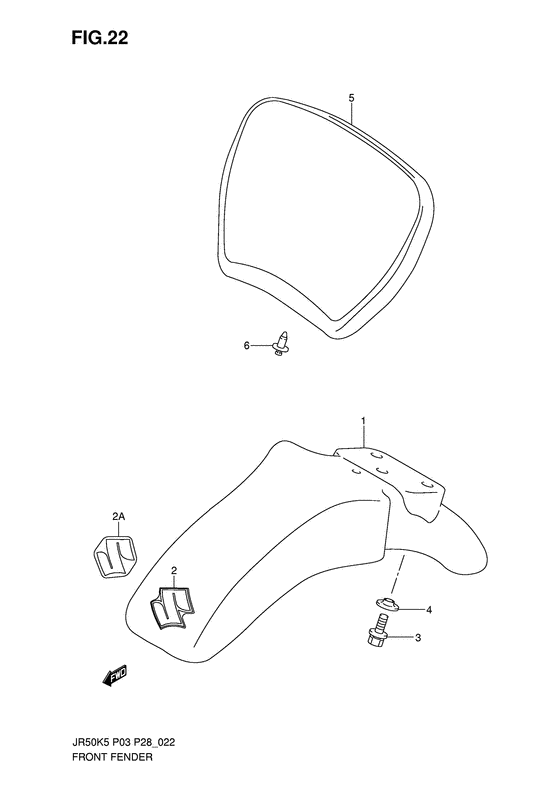

Front fender Diagram Suzuki JR50
- Year
- 2006
- Model code
- JR50K6(P3/P28) K6
- Engine Capacity
- 50
- Model
- JR50
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
53111-09AA0-YU1 FENDER,FRFender, front (yellow); |
53111-09AA0-YU1 |
US $49.16 |
||
|
2
|
2
68151-03B00-AZT EMBLEM,SEmblem, "s"; Model k5 |
68151-03B00-AZT |
from US $21.77 |
||
|
2A
|
2A
68151-03B10-CFM EMBLEM,SEmblem, "s"; Model k6 |
68151-03B10-CFM |
from US $10.82 |
||
|
3
|
3
09116-06170-000 BOLT(6X16) |
09116-06170-000 |
from US $0.80 |
||
|
4
|
4
09169-06073-000 WASHERWasher; |
09169-06073-000 |
from US $1.67 |
||
|
5
|
5
94911-09AA0-30H PLATE,NUMBER FRPlate, front number (white); |
94911-09AA0-30H |
US $27.78 |
||
|
6
|
6
09409-06314-5PK CLIP(BLACK)Clip (black); |
09409-06314-5PK |
from US $1.42 |
