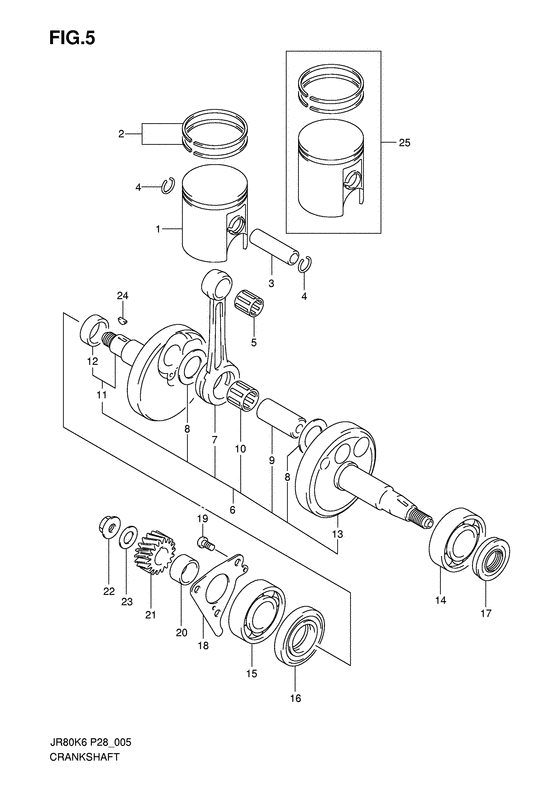

Crankshaft Diagram Suzuki JR80
- Year
- 2006
- Model code
- JR80K6(P28) K6
- Engine Capacity
- 80
- Model
- JR80
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
12110-46411-000 PISTONPiston (std); |
12110-46411-000 |
US $69.55 |
||
|
2
|
2
12140-25631-000 RING SET,PISTONRing set, piston (std); |
12140-25631-000 |
from US $42.72 |
||
|
2
|
2
12140-25631-050 RING SET,PISTON(OS:0.50)Piston ring set (os:0.5) Ring set, piston (os:0.5); Opt |
12140-25631-050 |
US $47.07 |
||
|
2
|
2
12140-28630-000 RING SET,PISTONPiston ring set (os:1.0) Ring set, piston (os:1.0); Opt |
12140-28630-000 |
from US $44.80 |
||
|
3
|
3
12151-35400-000 PIN,PISTON |
12151-35400-000 |
from US $7.45 |
||
|
4
|
4
09381-12001-000 RING,SNAPCirclip |
09381-12001-000 |
from US $1.12 |
||
|
5
|
5
09263-12023-000 BEARING(12X16X16)Bearing (12x16x15.8) Bearing (12x16x15.8); |
09263-12023-000 |
from US $5.62 |
||
|
6
|
6
12200-46412-000 CRANKSHAFT ASSY |
12200-46412-000 |
US $733.60 |
||
|
7
|
7
12161-14001-000 ROD,CONNECTINGRod, connecting |
12161-14001-000 |
from US $70.40 |
||
|
8
|
8
09160-17022-000 WASHER(17X29X1)Washer |
09160-17022-000 |
from US $2.88 |
||
|
9
|
9
12211-46000-000 PIN,CRANKPin, crank |
12211-46000-000 |
from US $22.88 |
||
|
10
|
10
09263-17016-000 BEARING(17X23X14)Bearing, crank pin Bearing (17.7x22.9x14); |
09263-17016-000 |
from US $12.64 |
||
|
11
|
11
12220-46810-000
CRANKSHAFT,R
|
12220-46810-000 |
— | ||
|
12
|
12
09180-20021-000 SPACER(20X26X9)Spacer, rh Spacer, rh; |
09180-20021-000 |
from US $6.56 |
||
|
13
|
13
12261-46411-000
CRANKSHAFT,L
|
12261-46411-000 |
— | ||
|
14
|
14
09262-20048-000 BEARING(20X47X14)Bearing, lh (20x47x14); |
09262-20048-000 |
from US $10.88 |
||
|
15
|
15
09262-20141-000 BEARING(20X47X14)Bearing, rh (20x47x14); |
09262-20141-000 |
US $37.21 |
||
|
16
|
16
09283-26015-000 SEAL,OIL(26X47X7.3)Oil seal, lh Oil seal, rh (26x47x7.3); |
09283-26015-000 |
from US $4.80 |
||
|
17
|
17
09283-20034-000 SEAL,OIL(19.6X37X8)Oil seal (20x37x8) Oil seal, lh (20x37x8); |
09283-20034-000 |
from US $3.74 |
||
|
18
|
18
12541-46001-000 RETAINER,CRANKSHAFT BEARING,RRetainer, bearing rh Retainer, bearing rh; |
12541-46001-000 |
from US $3.97 |
||
|
19
|
19
02112-06123-000
Screw, breather cover
Screw; |
02112-06123-000 |
— | ||
| replacements | |||||
|
19
|
19
02112-0612B-000 SCREWScrew, oil guide plate Screw; |
02112-0612B-000 |
from US $0.76 |
||
|
19
|
19
02112-0612A-000 SCREWScrew; |
02112-0612A-000 |
from US $0.76 |
||
|
20
|
20
09180-20059-000 SPACER(20X26X14)Spacer (20x16x14) |
09180-20059-000 |
from US $5.12 |
||
|
21
|
21
21111-46000-000 GEAR,PRIMARY DRIVE NO.19Gear, primary drive (nt:19) Gear, primary drive (nt:19); |
21111-46000-000 |
from US $32.80 |
||
|
22
|
22
09159-12005-000 NUTNut |
09159-12005-000 |
from US $1.76 |
||
|
23
|
23
09164-12020-000 WASHERWasher; |
09164-12020-000 |
from US $1.22 |
||
|
24
|
24
08341-31039-000 KEYKey; |
08341-31039-000 |
from US $1.60 |
||
|
25
|
25
12100-46411-050 PISTON SET(OS:0.5)Piston set (os:0.5); Opt |
12100-46411-050 |
US $125.61 |
||
|
25
|
25
12100-46411-100 PISTON SET(OS:1.0)Piston set (os:1.0); Opt |
12100-46411-100 |
from US $68.45 |
||
