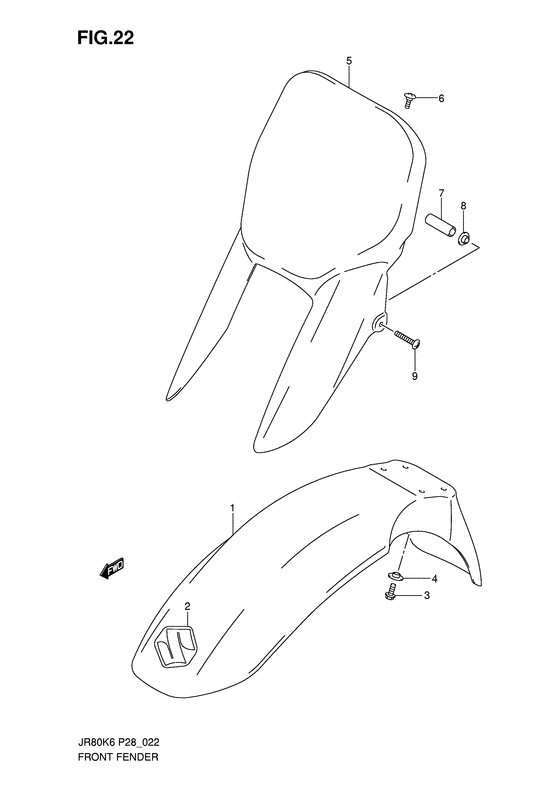

Front fender Diagram Suzuki JR80
- Year
- 2006
- Model code
- JR80K6(P28) K6
- Engine Capacity
- 80
- Model
- JR80
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
53111-034A0-YR1
Fender, front (yellow)
Fender, front (yellow); |
53111-034A0-YR1 |
— | ||
| replacement | |||||
|
1
|
1
53111-034A0-YU1 FENDER,FRFender, front (yellow); |
53111-034A0-YU1 |
US $130.92 |
||
|
2
|
2
68151-03B10-CFM EMBLEM,S |
68151-03B10-CFM |
from US $10.82 |
||
|
3
|
3
01550-06163-000
Bolt
Bolt; |
01550-06163-000 |
— | ||
| replacements | |||||
|
3
|
3
01550-0616B-000 BOLTBolt; |
01550-0616B-000 |
from US $0.76 |
||
|
3
|
3
01550-0616A-000 BOLTBolt; |
01550-0616A-000 |
from US $0.76 |
||
|
4
|
4
09169-06054-000
Washer
Washer; |
09169-06054-000 |
— | ||
| replacement | |||||
|
4
|
4
09169-06053-000 WASHERWasher; |
09169-06053-000 |
from US $0.91 |
||
|
5
|
5
94911-034B0-30H
PLATE,NUMBER FR
Plate, front number (white); |
94911-034B0-30H |
— | ||
|
6
|
6
09139-06113-000 SCREW(6X16) |
09139-06113-000 |
from US $1.44 |
||
|
7
|
7
09180-05051-000 SPACER(5.5X8X18)Spacer (5.5x8x18) Spacer, lower; |
09180-05051-000 |
from US $4.13 |
||
|
8
|
8
09169-05019-000 WASHER |
09169-05019-000 |
from US $4.49 |
||
|
9
|
9
02142-05303-000
Screw, lower
Screw, lower; |
02142-05303-000 |
— | ||
| replacement | |||||
|
9
|
9
02142-0530B-000 SCREWScrew, lower; |
02142-0530B-000 |
from US $3.55 |
||
