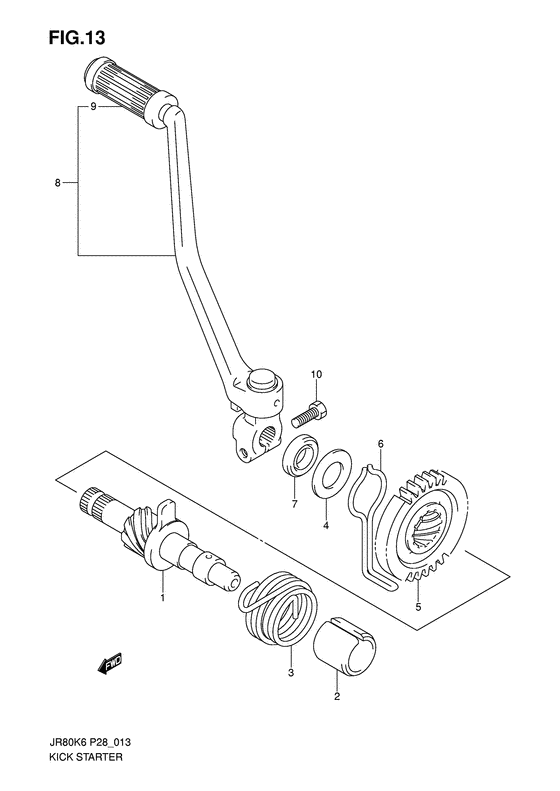

Kick starter Diagram Suzuki JR80
- Year
- 2006
- Model code
- JR80K6(P28) K6
- Engine Capacity
- 80
- Model
- JR80
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
26210-46001-000 SHAFT,KICK STARTERShaft, kick starter |
26210-46001-000 |
from US $49.28 |
||
|
2
|
2
26221-46000-000 GUIDE,KICK STARTER SFT SPRINGGuide, spring Guide, spring; |
26221-46000-000 |
from US $3.97 |
||
|
3
|
3
09448-40001-000 SPRINGSpring |
09448-40001-000 |
from US $8.60 |
||
|
4
|
4
09160-14046-000
Washer 14x29x1.
Washer (14x29x1.5); |
09160-14046-000 |
— | ||
| replacement | |||||
|
4
|
4
09160-14046-XC0 WASHER(14X29X1.5)Washer (14x29x1.5); |
09160-14046-XC0 |
from US $1.82 |
||
|
5
|
5
26241-46000-000 GEAR,KICK STARTER DRIVE(NT:30)Gear, kick drive (nt:30) Gear, kick drive (nt:30); |
26241-46000-000 |
from US $33.30 |
||
|
6
|
6
09384-28001-000 RETAINER,SNAPSpring; |
09384-28001-000 |
from US $1.12 |
||
|
7
|
7
09285-14001-000
SEAL,OIL(14X24X6)
Oil seal (14x24x6); |
09285-14001-000 |
— | ||
| replacement | |||||
|
7
|
7
09285-14002-000 Seal,oil(14X24X6)Oil seal (14x24x6); |
09285-14002-000 |
from US $18.40 |
||
|
8
|
8
26300-26420-000
LEVER ASSY,KICK STARTER
|
26300-26420-000 |
— | ||
| replacement | |||||
|
8
|
8
26300-26421-000 Lever Assy,kick Starter |
26300-26421-000 |
from US $80.80 |
||
|
9
|
9
26352-01000-000
RUBBER,KICK STARTER PEDAL
Cover; |
26352-01000-000 |
— | ||
| replacement | |||||
|
9
|
9
26352-01020-000 Rubber,kick Starter PedalCover; |
26352-01020-000 |
US $5.20 |
||
|
10
|
10
09103-06185-000 BOLT(6X20)Bolt (6x20) |
09103-06185-000 |
from US $1.12 |
||
