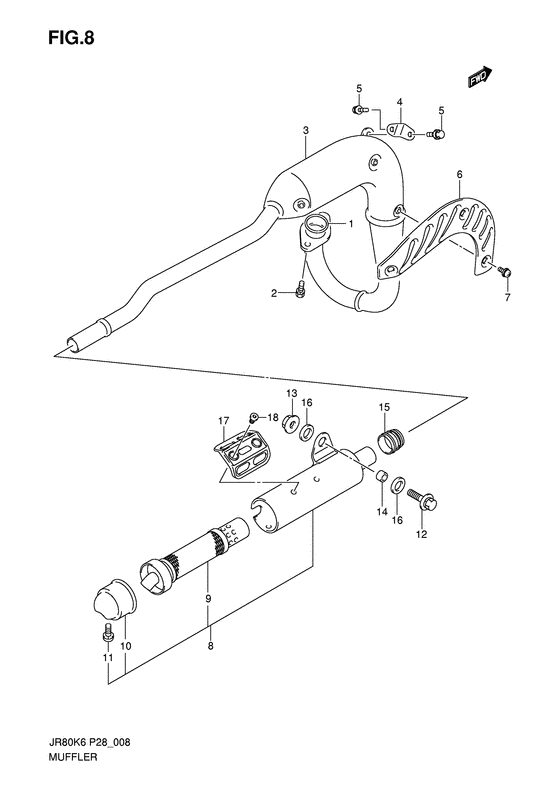

Muffler Diagram Suzuki JR80
- Year
- 2006
- Model code
- JR80K6(P28) K6
- Engine Capacity
- 80
- Model
- JR80
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
14181-18C00-000 GASKET,EXHAUSTGasket, exhaust pipe Gasket, exhaust pipe; |
14181-18C00-000 |
from US $3.92 |
||
|
2
|
2
01570-06203-000
Bolt
|
01570-06203-000 |
— | ||
| replacement | |||||
|
2
|
2
01570-0620A-000 Bolt |
01570-0620A-000 |
from US $0.80 |
||
|
3
|
3
14310-03450-H01 BODY,MUFFLER 1ST |
14310-03450-H01 |
from US $174.80 |
||
|
4
|
4
14770-20401-000
DAMPER,MUFFLER
|
14770-20401-000 |
— | ||
| replacement | |||||
|
4
|
4
14770-20402-000 Damper,muffler |
14770-20402-000 |
from US $10.38 |
||
|
5
|
5
01580-06123-000
Bolt
|
01580-06123-000 |
— | ||
| replacements | |||||
|
5
|
5
01580-0612B-000 Bolt |
01580-0612B-000 |
US $0.96 |
||
|
5
|
5
01580-0612A-000 Bolt |
01580-0612A-000 |
from US $0.91 |
||
|
6
|
6
14781-03400-000 COVER,MUFFLERCover, muffler |
14781-03400-000 |
from US $13.14 |
||
|
7
|
7
02112-76103-000
Screw
|
02112-76103-000 |
— | ||
| replacement | |||||
|
7
|
7
02112-7610A-000 SCREW |
02112-7610A-000 |
from US $3.59 |
||
|
8
|
8
14303-03450-H01 MUFFLER ASSY,2ND |
14303-03450-H01 |
US $210.19 |
||
|
9
|
9
14850-04420-000 ARRESTERArrester Tube, clean out; |
14850-04420-000 |
US $49.73 |
||
|
10
|
10
14817-03450-000 CUTTER,MUFFLER TAIL |
14817-03450-000 |
US $20.71 |
||
|
11
|
11
02112-36123-000
Screw
Screw; |
02112-36123-000 |
— | ||
| replacements | |||||
|
11
|
11
02112-3612B-000 SCREWScrew; |
02112-3612B-000 |
US $13.60 |
||
|
11
|
11
02112-3612A-000 SCREWScrew; |
02112-3612A-000 |
from US $0.80 |
||
|
12
|
12
09118-08033-000 BOLT(8X30) |
09118-08033-000 |
from US $4.76 |
||
|
13
|
13
08319-31083-000
Nut
Nut, 2nd muffler; |
08319-31083-000 |
— | ||
| replacement | |||||
|
13
|
13
08319-3108A-000 NUTNut, 2nd muffler; |
08319-3108A-000 |
from US $1.67 |
||
|
14
|
14
09180-08199-000 SPACER(8.5X14X9)Spacer (8.5x14x9) Spacer (8.5x14x9); |
09180-08199-000 |
from US $1.26 |
||
|
15
|
15
14771-48002-000 CONNECTOR,MUFFLERConnector |
14771-48002-000 |
from US $11.62 |
||
|
16
|
16
09320-14006-000 CUSHION |
09320-14006-000 |
US $4.24 |
||
| replacement | |||||
|
16
|
16
14761-03450-000 CUSHION |
14761-03450-000 |
US $2.62 |
||
|
17
|
17
14781-03450-000 COVER,2ND MUFFLER |
14781-03450-000 |
US $14.33 |
||
|
18
|
18
14789-29F01-000 SCREW |
14789-29F01-000 |
from US $2.56 |
||
