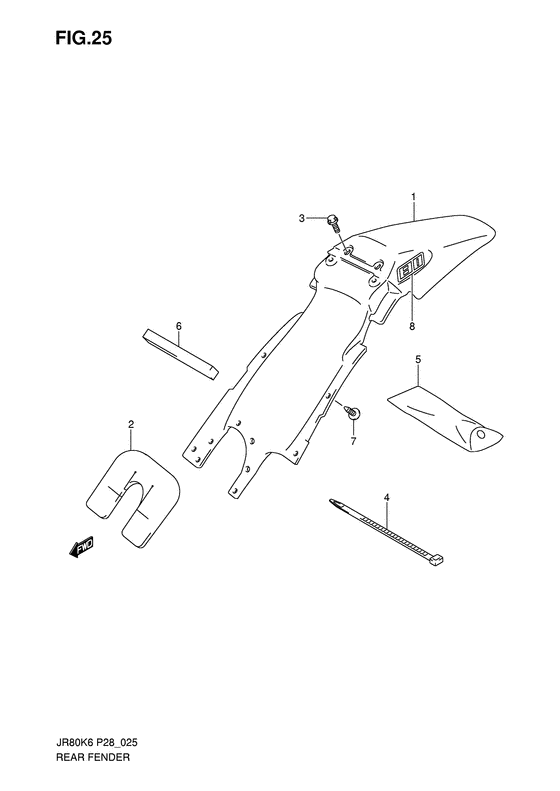

Rear fender Diagram Suzuki JR80
- Year
- 2006
- Model code
- JR80K6(P28) K6
- Engine Capacity
- 80
- Model
- JR80
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
63111-034A0-YU1 FENDER,RRFender, rear (yellow); |
63111-034A0-YU1 |
US $113.58 |
||
|
2
|
2
63411-03400-000
MUDGUARD,RR FENDER
|
63411-03400-000 |
— | ||
|
3
|
3
09139-06083-000 SCREW(6X16)Screw, front center |
09139-06083-000 |
from US $1.82 |
||
|
4
|
4
09407-25402-000 CLAMP(L:250)Clamp, tilt sw Clamp; |
09407-25402-000 |
from US $2.24 |
||
|
5
|
5
09800-21027-000 TOOL ASSYTool set |
09800-21027-000 |
from US $12.66 |
||
|
6
|
6
63191-034A0-000 CUSHION,RR FENDER |
63191-034A0-000 |
US $9.05 |
||
|
7
|
7
03541-05163-000
Screw
Screw, rear; |
03541-05163-000 |
— | ||
| replacement | |||||
|
7
|
7
03541-0516A-000 SCREWScrew, rear; |
03541-0516A-000 |
from US $0.68 |
||
|
8
|
8
68171-03400-CFL EMBLEM,RR FENDER |
68171-03400-CFL |
US $6.92 |
||
