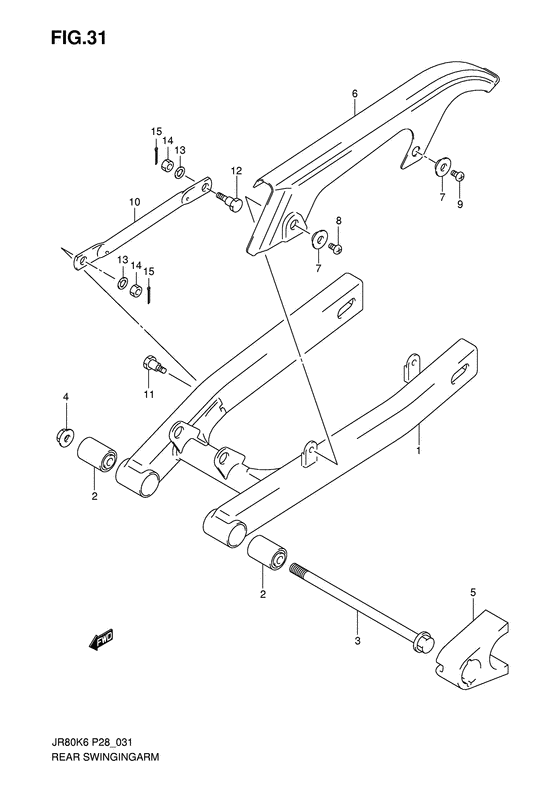

Rear swinging arm Diagram Suzuki JR80
- Year
- 2006
- Model code
- JR80K6(P28) K6
- Engine Capacity
- 80
- Model
- JR80
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
61000-03430-13L
SWINGINGARM ASSY,RR
Swinging arm assy, rear (silver); |
61000-03430-13L |
— | ||
|
2
|
2
09319-10024-000 BUSHBushing Bushing (10x23x37); |
09319-10024-000 |
from US $7.15 |
||
|
3
|
3
61211-03401-000 SHAFT,RR SWINGINGARM PIVOTShaft, pivot |
61211-03401-000 |
from US $8.28 |
||
|
4
|
4
08319-31107-000 NUT |
08319-31107-000 |
from US $1.98 |
||
|
5
|
5
61273-03400-000 BUFFER,CHAIN TOUCH DEFENSEBuffer, chain touch defense |
61273-03400-000 |
US $20.50 |
||
|
6
|
6
61311-03410-291 CASE,CHAINCase, chain (black) Case, chain (black); |
61311-03410-291 |
US $65.96 |
||
|
7
|
7
09169-06026-000 WASHERWasher; |
09169-06026-000 |
from US $1.12 |
||
|
8
|
8
02112-06103-000
Screw 6x10
Screw, front; |
02112-06103-000 |
— | ||
| replacement | |||||
|
8
|
8
02112-0610B-000 SCREWScrew, front; |
02112-0610B-000 |
from US $0.76 |
||
|
9
|
9
02112-06103-000
Screw 6x10
Screw, rear; |
02112-06103-000 |
— | ||
| replacement | |||||
|
9
|
9
02112-0610B-000 SCREWScrew, rear; |
02112-0610B-000 |
from US $0.76 |
||
|
10
|
10
64311-03400-13L TORQUELINK,RRTorque link, rear (silver) Torque link, rear (silver); |
64311-03400-13L |
from US $8.98 |
||
|
11
|
11
09111-08015-000 BOLT(8X22)Bolt, front (8x22) Bolt, torque link front (8x22); |
09111-08015-000 |
from US $1.61 |
||
|
12
|
12
09111-08013-000 BOLT(8X26.5)Bolt, rear (8x26.5) Bolt, rear brake panel (8x26.5); |
09111-08013-000 |
from US $1.67 |
||
|
13
|
13
08321-01083-000
Lock washer
Lock washer; |
08321-01083-000 |
— | ||
| replacements | |||||
|
13
|
13
08321-0108B-000 WASHER,LOCKLock washer; |
08321-0108B-000 |
from US $0.76 |
||
|
13
|
13
08321-0108A-000 WASHER,LOCKLock washer; |
08321-0108A-000 |
from US $0.80 |
||
|
14
|
14
09140-08008-000 NUTNut |
09140-08008-000 |
from US $0.91 |
||
|
15
|
15
04111-20208-000 20 x 20 cotterCotter pin Cotter pin; |
04111-20208-000 |
from US $0.80 |
||
| replacement | |||||
|
15
|
15
04111-2020A-000 PINCotter pin, rod end Cotter pin; |
04111-2020A-000 |
from US $0.76 |
||
