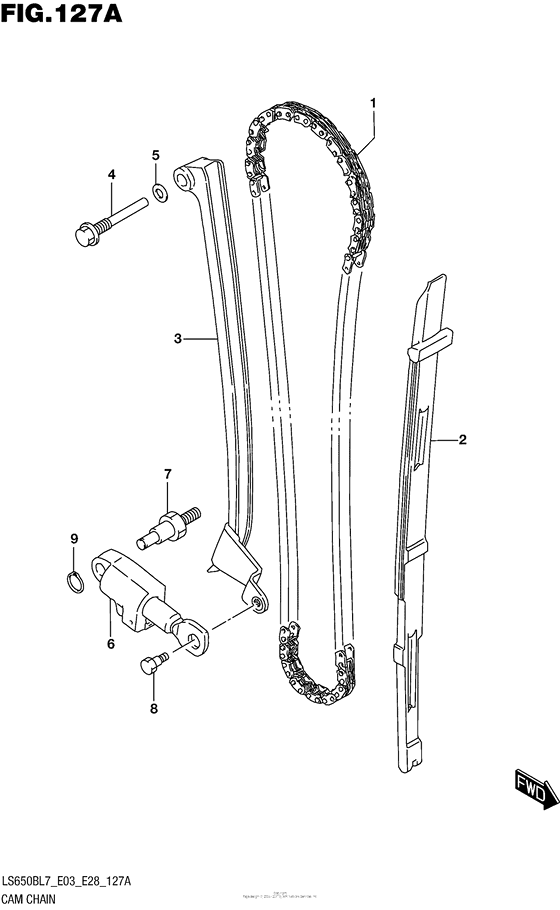

Cam Chain Diagram Suzuki LS650 Boulevard S40
- Year
- 2017
- Model code
- LS650BL7
- Sales region
- USA/ Canada
- Engine Capacity
- 650
- Model
- Boulevard S40
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
12760-24B10-000 CHAIN,CAM SHAFT DRIVE |
12760-24B10-000 |
US $147.37 |
||
|
2
|
2
12771-24B01-000 GUIDE,CAM CHAINGuide, cam chain |
12771-24B01-000 |
from US $43.12 |
||
|
3
|
3
12811-24B00-000 TENSIONER,CAM CHAINTensioner, cam chain |
12811-24B00-000 |
from US $63.08 |
||
|
4
|
4
12812-24B00-000 BOLT,CAM CHAIN TENSIONERBolt |
12812-24B00-000 |
from US $3.46 |
||
|
5
|
5
09168-08016-000 GASKET(8.2X14X1)Gasket (8.2x14x1.0) |
09168-08016-000 |
from US $1.22 |
||
|
6
|
6
12830-24B01-000 ADJUSTER ASSY,TENSIONER |
12830-24B01-000 |
from US $73.72 |
||
|
7
|
7
09108-08194-000 BOLT,STUD |
09108-08194-000 |
from US $10.34 |
||
|
8
|
8
09119-06069-000 Bolt |
09119-06069-000 |
from US $1.34 |
||
|
9
|
9
08331-31089-000 CIRCLIP |
08331-31089-000 |
from US $0.76 |
