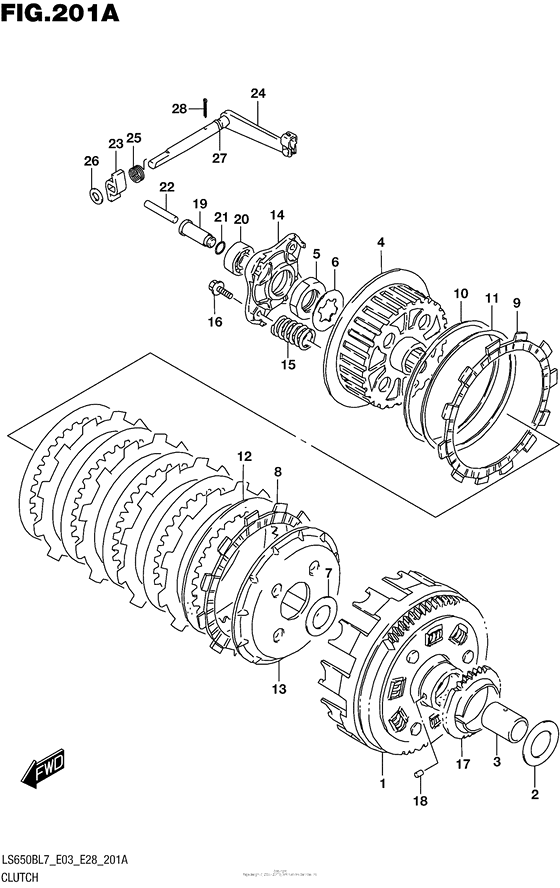

Clutch Diagram Suzuki LS650 Boulevard S40
- Year
- 2017
- Model code
- LS650BL7
- Sales region
- USA/ Canada
- Engine Capacity
- 650
- Model
- Boulevard S40
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
21200-24B12-000 GEAR ASSY,PRI DRIVEN |
21200-24B12-000 |
from US $213.44 |
||
|
2
|
2
08211-22443-000 WASHERWasher |
08211-22443-000 |
from US $5.78 |
||
|
3
|
3
09180-22023-000 SPACER(22X28X32.5) |
09180-22023-000 |
from US $28.82 |
||
|
4
|
4
21411-37401-000 HUB,CLUTCH SLEEVEHub, sleeve |
21411-37401-000 |
from US $113.52 |
||
|
5
|
5
09140-22009-000 NUTNut |
09140-22009-000 |
from US $10.13 |
||
|
6
|
6
09167-22005-000 WASHER,LOCKLock washer |
09167-22005-000 |
from US $1.98 |
||
|
7
|
7
08211-22403-000 WASHERWasher, 1st driven gr,rh |
08211-22403-000 |
from US $6.82 |
||
|
8
|
8
21441-37400-000 Plate,clutch DrivePlate,drive (id:116) |
21441-37400-000 |
from US $14.90 |
||
|
9
|
9
21442-37401-000 PLATE,CLUTCH DRIVE(T:3.5)Plate, drive (id:120) |
21442-37401-000 |
from US $15.26 |
||
|
10
|
10
21471-37400-000 SEAT,WAVE WASHER(T:1.4)Seat,wave washer (t:1.4) |
21471-37400-000 |
from US $4.56 |
||
|
11
|
11
09164-00004-000 WASHERWave washer |
09164-00004-000 |
from US $8.93 |
||
|
12
|
12
21451-14A00-000 PLATE,CLUTCH DRIVEN(T:1.6)Plate, driven |
21451-14A00-000 |
from US $7.83 |
||
|
13
|
13
21462-37400-000 DISC,CLUTCH PRESSUREDisk, pressure |
21462-37400-000 |
from US $51.92 |
||
|
14
|
14
21465-37400-000 PLATE,RELEASEPlate, release |
21465-37400-000 |
from US $9.64 |
||
|
15
|
15
09440-20016-000 SPRING |
09440-20016-000 |
from US $2.58 |
||
|
16
|
16
01550-0620A-000 BOLT |
01550-0620A-000 |
from US $0.76 |
||
|
17
|
17
16321-24B00-000 GEAR,ENG OIL PUMP DRIVEGear, oil pump drive (nt:30) |
16321-24B00-000 |
from US $30.18 |
||
|
18
|
18
09261-06002-000 PIN(6X6) |
09261-06002-000 |
from US $0.91 |
||
|
19
|
19
23121-24B02-000 PIECE,CLUTCH PUSHPiece, clutch push |
23121-24B02-000 |
from US $9.64 |
||
|
20
|
20
09262-12001-000 BEARING(12X28X8) |
09262-12001-000 |
from US $10.64 |
||
|
21
|
21
09280-09005-000 O RING(D:1.9,ID:8.6) |
09280-09005-000 |
from US $1.67 |
||
|
22-1
|
22-1
23111-24B00-445 ROD,CLUTCH PUSHRod, clutch push |
23111-24B00-445 |
from US $3.72 |
||
|
22-2
|
22-2
23111-24B00-455 ROD,CLUTCH PUSHRod, clutch push |
23111-24B00-455 |
from US $3.72 |
||
|
22-3
|
22-3
23111-24B00-465 ROD,CLUTCH PUSHRod, clutch push |
23111-24B00-465 |
from US $3.72 |
||
|
23
|
23
23263-24B01-000 CAM,CLUTCH RELEASECam, release |
23263-24B01-000 |
from US $8.64 |
||
|
24
|
24
23270-24B03-000 ARM ASSY,CLUTCH RELEASEArm, release |
23270-24B03-000 |
from US $60.35 |
||
|
25
|
25
09448-13010-000 SPRING |
09448-13010-000 |
from US $3.96 |
||
|
26
|
26
09181-10111-000 SHIM(10X14X1)Shim (t:1.0) |
09181-10111-000 |
from US $1.87 |
||
|
27
|
27
09280-07004-000 O RING(D:1.9,ID:6.8) |
09280-07004-000 |
from US $1.28 |
||
|
28
|
28
04111-2020A-000 PINCotter pin, rod end |
04111-2020A-000 |
from US $0.76 |
