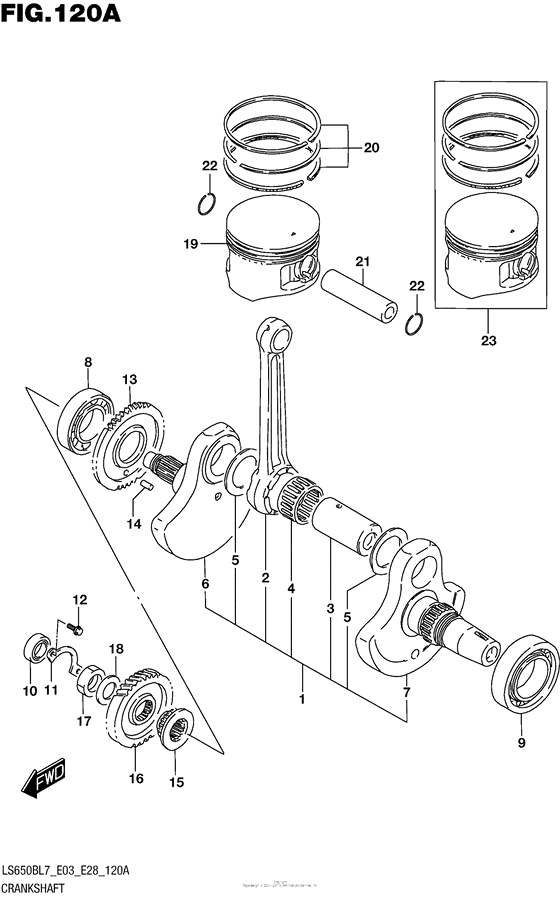

Crankshaft Diagram Suzuki LS650 Boulevard S40
- Year
- 2017
- Model code
- LS650BL7
- Sales region
- USA/ Canada
- Engine Capacity
- 650
- Model
- Boulevard S40
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
12200-24B05-000 CRANKSHAFT ASSY |
12200-24B05-000 |
from US $670.60 |
||
|
2
|
2
12161-24B01-0C0 ROD,CONNECTINGRod, connecting |
12161-24B01-0C0 |
from US $179.10 |
||
|
3
|
3
12210-24B01-0A0 PIN,CRANKPin, crank |
12210-24B01-0A0 |
from US $48 |
||
|
4-1
|
4-1
09263-37004-0B0 BEARING(37X47X25)Bearing, crank pin |
09263-37004-0B0 |
from US $25.09 |
||
|
4-2
|
4-2
09263-37004-0C0 BEARING(37X47X25)Bearing (37x47x25) |
09263-37004-0C0 |
from US $20.52 |
||
|
5
|
5
09160-37006-000 WASHER(37X55X1)Washer (37x55x1) |
09160-37006-000 |
from US $6.23 |
||
|
6
|
6
12221-24B02-000 CRANKSHAFT,RCrankshaft, rh |
12221-24B02-000 |
from US $231.84 |
||
|
7
|
7
12261-24B02-000 CRANKSHAFT,L |
12261-24B02-000 |
US $231.84 |
||
|
8
|
8
09262-35038-000 BEARING(35X72X17)Bearing, lh (35x72x17) |
09262-35038-000 |
from US $22.04 |
||
|
9
|
9
09264-40002-000 BEARING(40X80X18)Bearing, lh (40x80x18) |
09264-40002-000 |
from US $84.64 |
||
|
10
|
10
09282-16002-000 SEAL,OIL(16X30X6) |
09282-16002-000 |
from US $7.45 |
||
|
11
|
11
12548-24B00-000 RETAINER,CRANKSHAFT OIL SEAL,RPlate, rh |
12548-24B00-000 |
from US $2.56 |
||
|
12
|
12
01547-0508A-000 Bolt |
01547-0508A-000 |
US $11.80 |
||
|
13
|
13
12661-24B00-000 GEAR,CRANK BALANCER DRIVEGear, balancer drive |
12661-24B00-000 |
from US $79.49 |
||
|
14
|
14
04221-08149-000 PIN |
04221-08149-000 |
from US $3.09 |
||
|
15
|
15
12731-24B00-000 SPROCKET,CAM CHAIN DRIVESprocket, cam chain drive |
12731-24B00-000 |
from US $33.44 |
||
|
16
|
16
21111-24B10-000 GEAR,PRIMARY DRIVEGear, primary drive (nt:37) |
21111-24B10-000 |
from US $64.40 |
||
|
17
|
17
09140-20013-000 NUTNut |
09140-20013-000 |
from US $2.52 |
||
|
18
|
18
09164-20003-000 WASHER |
09164-20003-000 |
from US $5.24 |
||
|
19
|
19
12111-24B01-0F0 PISTON |
12111-24B01-0F0 |
from US $103.20 |
||
|
20
|
20
12140-14A32-000 RING SET,PISTON |
12140-14A32-000 |
from US $61.85 |
||
|
21
|
21
12151-14A01-000 PIN,PISTONPin, piston |
12151-14A01-000 |
from US $19.76 |
||
|
22
|
22
09381-23003-000 CIRCLIP |
09381-23003-000 |
from US $0.91 |
||
|
23
|
23
12100-24B00-050 PISTON SET(OS:0.5)Piston set (os:0.5) |
12100-24B00-050 |
US $228.46 |
