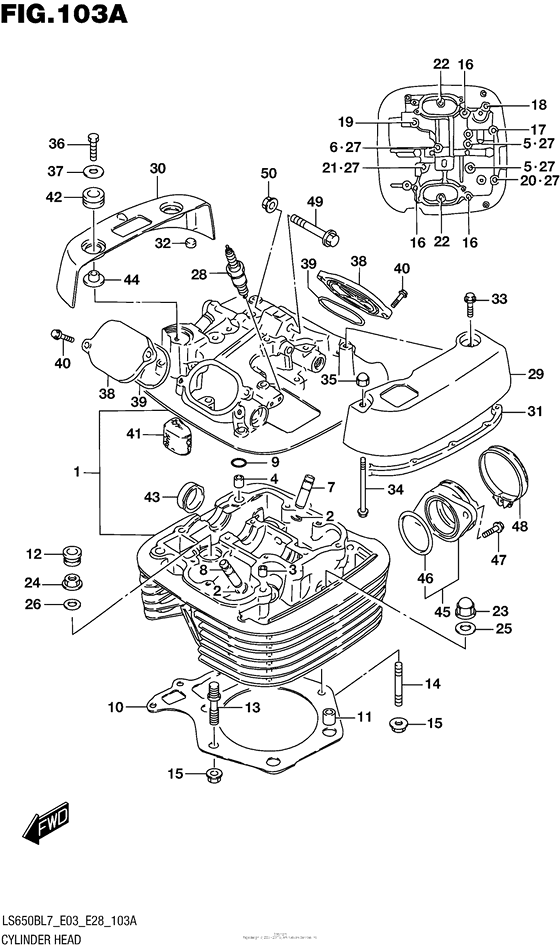

Cylinder head Diagram Suzuki LS650 Boulevard S40
- Year
- 2017
- Model code
- LS650BL7
- Sales region
- USA/ Canada
- Engine Capacity
- 650
- Model
- Boulevard S40
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11100-24B10-000 HEAD ASSY,CYLINDER |
11100-24B10-000 |
from US $784.96 |
||
|
2
|
2
09381-10003-000 RING,SNAPRing, valve guide |
09381-10003-000 |
from US $1.76 |
||
|
3
|
3
09206-08001-000 PIN(8X11) |
09206-08001-000 |
from US $1.06 |
||
|
4
|
4
09206-11004-000 PIN(8.4X11X14)Pin, gear case no.2 |
09206-11004-000 |
from US $5.17 |
||
|
5
|
5
09103-06064-000 BOLT(6X60) |
09103-06064-000 |
from US $1.52 |
||
|
6
|
6
09103-06103-000 BOLT(6X70) |
09103-06103-000 |
from US $1.52 |
||
|
7
|
7
11115-44B70-000 GUIDE,VALVE |
11115-44B70-000 |
from US $23.76 |
||
|
8
|
8
11115-37470-000 GUIDE,VALVE |
11115-37470-000 |
from US $19.20 |
||
|
9
|
9
11178-24B00-000 O RING,CYL HEAD COVERO ring, cylinder head cover |
11178-24B00-000 |
from US $1.52 |
||
|
10
|
10
11141-24B03-000 GASKET,CYLINDER HEAD |
11141-24B03-000 |
from US $27.36 |
||
|
11
|
11
04211-13189-000 PIN |
04211-13189-000 |
from US $1.19 |
||
|
12
|
12
11145-37401-000 CAP,CYLINDER HEAD SEAL |
11145-37401-000 |
from US $12.92 |
||
|
13
|
13
09108-08205-000 BOLT,STUDStud bolt (m8/12) |
09108-08205-000 |
from US $16.56 |
||
|
14
|
14
09108-08206-000 BOLT,STUD(8X31)Stud bolt (l:18) |
09108-08206-000 |
from US $4.59 |
||
|
15
|
15
08316-1008A-000 NUTNut, idle gear shaft |
08316-1008A-000 |
from US $0.76 |
||
|
16
|
16
09103-06026-000 BOLT(6X39)Bolt (6x39) |
09103-06026-000 |
from US $0.95 |
||
|
17
|
17
09103-06033-000 BOLT(6X125)Bolt (6*125) |
09103-06033-000 |
from US $6.26 |
||
|
18
|
18
09103-06052-000 BOLT(6X115)Bolt (6x115) |
09103-06052-000 |
from US $6.38 |
||
|
19
|
19
09103-06064-000 BOLT(6X60) |
09103-06064-000 |
from US $1.52 |
||
|
20
|
20
09103-06085-000 BOLT(6X130) |
09103-06085-000 |
from US $6.26 |
||
|
21
|
21
09103-06102-000 BOLT(6X55) |
09103-06102-000 |
from US $1.52 |
||
|
22
|
22
01550-0625A-000 BOLTBolt |
01550-0625A-000 |
from US $0.96 |
||
|
23
|
23
09159-09003-000 NUTNut |
09159-09003-000 |
from US $1.68 |
||
|
24
|
24
09159-09004-000 NUT |
09159-09004-000 |
from US $3.15 |
||
|
25
|
25
09168-10031-000 GASKET(10.2X20X2.3) |
09168-10031-000 |
from US $1.22 |
||
|
26
|
26
09168-10031-000 GASKET(10.2X20X2.3) |
09168-10031-000 |
from US $1.22 |
||
|
27
|
27
09168-06023-000 GASKET(5.8X13X1.2)Gasket (5.8x13x1.2) |
09168-06023-000 |
from US $1.51 |
||
|
28-1
|
28-1
09482-00334-000 PLUG,SPARK(DPR8EA-9)Spark plug (ngk,dpr8ea-9) |
09482-00334-000 |
from US $4.86 |
||
|
28-2
|
28-2
09482-00335-000 PLUG,SPARK(X24EPR-U9)Spark plug (nd,x24epr-u9) |
09482-00335-000 |
from US $7.92 |
||
|
28-3
|
28-3
09482-00354-000 SPARK PLUG (NGK DPR7EA-9) |
09482-00354-000 |
from US $5.30 |
||
|
29
|
29
11171-24B10-000 CAP,HEAD COVER L |
11171-24B10-000 |
from US $98.62 |
||
|
30
|
30
11172-24B10-000 CAP,HEAD COVER R |
11172-24B10-000 |
from US $98.62 |
||
|
31
|
31
11272-24B01-000 CUSHION,HEAD COVER CAP,L |
11272-24B01-000 |
from US $6.54 |
||
|
32
|
32
11273-24B00-000 CUSHION,R CAPCushion, head cover cap |
11273-24B00-000 |
from US $2.13 |
||
|
33
|
33
01550-0620A-000 BOLT |
01550-0620A-000 |
from US $0.76 |
||
|
34
|
34
01550-0665A-000 Bolt |
01550-0665A-000 |
from US $5.07 |
||
|
35
|
35
08313-2006A-000 NUT |
08313-2006A-000 |
from US $1.04 |
||
|
36
|
36
01500-0625A-000 BOLTBolt, gear shift arm |
01500-0625A-000 |
from US $0.80 |
||
|
37
|
37
09160-06134-000 WASHER(6.5X24X1.6)Washer, holder |
09160-06134-000 |
from US $0.96 |
||
|
38
|
38
11175-24B10-000 CAP,INSPECTION |
11175-24B10-000 |
US $9.64 |
||
|
39
|
39
09280-60004-000 O RING(D:2.4,ID:23) |
09280-60004-000 |
from US $2.89 |
||
|
40
|
40
01550-0620A-000 BOLT |
01550-0620A-000 |
from US $0.76 |
||
|
41
|
41
11186-24B02-000 SEPARATOR,OIL BREATHER COVERSeparator, oil |
11186-24B02-000 |
from US $5.92 |
||
|
42
|
42
09320-13015-000 CUSHION |
09320-13015-000 |
from US $1.92 |
||
|
43
|
43
09241-30008-000 PLUG(OD:30)Plug, cylinder head |
09241-30008-000 |
from US $8.97 |
||
|
44
|
44
09301-06007-000 BUSH |
09301-06007-000 |
from US $6.38 |
||
|
45
|
45
13101-14A10-000 PIPE ASSY,INTAKE |
13101-14A10-000 |
from US $45.60 |
||
|
46
|
46
09280-46002-000 O RING(D:2.4,ID:46.0) |
09280-46002-000 |
from US $14.16 |
||
|
47
|
47
02112-1620B-000 SCREW |
02112-1620B-000 |
from US $0.80 |
||
|
48
|
48
09402-58208-000 CLAMP |
09402-58208-000 |
from US $2.29 |
||
|
49
|
49
09103-08339-000 BOLT(8X55) |
09103-08339-000 |
from US $1.82 |
||
|
50
|
50
08319-3108A-000 NUT |
08319-3108A-000 |
from US $1.67 |
