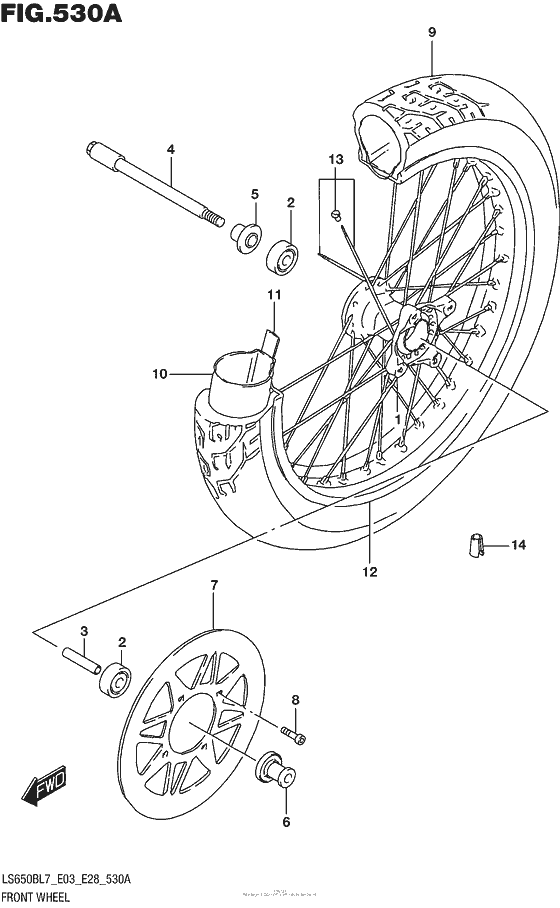

Front Wheel Diagram Suzuki LS650 Boulevard S40
- Year
- 2017
- Model code
- LS650BL7
- Sales region
- USA/ Canada
- Engine Capacity
- 650
- Model
- Boulevard S40
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
54111-24B01-000 HUB,FR WHEELHub assy, front |
54111-24B01-000 |
from US $158.24 |
||
|
2
|
2
08123-63027-000 BEARING |
08123-63027-000 |
US $25.88 |
||
| replacement | |||||
|
2
|
2
08123-6302B-000 Bearing,front Hub |
08123-6302B-000 |
from US $11.52 |
||
|
3
|
3
09180-15074-000 SPACER(15.3X21.7X56)Spacer, front hub |
09180-15074-000 |
from US $15.35 |
||
|
4
|
4
54711-24B01-000 AXLE,FR |
54711-24B01-000 |
from US $32.02 |
||
|
5
|
5
54740-24B00-000 SPACER,FR AXLE,RSpacer, axle rh |
54740-24B00-000 |
from US $10.27 |
||
|
6
|
6
54750-24B00-000 SPACER,FR AXLE,LSpacer, axle lh |
54750-24B00-000 |
from US $11.37 |
||
|
7
|
7
59211-24B20-000 DISC,FRONT BRAKE |
59211-24B20-000 |
US $360.79 |
||
|
8
|
8
09106-08049-000 BOLT(8X25.5) |
09106-08049-000 |
from US $6.29 |
||
|
9
|
9
55100-24B02-000
TIRE,FR(100/90-19 57H)
|
55100-24B02-000 |
— | ||
| replacement | |||||
|
9
|
9
55100-24B03-000 Tire,fr(100/90-19 57H) |
55100-24B03-000 |
from US $141.31 |
||
|
10
|
10
55200-44610-000 TUBETube,inner |
55200-44610-000 |
US $41.04 |
||
|
11
|
11
55261-15020-000 PROTECTOR,WHL INR TUBE FR |
55261-15020-000 |
US $5.05 |
||
|
12
|
12
55311-24B10-000 RIM,FR WHEEL(19XWM2.15) |
55311-24B10-000 |
from US $253.92 |
||
|
13
|
13
55320-24B10-000 SPOKE SET,FR WHEEL |
55320-24B10-000 |
from US $38.27 |
||
|
14-1
|
14-1
55411-26G00-000 BALANCER,WHEEL(15G) |
55411-26G00-000 |
from US $2.82 |
||
|
14-2
|
14-2
55413-41F00-000 BALANCER,WHEEL(30G)Balancer, wheel no.2 |
55413-41F00-000 |
from US $4.42 |
||
