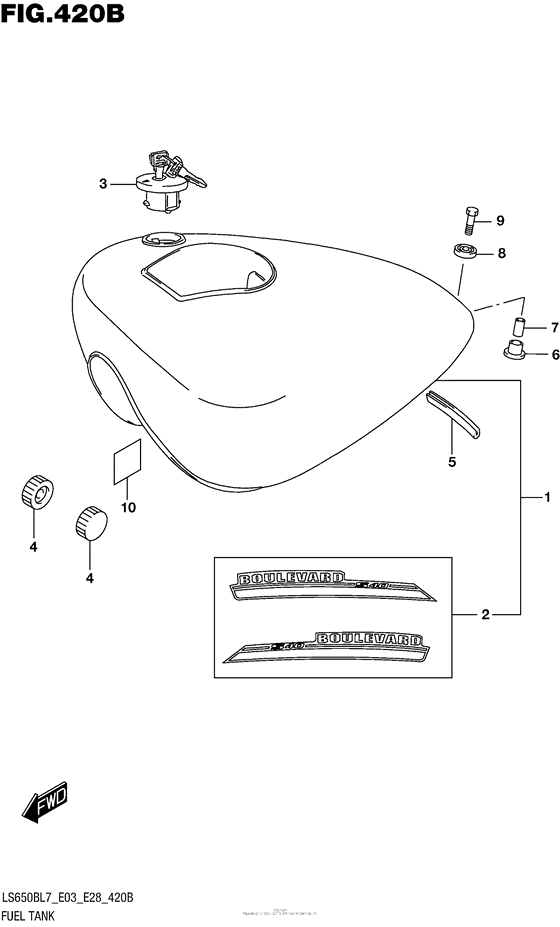

Fuel Tank (Ls650Bl7 E28) Diagram Suzuki LS650 Boulevard S40
- Year
- 2017
- Model code
- LS650BL7
- Sales region
- USA/ Canada
- Engine Capacity
- 650
- Model
- Boulevard S40
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1-1
|
1-1
44100-24C90-YUK TANK ASSY,FUEL |
44100-24C90-YUK |
from US $718.08 |
||
|
1-2
|
1-2
44100-24C90-YVB TANK ASSY,FUEL |
44100-24C90-YVB |
from US $718.08 |
||
|
2-1
|
2-1
68110-24C20-BE1 TAPE SET,FUEL TANK |
68110-24C20-BE1 |
US $44.53 |
||
|
2-2
|
2-2
68110-24C20-ELB TAPE SET,FUEL TANK |
68110-24C20-ELB |
US $44.53 |
||
|
3
|
3
44200-24860-000 CAP SET,FUEL TANK |
44200-24860-000 |
from US $138.74 |
||
|
4
|
4
09329-10016-000 CUSHIONCushion, front |
09329-10016-000 |
from US $2.08 |
||
|
5
|
5
44552-24B10-000 MOLDING,FUEL TANK REAR |
44552-24B10-000 |
from US $5.63 |
||
|
6
|
6
09320-10020-000
CUSHION
|
09320-10020-000 |
— | ||
| replacement | |||||
|
6
|
6
09320-10071-000 Cushion(9X24X18) |
09320-10071-000 |
from US $1.98 |
||
|
7
|
7
09180-06271-000 SPACER(6.5X9X18)Spacer (6.5x9x18) |
09180-06271-000 |
from US $1.51 |
||
|
8
|
8
09320-14013-000 CUSHIONCushion, rear upper |
09320-14013-000 |
from US $2.08 |
||
|
9
|
9
01500-0630A-000 Bolt |
01500-0630A-000 |
from US $0.80 |
||
|
10
|
10
44283-40H00-000 PROTECTOR,FUEL TANK |
44283-40H00-000 |
from US $2.83 |
||
