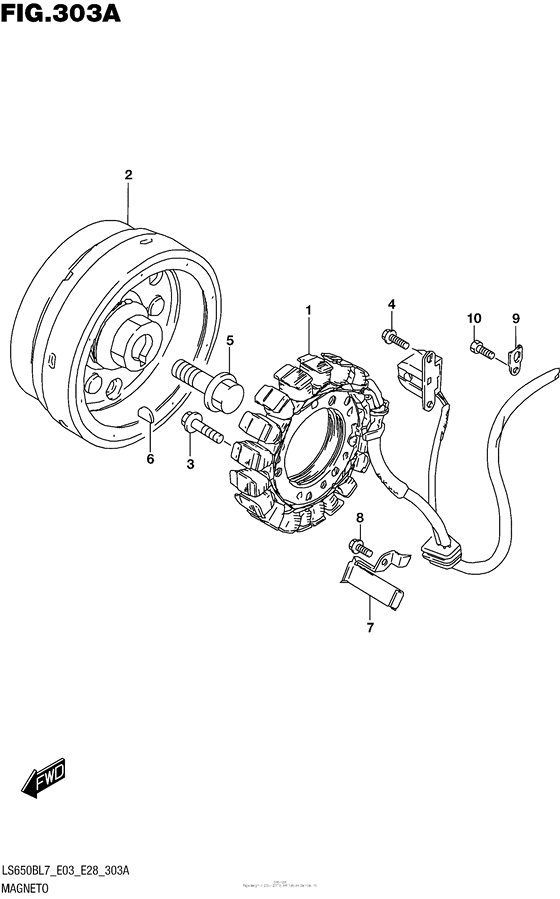

Magneto Diagram Suzuki LS650 Boulevard S40
- Year
- 2017
- Model code
- LS650BL7
- Sales region
- USA/ Canada
- Engine Capacity
- 650
- Model
- Boulevard S40
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
32101-24B02-000 STATOR ASSY |
32101-24B02-000 |
from US $401.28 |
||
|
2
|
2
32102-24B10-000 ROTOR ASSY |
32102-24B10-000 |
from US $347.98 |
||
|
3
|
3
01547-0625A-000 BOLTBolt, fr brake hose no.2 |
01547-0625A-000 |
from US $0.91 |
||
|
4
|
4
01547-0510A-000 BoltBolt (l:80) |
01547-0510A-000 |
from US $3.47 |
||
|
5
|
5
09103-14001-000 BOLT(14X43)Bolt, rotor |
09103-14001-000 |
from US $6.38 |
||
|
6
|
6
09420-05007-000 KEY |
09420-05007-000 |
from US $3.80 |
||
|
7
|
7
32371-24B00-000 CLAMP,MAGNETO LEAD WIRE NO.1Clamp, lead wire no.1 |
32371-24B00-000 |
US $2.58 |
||
|
8
|
8
01547-0510A-000 BoltBolt (l:80) |
01547-0510A-000 |
from US $3.47 |
||
|
9
|
9
31497-45000-000 CLAMP,GENERATOR LEAD WIREClamp, magneto no.1 |
31497-45000-000 |
from US $0.92 |
||
|
10
|
10
09100-05019-000 BOLT(5X10)Bolt, sensor (5x10) |
09100-05019-000 |
from US $0.91 |
