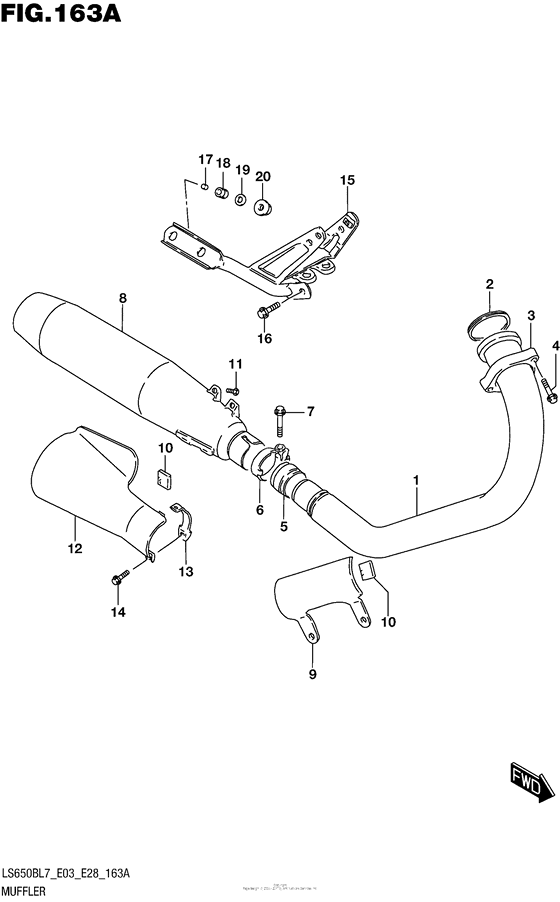

Muffler Diagram Suzuki LS650 Boulevard S40
- Year
- 2017
- Model code
- LS650BL7
- Sales region
- USA/ Canada
- Engine Capacity
- 650
- Model
- Boulevard S40
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
14150-24B01-000 PIPE,EXHAUST |
14150-24B01-000 |
from US $198.72 |
||
|
2
|
2
14181-45C00-000 GASKET,EXHAUST PIPEGasket, exhaust pipe |
14181-45C00-000 |
from US $6.08 |
||
|
3
|
3
14182-38A02-000 CLAMP,EXHAUST PIPEClamp, exhaust pipe |
14182-38A02-000 |
from US $20.98 |
||
|
4
|
4
09104-08026-000 BOLT(8X35) |
09104-08026-000 |
from US $1.82 |
||
|
5
|
5
14771-46E00-000 CONNECTOR,MUFFLER |
14771-46E00-000 |
from US $13.36 |
||
|
6
|
6
14459-14A10-000 CLAMP,MUFFLER,R(L:42.7) |
14459-14A10-000 |
from US $10.34 |
||
|
7
|
7
01550-0840A-000 BOLT |
01550-0840A-000 |
from US $1.12 |
||
|
8
|
8
14310-24B45-H01 BODY,MUFFLER |
14310-24B45-H01 |
from US $612.80 |
||
|
9
|
9
14780-24B01-000 COVER,EXHAUST PIPECover, exhaust pipe |
14780-24B01-000 |
from US $29.26 |
||
|
10
|
10
14789-24B12-000 GASKET |
14789-24B12-000 |
from US $3.97 |
||
|
11
|
11
02112-0610B-000 SCREW |
02112-0610B-000 |
from US $0.76 |
||
|
12
|
12
14790-24B00-000 COVER,MUFFLERCover, muffler |
14790-24B00-000 |
from US $60.90 |
||
|
13
|
13
14785-24B00-000 CLAMP,MUFFLER COVERClamp |
14785-24B00-000 |
from US $2.24 |
||
|
14
|
14
01550-0620A-000 BOLT |
01550-0620A-000 |
from US $0.76 |
||
|
15
|
15
14410-24B10-019 STAY,MUFFLER SUPPORT(E33) |
14410-24B10-019 |
from US $42.32 |
||
|
16
|
16
09103-08505-000 BOLT(8X20) |
09103-08505-000 |
from US $4.88 |
||
|
17
|
17
09180-08189-000 SPACER(8.5X12X11) |
09180-08189-000 |
from US $3.91 |
||
|
18
|
18
09320-12041-000 CUSHION |
09320-12041-000 |
from US $7.51 |
||
|
19
|
19
09160-08134-000 WASHER(8.5X26X1.6)Washer, muffler support front |
09160-08134-000 |
from US $0.91 |
||
|
20
|
20
08319-3108A-000 NUT |
08319-3108A-000 |
from US $1.67 |
