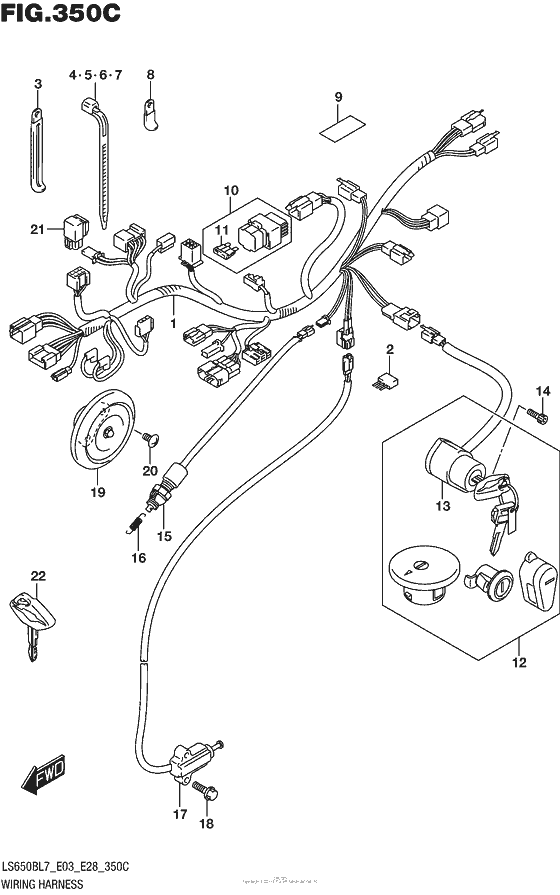

Wiring Harness (Ls650Bl7 E33) Diagram Suzuki LS650 Boulevard S40
- Year
- 2017
- Model code
- LS650BL7
- Sales region
- USA/ Canada
- Engine Capacity
- 650
- Model
- Boulevard S40
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
36610-24BD1-000 HARNESS,WIRING |
36610-24BD1-000 |
US $355.84 |
||
|
2
|
2
36611-38A10-000 DIODE |
36611-38A10-000 |
from US $7.14 |
||
|
3
|
3
09404-08419-000 CLAMP(L:80) |
09404-08419-000 |
US $12.50 |
||
| replacement | |||||
|
3
|
3
09404-08422-000 Clamp,wiring Harness |
09404-08422-000 |
from US $3.62 |
||
|
4
|
4
09407-11401-000 CLAMP(L:95)Clamp, stator lead |
09407-11401-000 |
from US $1.76 |
||
|
5
|
5
09407-14403-000 CLAMP(L:125)Clamp, spark plug cap |
09407-14403-000 |
from US $2.08 |
||
|
6
|
6
09407-18402-000 CLAMP(L:165)Clamp (l:165) |
09407-18402-000 |
from US $1.98 |
||
|
7
|
7
09407-25401-000 CLAMP(L:235)Clamp (l:235) |
09407-25401-000 |
from US $2.08 |
||
|
8
|
8
36651-24B10-000 CLAMP,WIRING HARNESS |
36651-24B10-000 |
US $1.62 |
||
|
9
|
9
36930-60A10-000 COVER |
36930-60A10-000 |
US $4.52 |
||
|
10
|
10
36740-24B01-000 BOX ASSY,FUSEBox assy, main fuse |
36740-24B01-000 |
from US $15.14 |
||
|
11
|
11
09481-20101-000 FUSE(20A) |
09481-20101-000 |
from US $3.35 |
||
|
12
|
12
37101-24860-000 LOCK SET |
37101-24860-000 |
from US $299.92 |
||
|
13
|
13
37110-24B10-000 SWITCH ASSY,IGNITION |
37110-24B10-000 |
from US $103.78 |
||
|
14
|
14
07130-0516B-000 BOLT |
07130-0516B-000 |
from US $3.35 |
||
|
15
|
15
37740-31D00-000 SWITCH ASSY,STOP LAMPSwitch assy, stop lamp |
37740-31D00-000 |
from US $20.80 |
||
|
16
|
16
09443-06077-000 SPRING |
09443-06077-000 |
from US $1.57 |
||
|
17
|
17
37840-12X50-000
SWITCH ASSY,SIDE STAND WARNING
|
37840-12X50-000 |
— | ||
| replacement | |||||
|
17
|
17
37840-12X51-000 Switch Assy,Side Stand |
37840-12X51-000 |
US $60.35 |
||
|
18
|
18
01550-0620B-000 BOLTBolt, inspection cap |
01550-0620B-000 |
from US $0.76 |
||
|
19
|
19
38500-24B00-000 HORN ASSY |
38500-24B00-000 |
from US $48.21 |
||
|
20
|
20
02142-0612B-000 SCREW |
02142-0612B-000 |
from US $0.76 |
||
|
21
|
21
38740-24X50-000 RELAY ASSYRelay, neutral start |
38740-24X50-000 |
from US $25.08 |
||
|
22-1
|
22-1
37146-38B00-000 KEY,BLANK(TYPE:C) |
37146-38B00-000 |
from US $60.33 |
||
|
22-2
|
22-2
37146-38B10-000 KEY,BLANK(TYPE:D) |
37146-38B10-000 |
from US $46.37 |
||
|
22-3
|
22-3
37146-38B20-000 KEY,BLANK(TYPE:E) |
37146-38B20-000 |
from US $46.37 |
||
|
22-4
|
22-4
37146-38B30-000 KEY,BLANK(TYPE:F) |
37146-38B30-000 |
from US $46.37 |
||
