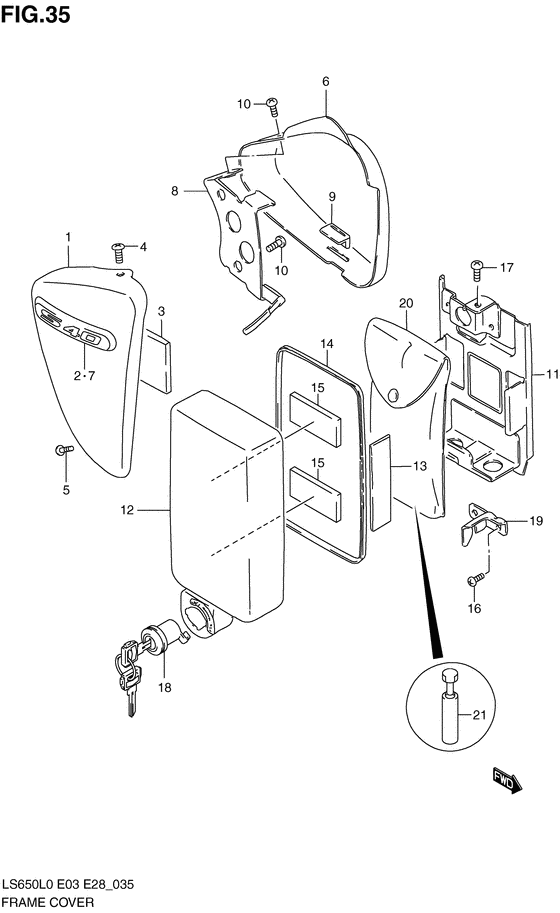

Frame cover Diagram Suzuki LS650 Boulevard S40
- Year
- 2010
- Model code
- LS650L0(E3/E28) L0
- Sales region
- USA/ Canada
- Engine Capacity
- 650
- Model
- Boulevard S40
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
47100-24CA0-YAY
COVER ASSY,FRAME,R(BLACK)
Cover, frame rh (black); |
47100-24CA0-YAY |
— | ||
| replacement | |||||
|
1
|
1
47100-24CA1-YAY COVER ASSY,FRAME,RCover, frame rh (black); |
47100-24CA1-YAY |
from US $99.49 |
||
|
1
|
1
47100-24CA0-YPA
Cover assy,frame,r
Cover, frame rh (white); For ghk |
47100-24CA0-YPA |
— | ||
| replacement | |||||
|
1
|
1
47100-24CA1-YPA
COVER ASSY,FRAME,R
Cover, frame rh (white); For ghk |
47100-24CA1-YPA |
— | ||
|
1
|
1
47100-24CA0-YRC
COVER ASSY,FRAME,R(BLUE)
Cover, frame rh (blue); For gdt |
47100-24CA0-YRC |
— | ||
|
2
|
2
68131-24CA0-000
Emblem
|
68131-24CA0-000 |
— | ||
| replacement | |||||
|
2
|
2
68131-24CA1-000 EMBLEM,FRAME COVER |
68131-24CA1-000 |
US $37.29 |
||
|
3
|
3
13719-84150-000 PADCushion |
13719-84150-000 |
from US $1.62 |
||
|
4
|
4
02142-0510B-000 SCREWBolt Screw; |
02142-0510B-000 |
from US $0.80 |
||
|
5
|
5
02112-7516B-000 SCREWScrew, lower; |
02112-7516B-000 |
from US $0.96 |
||
|
6
|
6
47200-24CA0-YAY
Cover, frame lh (black)
Cover, frame lh (black); |
47200-24CA0-YAY |
— | ||
| replacement | |||||
|
6
|
6
47200-24CA1-YAY COVER ASSY,FRAME,LCover, frame lh (black); |
47200-24CA1-YAY |
from US $120.72 |
||
|
6
|
6
47200-24CA0-YPA
Cover assy,frame,l
Cover, frame lh (white); For ghk |
47200-24CA0-YPA |
— | ||
| replacement | |||||
|
6
|
6
47200-24CA1-YPA COVER ASSY,FRAME,LCover, frame lh (white); For ghk |
47200-24CA1-YPA |
from US $122.12 |
||
|
6
|
6
47200-24CA0-YRC
COVER ASSY,FRAME,L(BLUE)
Cover, frame lh (blue); For gdt |
47200-24CA0-YRC |
— | ||
|
7
|
7
68131-24CA0-000
Emblem
|
68131-24CA0-000 |
— | ||
| replacement | |||||
|
7
|
7
68131-24CA1-000 EMBLEM,FRAME COVER |
68131-24CA1-000 |
US $37.29 |
||
|
8
|
8
47180-24B03-000 BRACKET,FRAME COVER,LBracket, frame cover lh |
47180-24B03-000 |
from US $11.68 |
||
|
9
|
9
47117-45000-000 CUSHION,FRAME COVERCushion Cushion, lh; |
47117-45000-000 |
from US $1.76 |
||
|
10
|
10
02122-0612B-000 SCREWScrew, bracket; |
02122-0612B-000 |
from US $0.77 |
||
|
11
|
11
47430-24B01-000 HOLDER,TOOLHolder, tool |
47430-24B01-000 |
from US $12.32 |
||
|
12
|
12
47440-24B20-000 COVER,TOOL HOLDER |
47440-24B20-000 |
from US $68.23 |
||
|
13
|
13
33652-38A10-000 PROTECTOR(20X90X2)Protector (20x90x2) Protector; |
33652-38A10-000 |
US $8.14 |
||
| replacement | |||||
|
13
|
13
33652-07D00-000 PROTECTOR(80X80X2)Protector (80x80x2) Protector; |
33652-07D00-000 |
from US $2.82 |
||
|
14
|
14
47445-24B00-000 MOLDINGMolding, tool holder |
47445-24B00-000 |
from US $2.24 |
||
|
15
|
15
33652-31F00-000 PROTECTOR(20X50X11)Protector (20x50x11.0) Cushion, tool holder; |
33652-31F00-000 |
from US $1.95 |
||
|
16
|
16
02142-0510B-000 SCREWBolt Screw, lower; |
02142-0510B-000 |
from US $0.80 |
||
|
17
|
17
02112-0610B-000 SCREWScrew, upper; |
02112-0610B-000 |
from US $0.76 |
||
|
18
|
18
95700-24870-000
Lock assy, tool holder
|
95700-24870-000 |
— | ||
| replacement | |||||
|
18
|
18
95700-24871-000 LOCK SET,TOOL HOLDER |
95700-24871-000 |
from US $48.40 |
||
|
19
|
19
47434-24B00-000 PLATE,TOOL HOLDER LOCKPlate, lock |
47434-24B00-000 |
from US $2.24 |
||
|
20
|
20
09800-21055-000
TOOL ASSY
|
09800-21055-000 |
— | ||
| replacement | |||||
|
20
|
20
09800-21102-000 Tool Assy |
09800-21102-000 |
US $28.88 |
||
|
21
|
21
96220-24B00-000 GAUGE ASSY,TENSIONGuage assy, tention |
96220-24B00-000 |
from US $34.96 |
||
