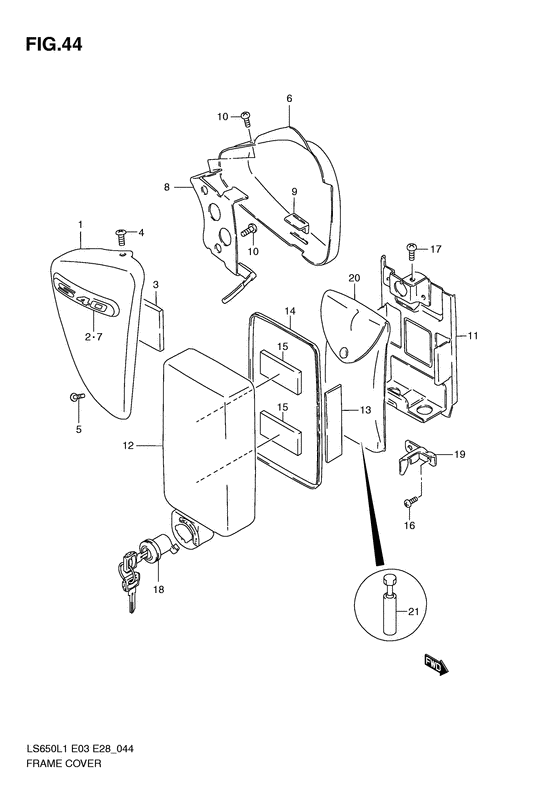

Frame cover Diagram Suzuki LS650 Boulevard S40
- Year
- 2011
- Model code
- LS650L1(E3/E28) L1
- Sales region
- USA/ Canada
- Engine Capacity
- 650
- Model
- Boulevard S40
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
47100-24CA0-YUE
Cover assy,fram
Cover assy, frame rh (silver); |
47100-24CA0-YUE |
— | ||
| replacement | |||||
|
1
|
1
47100-24CA1-YUE COVER ASSY,FRAME,RCover assy, frame rh (silver); |
47100-24CA1-YUE |
from US $194.72 |
||
|
1
|
1
47100-24CA0-YUK
Cover assy,fram
Cover assy, frame rh (orange); |
47100-24CA0-YUK |
— | ||
| replacement | |||||
|
1
|
1
47100-24CA1-YUK COVER ASSY,FRAME,RCover assy, frame rh (orange); |
47100-24CA1-YUK |
from US $244.70 |
||
|
2
|
2
68131-24CA0-000
Emblem
Emblem, frame cover; |
68131-24CA0-000 |
— | ||
| replacement | |||||
|
2
|
2
68131-24CA1-000 EMBLEM,FRAME COVEREmblem, frame cover; |
68131-24CA1-000 |
US $41.34 |
||
|
3
|
3
13719-84150-000 PADCushion Cushion frame cover rh; |
13719-84150-000 |
from US $1.62 |
||
|
4
|
4
02142-0510B-000 SCREWBolt Screw; |
02142-0510B-000 |
from US $0.72 |
||
|
5
|
5
02112-7516B-000 SCREW |
02112-7516B-000 |
from US $1.12 |
||
|
6
|
6
47200-24CA0-YUE
Cover assy,fram
Cover assy, frame lh (silver); |
47200-24CA0-YUE |
— | ||
| replacement | |||||
|
6
|
6
47200-24CA1-YUE COVER ASSY,FRAME,LCover assy, frame lh (silver); |
47200-24CA1-YUE |
from US $244.70 |
||
|
6
|
6
47200-24CA0-YUK
Cover assy,fram
Cover assy, frame lh (orange); |
47200-24CA0-YUK |
— | ||
| replacement | |||||
|
6
|
6
47200-24CA1-YUK COVER ASSY,FRAME,LCover assy, frame lh (orange); |
47200-24CA1-YUK |
from US $401.22 |
||
|
7
|
7
68131-24CA0-000
Emblem
Emblem, frame cover; |
68131-24CA0-000 |
— | ||
| replacement | |||||
|
7
|
7
68131-24CA1-000 EMBLEM,FRAME COVEREmblem, frame cover; |
68131-24CA1-000 |
US $41.34 |
||
|
8
|
8
47180-24B03-000 BRACKET,FRAME COVER,LBracket, frame cover lh |
47180-24B03-000 |
from US $11.68 |
||
|
9
|
9
47117-45000-000 CUSHION,FRAME COVERCushion Cushion, frame cover lh; |
47117-45000-000 |
from US $1.76 |
||
|
10
|
10
02122-0612B-000 SCREW |
02122-0612B-000 |
from US $0.96 |
||
|
11
|
11
47430-24B01-000 HOLDER,TOOLHolder, tool |
47430-24B01-000 |
from US $12.32 |
||
|
12
|
12
47440-24B20-000 COVER,TOOL HOLDER |
47440-24B20-000 |
from US $73.85 |
||
|
13
|
13
33652-38A10-000 PROTECTOR(20X90X2)Protector (20x90x2) Protector, battery; |
33652-38A10-000 |
US $8.14 |
||
| replacement | |||||
|
13
|
13
33652-07D00-000 PROTECTOR(80X80X2)Protector (80x80x2) Protector, battery; |
33652-07D00-000 |
from US $2.56 |
||
|
14
|
14
47445-24B00-000 MOLDINGMolding, tool holder Molding, tool holder; |
47445-24B00-000 |
from US $2.24 |
||
|
15
|
15
33652-31F00-000 PROTECTOR(20X50X11)Protector (20x50x11.0) Cushion, tool holder; |
33652-31F00-000 |
from US $1.95 |
||
|
16
|
16
02142-0510B-000 SCREWBolt Screw; |
02142-0510B-000 |
from US $0.72 |
||
|
17
|
17
02112-0610B-000 SCREW |
02112-0610B-000 |
from US $0.76 |
||
|
18
|
18
95700-24871-000 LOCK SET,TOOL HOLDER |
95700-24871-000 |
from US $48.40 |
||
|
19
|
19
47434-24B00-000 PLATE,TOOL HOLDER LOCKPlate, lock Plate, tool holder lock; |
47434-24B00-000 |
from US $2.46 |
||
|
20
|
20
09800-21055-000
TOOL ASSY
|
09800-21055-000 |
— | ||
| replacement | |||||
|
20
|
20
09800-21102-000 Tool Assy |
09800-21102-000 |
from US $27.27 |
||
|
21
|
21
96220-24B00-000 GAUGE ASSY,TENSIONGuage assy, tention |
96220-24B00-000 |
from US $34.96 |
||
