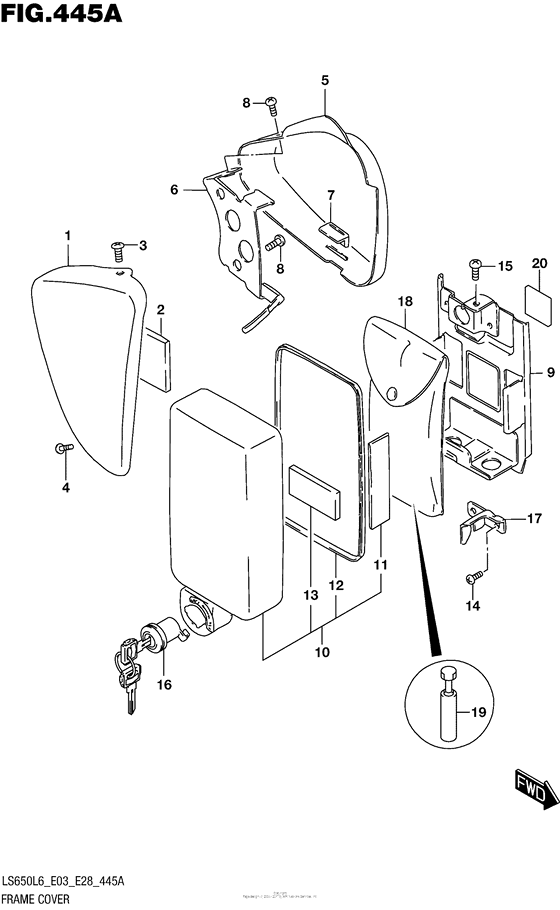

Frame Cover Diagram Suzuki LS650 Boulevard S40
- Year
- 2016
- Model code
- LS650L6
- Sales region
- USA/ Canada
- Engine Capacity
- 650
- Model
- Boulevard S40
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1-1
|
1-1
47100-24CB0-YSF COVER ASSY,FRAME,R |
47100-24CB0-YSF |
from US $126.59 |
||
|
1-2
|
1-2
47100-24CB0-YWW COVER ASSY,FRAME,R |
47100-24CB0-YWW |
from US $126.59 |
||
|
2
|
2
13719-84150-000 PADCushion |
13719-84150-000 |
from US $1.62 |
||
|
3
|
3
02142-0510B-000 SCREWBolt |
02142-0510B-000 |
from US $0.72 |
||
|
4
|
4
02112-7516B-000 SCREW |
02112-7516B-000 |
from US $1.12 |
||
|
5-1
|
5-1
47200-24CB0-YSF
COVER ASSY,FRAME,L
|
47200-24CB0-YSF |
— | ||
|
5-2
|
5-2
47200-24CB0-YWW COVER ASSY,FRAME,L |
47200-24CB0-YWW |
US $282.59 |
||
|
6
|
6
47180-24B03-000 BRACKET,FRAME COVER,LBracket, frame cover lh |
47180-24B03-000 |
from US $11.68 |
||
|
7
|
7
47117-45000-000 CUSHION,FRAME COVERCushion |
47117-45000-000 |
from US $1.76 |
||
|
8
|
8
02122-0612B-000 SCREW |
02122-0612B-000 |
from US $0.96 |
||
|
9
|
9
47430-24B01-000 HOLDER,TOOLHolder, tool |
47430-24B01-000 |
from US $12.32 |
||
|
10
|
10
47440-24B20-000 COVER,TOOL HOLDER |
47440-24B20-000 |
from US $73.85 |
||
|
11
|
11
33652-07D00-000 PROTECTOR(80X80X2)Protector (80x80x2) |
33652-07D00-000 |
from US $2.56 |
||
|
12
|
12
47445-24B00-000 MOLDINGMolding, tool holder |
47445-24B00-000 |
from US $2.24 |
||
|
13
|
13
33652-31F00-000 PROTECTOR(20X50X11)Protector (20x50x11.0) |
33652-31F00-000 |
from US $1.95 |
||
|
14
|
14
02142-0510B-000 SCREWBolt |
02142-0510B-000 |
from US $0.72 |
||
|
15
|
15
02112-0610A-000 SCREW |
02112-0610A-000 |
from US $0.77 |
||
|
16
|
16
95700-24871-000 LOCK SET,TOOL HOLDER |
95700-24871-000 |
from US $48.40 |
||
|
17
|
17
47434-24B00-000 PLATE,TOOL HOLDER LOCKPlate, lock |
47434-24B00-000 |
from US $2.46 |
||
|
18
|
18
09800-21055-000
TOOL ASSY
|
09800-21055-000 |
— | ||
| replacement | |||||
|
18
|
18
09800-21102-000 Tool Assy |
09800-21102-000 |
from US $27.27 |
||
|
19
|
19
96220-24B00-000 GAUGE ASSY,TENSIONGuage assy, tention |
96220-24B00-000 |
from US $34.96 |
||
|
20
|
20
33652-20C00-000 PROTECTOR(50X50X5) |
33652-20C00-000 |
US $4.79 |
||
| replacement | |||||
|
20
|
20
33652-20C01-000 Protector,Batte |
33652-20C01-000 |
from US $1.94 |
||
