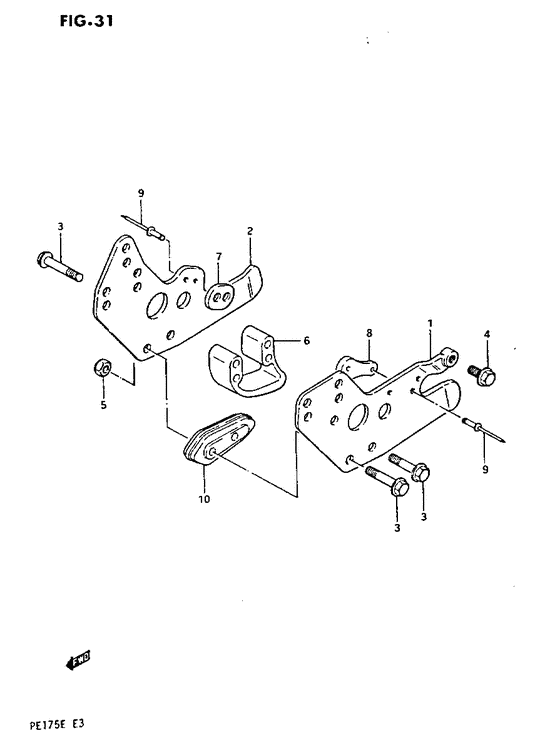

Chain guide Diagram Suzuki PE175
- Year
- 1984
- Model code
- PE175E E
- Engine Capacity
- 175
- Model
- PE175
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
61340-40512-000
Plate,outer
|
61340-40512-000 |
— | ||
|
2
|
2
61342-40512-000
Plate,inner chain guide
|
61342-40512-000 |
— | ||
|
3
|
3
01517-06408-000
Bolt
|
01517-06408-000 |
— | ||
| replacement | |||||
|
3
|
3
01550-06407-000 BOLT |
01550-06407-000 |
from US $0.91 |
||
|
4
|
4
01517-06168-000
Bolt
|
01517-06168-000 |
— | ||
| replacement | |||||
|
4
|
4
01550-06167-000 BOLT |
01550-06167-000 |
from US $0.68 |
||
|
5
|
5
08319-31067-000 NUTNut, center |
08319-31067-000 |
from US $1.44 |
||
|
6
|
6
61345-14400-000
Defence ch guid
|
61345-14400-000 |
— | ||
|
7
|
7
61349-40211-000
PAD,CHAIN GUIDE
Pad,chain guide; |
61349-40211-000 |
— | ||
|
8
|
8
61349-37200-000
Pad chain guide
|
61349-37200-000 |
— | ||
|
9
|
9
09229-03005-000
RIVET
Rivet chain guide; |
09229-03005-000 |
— | ||
|
10
|
10
61348-14110-000
DEFENSE,CHAIN GUIDE
Defense chain guide; |
61348-14110-000 |
— | ||
