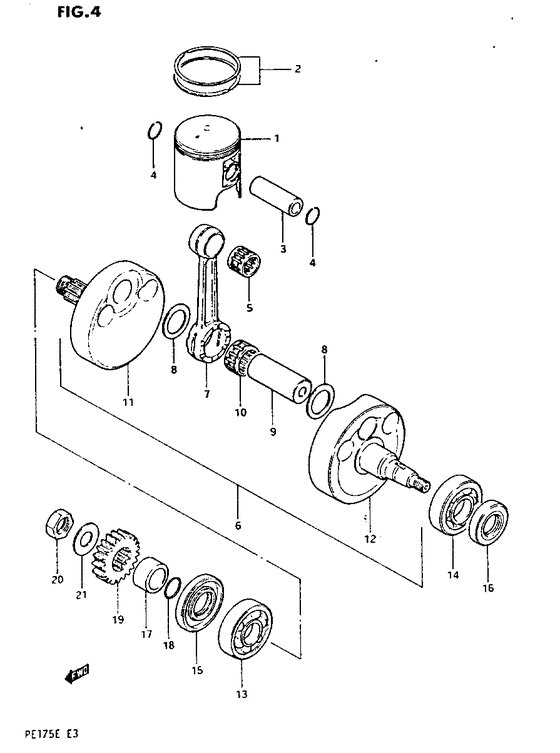

Crankshaft Diagram Suzuki PE175
- Year
- 1984
- Model code
- PE175E E
- Engine Capacity
- 175
- Model
- PE175
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
12110-40502-000
PISTON
Piston (std); |
12110-40502-000 |
— | ||
|
1
|
1
12110-40502-025
Piston os:0.25
Opt |
12110-40502-025 |
— | ||
| replacement | |||||
|
1
|
1
12103-40880-025
New Genuine Part
Opt |
12103-40880-025 |
— | ||
|
1
|
1
12110-40502-050
Piston os:0.5
Opt |
12110-40502-050 |
— | ||
| replacement | |||||
|
1
|
1
12103-40880-050 PISTON SET(OS:0.5)Opt |
12103-40880-050 |
from US $111.87 |
||
|
2
|
2
12140-40530-000 RING SET,PISTON(STD)Ring set piston std Opt |
12140-40530-000 |
from US $49.68 |
||
|
2
|
2
12140-40530-025
Ring set piston os:0.25
Opt |
12140-40530-025 |
— | ||
|
2
|
2
12140-40530-050
Ring set piston os:0.5
Pot |
12140-40530-050 |
— | ||
|
3
|
3
12151-78110-000
Pin piston
|
12151-78110-000 |
— | ||
| replacement | |||||
|
3
|
3
12151-60D00-000 PIN,PISTON |
12151-60D00-000 |
from US $19.92 |
||
|
4
|
4
09381-16001-000 RING,SNAPCirclip Piston pin circlip; |
09381-16001-000 |
from US $1.06 |
||
|
5
|
5
09263-16005-000
Rn 16x21x20 brg 13x2
|
09263-16005-000 |
— | ||
| replacement | |||||
|
5
|
5
09263-16015-000 BEARING(16X21X19.6)Bearing, piston pin |
09263-16015-000 |
from US $11.92 |
||
|
6
|
6
12200-40500-000
Crankshaft assy
|
12200-40500-000 |
— | ||
|
7
|
7
12161-41500-000 ROD,CONNECTINGConecting rod |
12161-41500-000 |
from US $71.02 |
||
|
8
|
8
09160-22010-000 WASHER(22X35X1)Thrust washer |
09160-22010-000 |
from US $6.69 |
||
|
9
|
9
12211-41500-000
Pin,crank
|
12211-41500-000 |
— | ||
| replacement | |||||
|
9
|
9
12211-29001-000 PIN,CRANKPin, crank |
12211-29001-000 |
from US $20.98 |
||
|
10
|
10
09263-22032-000 BEARING(22X28X16)Rn 22x28x16 brg 12x3 Rn 22x28x16 brg 12x3; |
09263-22032-000 |
from US $21.28 |
||
|
11
|
11
12221-40500-000
Crankshaft,rh
|
12221-40500-000 |
— | ||
|
12
|
12
12261-41501-000
Crankshaft lh
|
12261-41501-000 |
— | ||
|
13
|
13
09262-22025-000 BEARING(22X56X16)B1 22x56x16 bearing rh |
09262-22025-000 |
from US $34.96 |
||
|
14
|
14
09262-25070-0A0 BEARING(25X52X15)Bearing (25x52x15) |
09262-25070-0A0 |
from US $14.90 |
||
|
15
|
15
09289-29002-000
SEAL,OIL(29X47X8)
|
09289-29002-000 |
— | ||
|
16
|
16
09283-25066-000 SEAL,OIL(25X44X7)Oil seal, lh (25*44*7) |
09283-25066-000 |
from US $10.12 |
||
|
17
|
17
09180-20073-000
Spacer pri drive gr
|
09180-20073-000 |
— | ||
|
18
|
18
09280-20004-000 O RING(D:2.4,ID:19.8)O ring (d:2.4 id:19.8) O ring impeller; |
09280-20004-000 |
from US $0.91 |
||
|
19
|
19
21111-41500-000
Gear,primary dr
Gear,primary drive (nt:21); |
21111-41500-000 |
— | ||
|
20
|
20
09140-16002-000 NUTNut, clutch housing Nut 16mm; |
09140-16002-000 |
from US $1.76 |
||
|
21
|
21
09164-16002-000 WASHERPr dvn gear washer Pr dvn gear washer; |
09164-16002-000 |
from US $5.07 |
||
