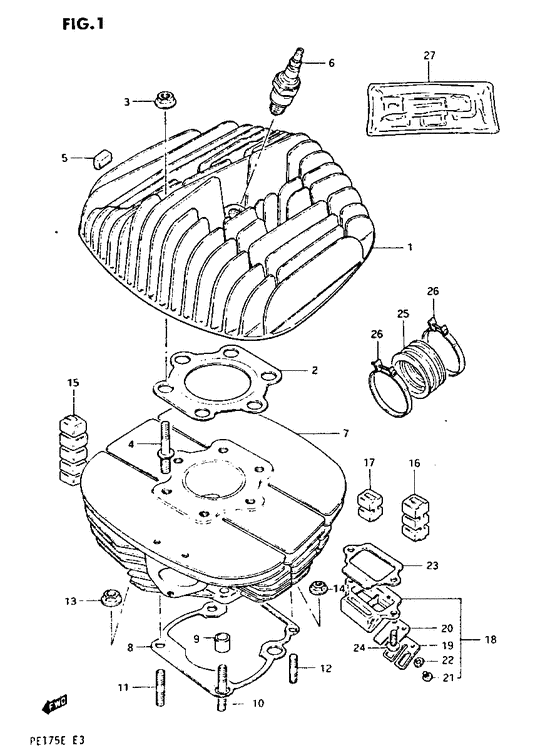

Cylinder Diagram Suzuki PE175
- Year
- 1984
- Model code
- PE175E E
- Engine Capacity
- 175
- Model
- PE175
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11111-40502-000
Head,cylinder
|
11111-40502-000 |
— | ||
|
2
|
2
11141-40501-000
Gasket cylinder head
|
11141-40501-000 |
— | ||
| replacement | |||||
|
2
|
2
11141-40303-000
GASKET,CYLINDER HEAD
|
11141-40303-000 |
— | ||
|
3
|
3
08316-16088-000
Nut
|
08316-16088-000 |
— | ||
| replacement | |||||
|
3
|
3
08316-10087-000 NUT |
08316-10087-000 |
from US $0.80 |
||
|
4
|
4
09108-08018-000 BOLT,STUDStud bolt |
09108-08018-000 |
from US $5.08 |
||
|
5
|
5
11252-25000-000 PAD,CYLINDERRubber pad |
11252-25000-000 |
from US $3.42 |
||
|
6
|
6
09482-00210-000
PLUG,SPARK(B10EGV)
Spark plug (ngk,b1oegv); |
09482-00210-000 |
— | ||
|
7
|
7
11210-40503-000
Cylinder
|
11210-40503-000 |
— | ||
|
8
|
8
11241-40500-000
Gasket cylinder
|
11241-40500-000 |
— | ||
| replacement | |||||
|
8
|
8
11241-40501-000 GASKET,CYLINDER |
11241-40501-000 |
from US $4.42 |
||
|
9
|
9
09206-13001-000
Pin
|
09206-13001-000 |
— | ||
| replacement | |||||
|
9
|
9
04211-13189-000 PIN |
04211-13189-000 |
from US $1.22 |
||
|
10
|
10
09108-08144-000 BOLT,STUDStud bolt l:40 Stud bolt l:40; |
09108-08144-000 |
from US $2.56 |
||
|
11
|
11
01421-08258-000
8 x 25 stud bol
|
01421-08258-000 |
— | ||
| replacement | |||||
|
11
|
11
01421-0825A-000 BOLT,STUD |
01421-0825A-000 |
from US $1.12 |
||
|
12
|
12
01421-06258-000
Stud bolt
|
01421-06258-000 |
— | ||
| replacement | |||||
|
12
|
12
01421-06257-000 BOLT,STUDStud bolt |
01421-06257-000 |
from US $4.13 |
||
|
13
|
13
08316-16088-000
Nut
|
08316-16088-000 |
— | ||
| replacement | |||||
|
13
|
13
08316-10087-000 NUT |
08316-10087-000 |
from US $0.80 |
||
|
14
|
14
09159-06017-000
Adjust nut
|
09159-06017-000 |
— | ||
| replacement | |||||
|
14
|
14
08319-31067-000 NUTNut, center |
08319-31067-000 |
from US $1.44 |
||
|
15
|
15
11251-36500-000 PAD,CYLINDERRubber pad (n9->6) Rubber pad #1 (n9-n5); |
11251-36500-000 |
from US $8.16 |
||
|
16
|
16
11251-36500-000 PAD,CYLINDERRubber pad (n9->6) Rubber pad #2 (n9-n3); |
11251-36500-000 |
from US $8.16 |
||
|
17
|
17
11251-36500-000 PAD,CYLINDERRubber pad (n9->6) Rubber pad #3 (n9-n2); |
11251-36500-000 |
from US $8.16 |
||
|
18
|
18
13150-40200-000
VALVE ASSY,REED
|
13150-40200-000 |
— | ||
|
19
|
19
13152-40200-000
Stopper
|
13152-40200-000 |
— | ||
| replacement | |||||
|
19
|
19
13150-40200-000
VALVE ASSY,REED
|
13150-40200-000 |
— | ||
|
20
|
20
13153-40200-000
VALVE,REED
|
13153-40200-000 |
— | ||
|
21
|
21
02112-03087-000
L.lock washer
Screw 3x8; |
02112-03087-000 |
— | ||
| replacement | |||||
|
21
|
21
02112-0308A-000 SCREWScrew 3x8; |
02112-0308A-000 |
from US $2.84 |
||
|
22
|
22
09162-03001-000 WASHER,LOCKLock washer |
09162-03001-000 |
from US $1.85 |
||
|
23
|
23
13156-40200-000
Gasket reed valve
|
13156-40200-000 |
— | ||
| replacement | |||||
|
23
|
23
13156-40200-H17
GASKET,REED VALVE
|
13156-40200-H17 |
— | ||
|
24
|
24
02112-06167-000 SCREWScrew 6x16; |
02112-06167-000 |
from US $0.80 |
||
|
25
|
25
13111-40500-000
PIPE,INTAKE
|
13111-40500-000 |
— | ||
|
26
|
26
09402-52306-000 CLAMPClamp |
09402-52306-000 |
from US $5.96 |
||
|
27
|
27
11401-40860-000
Engine gasket set
Opt |
11401-40860-000 |
— | ||
| replacement | |||||
|
27
|
27
11401-40863-000
GASKET SET
Opt |
11401-40863-000 |
— | ||
