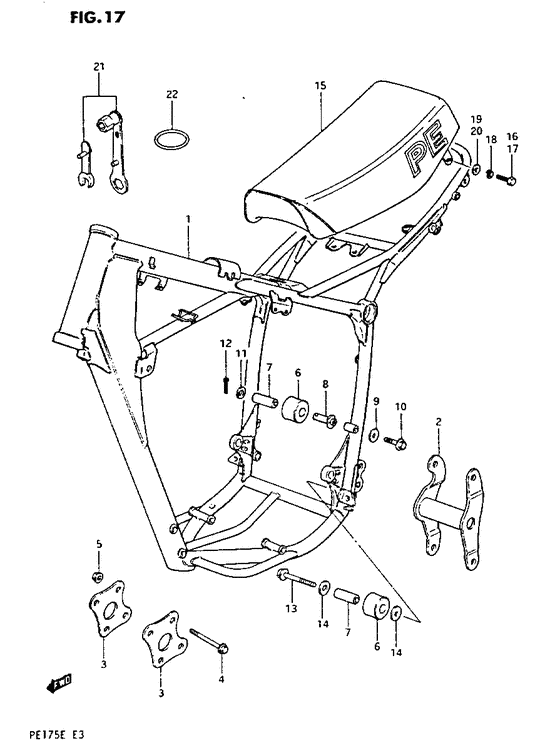

Frame -seat Diagram Suzuki PE175
- Year
- 1984
- Model code
- PE175E E
- Engine Capacity
- 175
- Model
- PE175
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
41100-14400-19F
Frame(truck shi
Frame(truck shipped) (blue); |
41100-14400-19F |
— | ||
|
2
|
2
41910-14401-000
Plate,eng mount
|
41910-14401-000 |
— | ||
|
3
|
3
41991-40200-000
Plate engine mo
|
41991-40200-000 |
— | ||
|
4
|
4
09103-08037-000 BOLT(8X67)Bolt engine mount; |
09103-08037-000 |
from US $8.91 |
||
|
5
|
5
08319-31087-000 NUT |
08319-31087-000 |
from US $1.67 |
||
|
6
|
6
43911-14200-000
ROLLER,CHAIN LENGTH CONTROL
|
43911-14200-000 |
— | ||
|
7
|
7
43913-40400-000
SPACER,CHAIN LENGTH ROLLER
Spacer chain roller; |
43913-40400-000 |
— | ||
|
8
|
8
43915-14301-000
BOSS,CHAIN LENGTH ROLLER
|
43915-14301-000 |
— | ||
|
9
|
9
09160-06057-000
Washer (6.5x18x1.6)
|
09160-06057-000 |
— | ||
| replacement | |||||
|
9
|
9
09160-06109-000 WASHER(6.5X18X1.6) |
09160-06109-000 |
from US $0.96 |
||
|
10
|
10
01517-06307-000
Bolt
|
01517-06307-000 |
— | ||
| replacement | |||||
|
10
|
10
01550-06307-000 Bolt |
01550-06307-000 |
from US $0.91 |
||
|
11
|
11
08322-11128-000
Washer
|
08322-11128-000 |
— | ||
| replacement | |||||
|
11
|
11
08322-01127-000 WASHERWasher, neutral sw |
08322-01127-000 |
from US $0.96 |
||
|
12
|
12
04111-25208-000
25 x 20 cotter
|
04111-25208-000 |
— | ||
| replacement | |||||
|
12
|
12
04111-2520A-000 PIN |
04111-2520A-000 |
from US $0.80 |
||
|
13
|
13
09103-08083-000 BOLT(8X41)Bolt, chain roller; |
09103-08083-000 |
from US $1.68 |
||
|
14
|
14
09160-08035-000
Wasehr (8.5x29x1.6)
|
09160-08035-000 |
— | ||
| replacement | |||||
|
14
|
14
09160-08130-000 WASHER(8.5X24X1.6) |
09160-08130-000 |
from US $0.91 |
||
|
15
|
15
45100-14420-54G
Seat assy (blue)
|
45100-14420-54G |
— | ||
|
16
|
16
01107-08258-000
Bolt
|
01107-08258-000 |
— | ||
| replacement | |||||
|
16
|
16
01500-08257-000 Bolt |
01500-08257-000 |
from US $1.12 |
||
|
17
|
17
01107-08408-000
Bolt
|
01107-08408-000 |
— | ||
| replacement | |||||
|
17
|
17
01500-0840A-000 Bolt |
01500-0840A-000 |
from US $0.96 |
||
|
18
|
18
08321-21088-000
Lock washer
|
08321-21088-000 |
— | ||
| replacement | |||||
|
18
|
18
08321-01087-000 WASHER,LOCKWasher, lock |
08321-01087-000 |
from US $0.76 |
||
|
19
|
19
09160-08033-000
Cl rel arm washer rh
|
09160-08033-000 |
— | ||
| replacement | |||||
|
19
|
19
09160-08126-000 WASHER(8.5X20X2.6) |
09160-08126-000 |
from US $0.70 |
||
|
20
|
20
09160-08007-000 Seat washerSpacer, swivel bracket |
09160-08007-000 |
US $1.93 |
||
| replacement | |||||
|
20
|
20
09160-08127-000 WASHER(8.5X22X2)Washer, fender front |
09160-08127-000 |
from US $1.12 |
||
|
21
|
21
96510-40500-000
Special tool
|
96510-40500-000 |
— | ||
|
22
|
22
96431-40500-000
O ring tool fit
O ring tool fitting; |
96431-40500-000 |
— | ||
