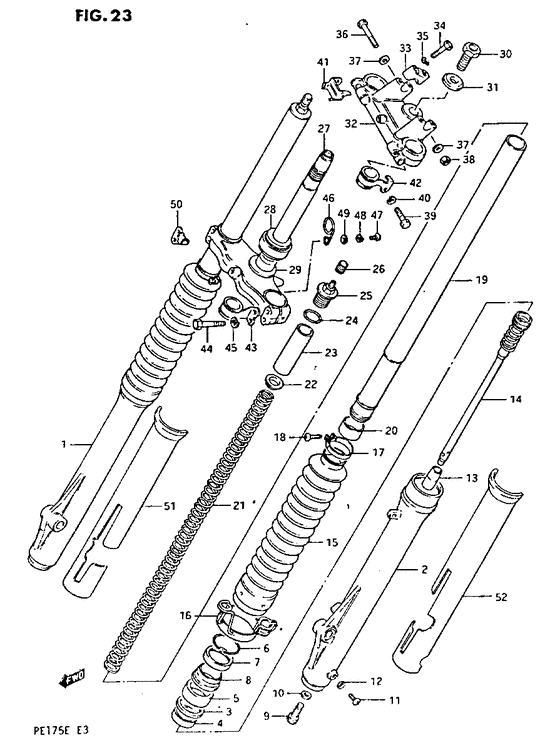

Front fork Diagram Suzuki PE175
- Year
- 1984
- Model code
- PE175E E
- Engine Capacity
- 175
- Model
- PE175
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
51100-14461-19F
Fork assy fr
Fork assy fr (blue); |
51100-14461-19F |
— | ||
|
1
|
1
51131-14400-000
Outer tube rh
|
51131-14400-000 |
— | ||
|
2
|
2
51141-14400-000
Outer tube lh
|
51141-14400-000 |
— | ||
|
3
|
3
51158-14100-000 WASHER(40X50X2.3)Washer Washer fork; |
51158-14100-000 |
from US $2.13 |
||
|
4
|
4
51167-13A00-000 METAL,SLIDE |
51167-13A00-000 |
from US $5.59 |
||
|
5
|
5
51153-40300-000
SEAL,OIL
Oil seal outer tube; |
51153-40300-000 |
— | ||
|
6
|
6
51156-40301-000 RING,STOPPERRing, oil seal stopper |
51156-40301-000 |
from US $2.58 |
||
|
7
|
7
51149-40301-000
CASE,DUST SEAL
|
51149-40301-000 |
— | ||
|
8
|
8
51173-40301-000
SEAL,DUST
Dust seal fork; |
51173-40301-000 |
— | ||
|
9
|
9
51147-40300-000 BOLT,CYLINDERBolt Bolt cylinder; |
51147-40300-000 |
from US $3.50 |
||
|
10
|
10
51148-40300-000 GASKET,CYLINDERGasket Gasket cylinder; |
51148-40300-000 |
from US $1.52 |
||
|
11
|
11
02112-04087-000 SCREWScrew 4x8; |
02112-04087-000 |
from US $0.80 |
||
|
12
|
12
51183-03010-000 GASKET,DRAIN,PLUGGasket |
51183-03010-000 |
from US $1.40 |
||
|
13
|
13
51195-14100-000
Piece oil lock
|
51195-14100-000 |
— | ||
|
14
|
14
51146-14400-000
Cylinder
|
51146-14400-000 |
— | ||
|
15
|
15
51571-40300-000
BOOT
Boots (blue); |
51571-40300-000 |
— | ||
|
16
|
16
51572-14400-000
Clip
|
51572-14400-000 |
— | ||
|
17
|
17
51575-44B00-000
BAND,BOOT
|
51575-44B00-000 |
— | ||
|
18
|
18
13602-38A10-000 Screw |
13602-38A10-000 |
US $1.51 |
||
| replacement | |||||
|
18
|
18
02112-04107-000 SCREW |
02112-04107-000 |
from US $0.80 |
||
|
19
|
19
51110-14461-000
Tube inner
|
51110-14461-000 |
— | ||
|
20
|
20
51121-14100-000 PISTONPiston Piston front fork; |
51121-14100-000 |
from US $8.46 |
||
|
21
|
21
51171-14400-000
Spring
|
51171-14400-000 |
— | ||
|
22
|
22
51172-40300-000 GUIDE |
51172-40300-000 |
from US $3.50 |
||
|
23
|
23
51176-14460-000
Spacer
|
51176-14460-000 |
— | ||
|
24
|
24
51117-40300-000 O RINGO ring; |
51117-40300-000 |
from US $2.24 |
||
|
25
|
25
51351-14460-000
Cap
|
51351-14460-000 |
— | ||
|
26
|
26
51294-20400-000 CAPCap fr fork air; |
51294-20400-000 |
from US $3.46 |
||
|
27
|
27
51410-14460-000
Stem steering
|
51410-14460-000 |
— | ||
|
28
|
28
09265-30009-000
BEARING(30X55X17)
Rt 30x55x17 bearing; |
09265-30009-000 |
— | ||
| replacement | |||||
|
28
|
28
09265-30034-000 BearingRt 30x55x17 bearing; |
09265-30034-000 |
from US $31.92 |
||
|
29
|
29
08211-30402-000
Winner
|
08211-30402-000 |
— | ||
| replacement | |||||
|
29
|
29
09181-30184-000 SHIM(30X40X1.5)Washer |
09181-30184-000 |
from US $1.82 |
||
|
30
|
30
51351-41320-000
Bolt
Stem hed bolt; |
51351-41320-000 |
— | ||
|
31
|
31
51356-41310-000 WASHERWasher,seering sytem; |
51356-41310-000 |
US $5.46 |
||
|
32
|
32
51311-14460-000
Head stem
|
51311-14460-000 |
— | ||
|
33
|
33
56211-27100-000 HOLDER,HANDLEBAR |
56211-27100-000 |
from US $16.90 |
||
|
34
|
34
01107-08358-000
Bolt 8 x 35
Bolt 8 x 35; |
01107-08358-000 |
— | ||
| replacement | |||||
|
34
|
34
01500-0835B-000 BOLTBolt, muffler support Bolt 8 x 35; |
01500-0835B-000 |
from US $0.96 |
||
|
35
|
35
08321-21088-000
Lock washer
|
08321-21088-000 |
— | ||
| replacement | |||||
|
35
|
35
08321-01087-000 WASHER,LOCKWasher, lock |
08321-01087-000 |
from US $0.76 |
||
|
36
|
36
01107-08508-000
Bolt
|
01107-08508-000 |
— | ||
| replacement | |||||
|
36
|
36
01500-08507-000 Bolt |
01500-08507-000 |
from US $3.27 |
||
|
37
|
37
08322-21088-000
Washer
|
08322-21088-000 |
— | ||
| replacement | |||||
|
37
|
37
08322-01087-000 WASHERLock washer |
08322-01087-000 |
from US $0.76 |
||
|
38
|
38
08310-12088-000
Nut
|
08310-12088-000 |
— | ||
| replacement | |||||
|
38
|
38
08310-00087-000 NUT |
08310-00087-000 |
from US $0.76 |
||
|
39
|
39
01107-10458-000
Bolt (10*45)
|
01107-10458-000 |
— | ||
| replacement | |||||
|
39
|
39
01500-1045A-000 Bolt |
01500-1045A-000 |
from US $3.25 |
||
|
40
|
40
08321-21107-000 Lock washer |
08321-21107-000 |
US $2.54 |
||
| replacement | |||||
|
40
|
40
08321-01107-000 WASHER,LOCKLock washer |
08321-01107-000 |
from US $0.76 |
||
|
41
|
41
96410-40630-000
Clip
|
96410-40630-000 |
— | ||
|
42
|
42
58621-40500-000
Clip front fork
Clip front fork; |
58621-40500-000 |
— | ||
|
43
|
43
58621-40301-000
CLIP,CABLE
Clip front fork; |
58621-40301-000 |
— | ||
|
44
|
44
01107-08458-000
Bolt
|
01107-08458-000 |
— | ||
| replacement | |||||
|
44
|
44
01500-08453-000 BoltBolt, lower bracket |
01500-08453-000 |
from US $1.22 |
||
|
45
|
45
08321-21088-000
Lock washer
|
08321-21088-000 |
— | ||
| replacement | |||||
|
45
|
45
08321-01087-000 WASHER,LOCKWasher, lock |
08321-01087-000 |
from US $0.76 |
||
|
46
|
46
51455-31010-000
CLIP
Guide cable; |
51455-31010-000 |
— | ||
|
47
|
47
02112-06148-000
Screw 6x14
Screw 6x14; |
02112-06148-000 |
— | ||
| replacement | |||||
|
47
|
47
02112-0616B-000 SCREWScrew 6x14; |
02112-0616B-000 |
from US $0.80 |
||
|
48
|
48
08321-01067-000 WASHER,LOCKWasher, lock; |
08321-01067-000 |
from US $0.76 |
||
|
49
|
49
08322-01067-000 WASHER |
08322-01067-000 |
from US $0.76 |
||
|
50
|
50
96421-41401-000
Bracket tool ki
|
96421-41401-000 |
— | ||
|
51
|
51
51201-14460-000
Protector rh
|
51201-14460-000 |
— | ||
|
52
|
52
51202-14460-000
Protector lh
|
51202-14460-000 |
— | ||
