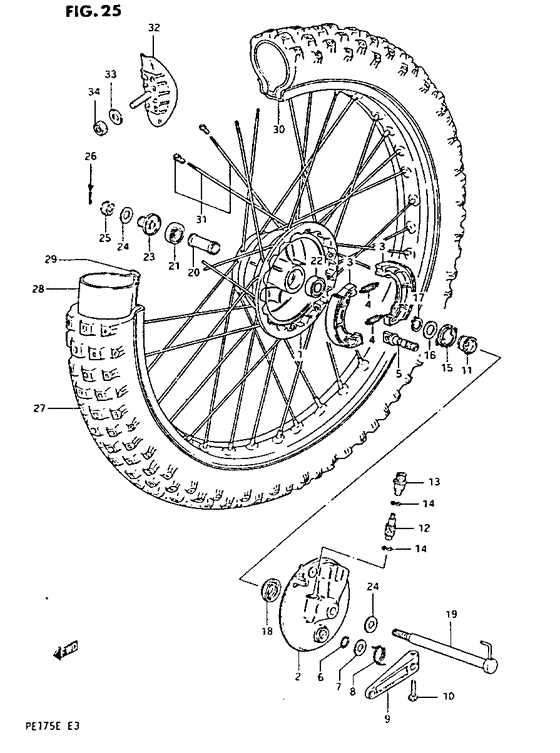

Front wheel Diagram Suzuki PE175
- Year
- 1984
- Model code
- PE175E E
- Engine Capacity
- 175
- Model
- PE175
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
54110-14400-000
Drum front hub
|
54110-14400-000 |
— | ||
|
2
|
2
54210-14400-000
Panel fr hub
|
54210-14400-000 |
— | ||
|
3
|
3
54410-14400-000
Shoe,brake
|
54410-14400-000 |
— | ||
| replacement | |||||
|
3
|
3
64400-40810-000 SHOE SET,BRAKEShoe set, brake |
64400-40810-000 |
from US $30.91 |
||
|
4
|
4
09443-08021-000
SPRING
Spring brake shoe; |
09443-08021-000 |
— | ||
|
5
|
5
54441-14101-000
CAM,FR BRAKE
Cam,front brake; |
54441-14101-000 |
— | ||
|
6
|
6
09280-12001-000 O RING(D:2.5,ID:11.4)O ring, reverse lever pivot |
09280-12001-000 |
from US $1.90 |
||
|
7
|
7
09160-12011-000 WASHER(12.5X20X1)Washer (12.5x20x1) Seal washer (12.5x20x1); |
09160-12011-000 |
from US $0.91 |
||
|
8
|
8
09448-32007-000
Srping brake ca
Srping brake cam lev; |
09448-32007-000 |
— | ||
|
9
|
9
54451-41500-000
Front brk cam l
|
54451-41500-000 |
— | ||
|
10
|
10
01500-06257-000 Bolt |
01500-06257-000 |
from US $2.08 |
||
|
11
|
11
54611-14400-000
Gear speedomete
Gear speedometer (nt:30); |
54611-14400-000 |
— | ||
|
12
|
12
54621-14400-000
Pinion speedome
Pinion speedometer (nt:10); |
54621-14400-000 |
— | ||
|
13
|
13
54632-02201-000 BUSH,SPEEDOMETER PINION OUTERBushing, pinion Bush speedometer; |
54632-02201-000 |
from US $8.32 |
||
|
14
|
14
09160-05001-000
Speedo thrust w
Speedo thrust washer; |
09160-05001-000 |
— | ||
| replacement | |||||
|
14
|
14
09160-05001-A05 WASHER(5.1X9X0.4)Speedo thrust washer; |
09160-05001-A05 |
from US $1.12 |
||
|
15
|
15
54660-11031-000 DRIVER,SPEEDOMETER GEARDriver Speedmeter gr driver; |
54660-11031-000 |
from US $11.95 |
||
|
16
|
16
09160-22001-000 WASHER(22.5X27X1)Thrust washer (22.5*27*1) |
09160-22001-000 |
from US $1.28 |
||
|
17
|
17
08331-11229-000
Circlip
|
08331-11229-000 |
— | ||
| replacement | |||||
|
17
|
17
08331-31229-000 CIRCLIP |
08331-31229-000 |
from US $1.44 |
||
|
18
|
18
09285-26003-000
SEAL,OIL(26X38X4)
|
09285-26003-000 |
— | ||
| replacement | |||||
|
18
|
18
09285-26005-000
Seal,oil(26X38X4)
|
09285-26005-000 |
— | ||
|
19
|
19
54710-14400-000
Axle front
|
54710-14400-000 |
— | ||
|
20
|
20
54730-14100-000
Spacer fr hub b
Spacer fr hub bear (12.6x19x52); |
54730-14100-000 |
— | ||
|
21
|
21
08123-62027-000 BEARINGB1 15x35x11 bearing rh B1 15x35x11 bearing rh; |
08123-62027-000 |
from US $10.08 |
||
|
22
|
22
08143-62027-000 BEARING(15×35×11)Bearing, lh B1 15x35x11 bearing lh; |
08143-62027-000 |
from US $8.82 |
||
|
23
|
23
54740-14400-000
Spacer fr axle
|
54740-14400-000 |
— | ||
|
24
|
24
08322-11128-000
Washer
|
08322-11128-000 |
— | ||
| replacement | |||||
|
24
|
24
08322-01127-000 WASHERWasher, neutral sw |
08322-01127-000 |
from US $0.80 |
||
|
25
|
25
08314-41128-000
Nut
|
08314-41128-000 |
— | ||
| replacement | |||||
|
25
|
25
08314-4012A-000 NUT |
08314-4012A-000 |
from US $1.06 |
||
|
26
|
26
04111-30308-000
30 x 30 cotter
30 x 30 cotter pin; |
04111-30308-000 |
— | ||
| replacement | |||||
|
26
|
26
04111-3030A-000 PIN30 x 30 cotter pin; |
04111-3030A-000 |
from US $0.76 |
||
|
27
|
27
55100-14100-000
Tire front (irc
Tire front (irc) (3.00-21); Irc |
55100-14100-000 |
— | ||
|
27
|
27
55100-14120-000
Tire front (bs)
Tire front (bs) (3.00-21); Bs |
55100-14120-000 |
— | ||
|
28
|
28
55200-16510-000 TUBETube assy, wheel inner |
55200-16510-000 |
US $51.75 |
||
|
29
|
29
55261-16510-000 Protector, inner tube |
55261-16510-000 |
from US $3.20 |
||
| replacement | |||||
|
29
|
29
55261-14540-000 PROTECTOR,WHEEL INNERProtector, inner tube |
55261-14540-000 |
US $4.25 |
||
|
30
|
30
55311-14500-000
Rim fr wheel 1.
Rim fr wheel 160x21; |
55311-14500-000 |
— | ||
|
31
|
31
55320-14111-000
Spoke assy fr w
Spoke assy fr wheel; |
55320-14111-000 |
— | ||
|
32
|
32
65270-14300-000 STOPPER,BEAD |
65270-14300-000 |
US $49.75 |
||
|
33
|
33
08322-11088-000
Washer
|
08322-11088-000 |
— | ||
| replacement | |||||
|
33
|
33
08322-01087-000 WASHERLock washer |
08322-01087-000 |
from US $0.76 |
||
|
34
|
34
08310-00087-000 NUTNut 8mm; |
08310-00087-000 |
from US $0.76 |
||
