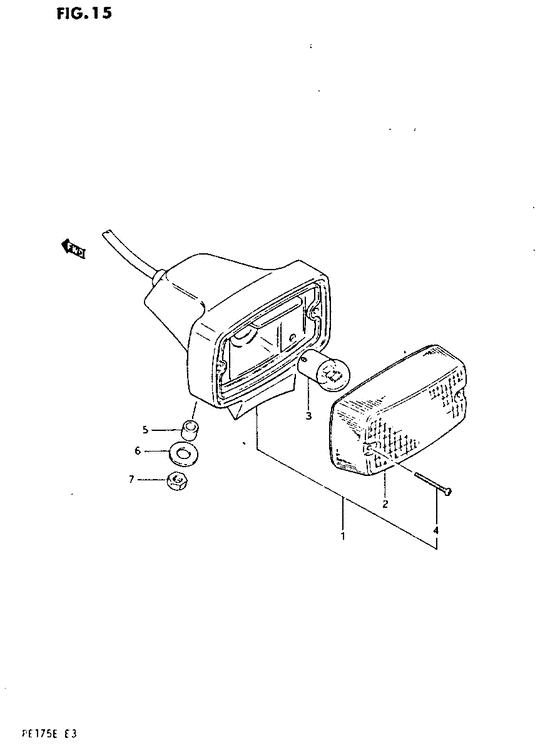

Tail lamp Diagram Suzuki PE175
- Year
- 1984
- Model code
- PE175E E
- Engine Capacity
- 175
- Model
- PE175
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
35710-40500-000
Lamp assy tail
|
35710-40500-000 |
— | ||
|
2
|
2
35712-30410-000 LENSLens tail lamp; |
35712-30410-000 |
US $12.24 |
||
|
3
|
3
09471-06049-000 BULB(6V5W,TOKAI DENSO)Bulb tail lamp (6v,5w) Bulb tail lamp (6v,5w); |
09471-06049-000 |
US $4.11 |
||
|
4
|
4
35723-40511-000
Screw rr combi
|
35723-40511-000 |
— | ||
|
5
|
5
09180-06011-000
Spacer
|
09180-06011-000 |
— | ||
| replacement | |||||
|
5
|
5
09180-06263-000 SPACER(6.5X9X9) |
09180-06263-000 |
from US $1.52 |
||
|
6
|
6
09160-06057-000
Washer (6.5x18x1.6)
|
09160-06057-000 |
— | ||
| replacement | |||||
|
6
|
6
09160-06109-000 WASHER(6.5X18X1.6) |
09160-06109-000 |
from US $0.80 |
||
|
7
|
7
08310-12066-000
Nut
|
08310-12066-000 |
— | ||
| replacements | |||||
|
7
|
7
08310-0006B-000 NUTNut gear shift link rod |
08310-0006B-000 |
from US $0.76 |
||
|
7
|
7
08310-0006A-000 NUT |
08310-0006A-000 |
from US $0.76 |
||
