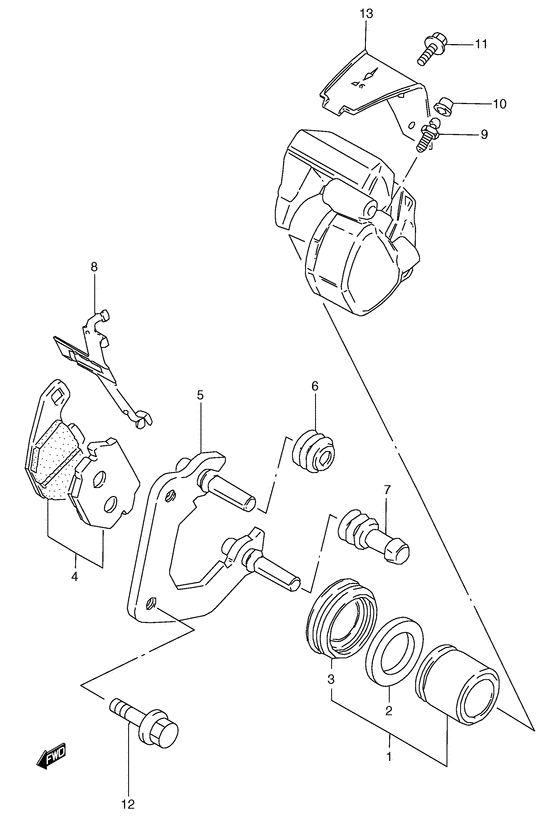

Front calipers Diagram Suzuki RG50
- Year
- 1994
- Model code
- RG50R(E6) R
- Engine Capacity
- 50
- Model
- RG50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
|
59300-04730-000
Caliper assy, front lh
Caliper, front; |
59300-04730-000 |
— | ||
| replacement | |||||
|
|
59300-04713-000
CALIPER ASSY,FR
Caliper, front; |
59300-04713-000 |
— | ||
|
1
|
1
59300-04850-000
Piston set
|
59300-04850-000 |
— | ||
| replacement | |||||
|
1
|
1
59300-04851-000 PISTON SET |
59300-04851-000 |
from US $37.17 |
||
|
2
|
2
59107-39100-000
Seal,piston
Seal, piston; |
59107-39100-000 |
— | ||
| replacement | |||||
|
2
|
2
59107-35F00-000 SEAL,PISTONSeal, piston; |
59107-35F00-000 |
from US $13.55 |
||
|
3
|
3
59308-36500-000 BOOT,PISTONBoot, piston Boot, piston; |
59308-36500-000 |
from US $9.60 |
||
|
4
|
4
59300-04830-000 Pad set |
59300-04830-000 |
US $45.99 |
||
| replacement | |||||
|
4
|
4
59300-04831-000 Pad set |
59300-04831-000 |
from US $37.60 |
||
|
5
|
5
59350-36501-000
CARRIER,L
Carrier, lh; |
59350-36501-000 |
— | ||
|
6
|
6
59312-36500-000 BOOT,AXLEBoot, axle; |
59312-36500-000 |
from US $4.10 |
||
|
7
|
7
59313-36500-000 INSULATOR,AXLEInsulator, axle; |
59313-36500-000 |
from US $4.10 |
||
|
8
|
8
59315-36500-000 SPRING,PADSpring, pad Spring, pad; |
59315-36500-000 |
US $12.65 |
||
|
9
|
9
59121-18410-000 BLEEDERBreeder; |
59121-18410-000 |
from US $7.14 |
||
|
10
|
10
59122-18410-000
Cap, bleeder plug
|
59122-18410-000 |
— | ||
| replacement | |||||
|
10
|
10
55156-66310-000 CAP,BLEEDER PLUGCap, bleeder plug |
55156-66310-000 |
from US $1.98 |
||
|
11
|
11
02112-75123-000
Screw
Screw; |
02112-75123-000 |
— | ||
| replacement | |||||
|
11
|
11
02112-7512A-000 SCREWScrew; |
02112-7512A-000 |
from US $3.83 |
||
|
12
|
12
01550-08307-000 BOLT |
01550-08307-000 |
from US $1.07 |
||
|
13
|
13
59313-13001-000 PROTECTOR,CALIPERProtector, caliper Protector, caliper; |
59313-13001-000 |
US $2.43 |
||
