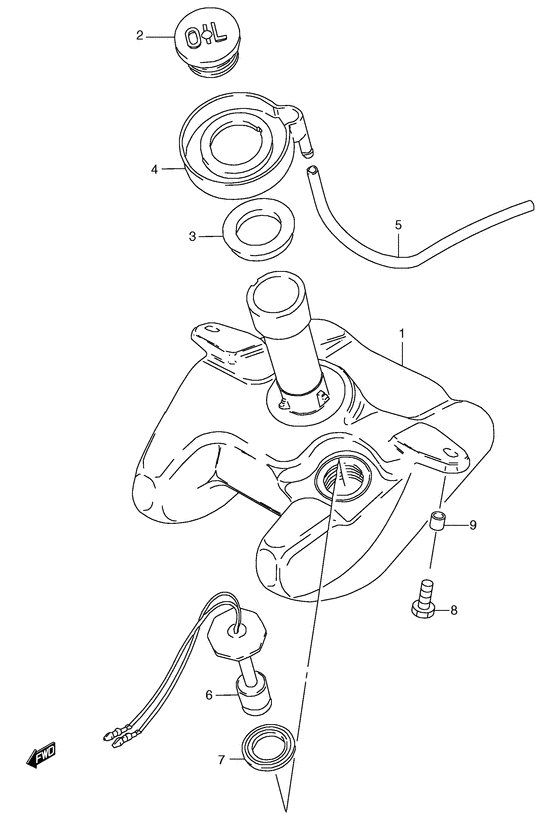

Oil tank Diagram Suzuki RG50
- Year
- 1994
- Model code
- RG50R(E6) R
- Engine Capacity
- 50
- Model
- RG50
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
44611-04700-000
Tank, oil
|
44611-04700-000 |
— | ||
|
2
|
2
44651-04701-000
CAP,OIL TANK
|
44651-04701-000 |
— | ||
| replacement | |||||
|
2
|
2
44651-04702-000 Cap,oil Tank |
44651-04702-000 |
US $13.76 |
||
|
3
|
3
44661-04700-000
CUSHION,OIL TANK
Cushion, oil tank; |
44661-04700-000 |
— | ||
|
4
|
4
44682-04700-000
TRAY,FUEL & OIL DRAIN
Tray, fuel/oil drain; |
44682-04700-000 |
— | ||
|
5
|
5
09352-50823-00A
Hose, vacuum (5x8.2x1000->30)
L:1000->30 |
09352-50823-00A |
— | ||
| replacements | |||||
|
5
|
5
09352-50823-00B
HOSE(5X8.2X2000)
L:1000->30 |
09352-50823-00B |
— | ||
|
5
|
5
09352-50005-00B Hose(5X8.2X2000)L:1000->30 |
09352-50005-00B |
from US $9.27 |
||
|
6
|
6
37880-20A00-000
Switch assy, oil level
|
37880-20A00-000 |
— | ||
| replacement | |||||
|
6
|
6
37880-17B01-000 SWITCH ASSY,OIL LEVEL |
37880-17B01-000 |
US $27.97 |
||
|
7
|
7
44643-31000-000
GASKET
|
44643-31000-000 |
— | ||
| replacement | |||||
|
7
|
7
44643-31010-000 Gasket |
44643-31010-000 |
US $3.30 |
||
|
8
|
8
09116-06006-000 BOLT(6X16)Bolt, front Bolt (6x16); |
09116-06006-000 |
from US $0.76 |
||
|
9
|
9
09180-06001-000 SPACER(6.2X8.3X5.7)Cyl hd cover spacer Spacer (6.2x8.3x5.7); |
09180-06001-000 |
from US $3.15 |
||
