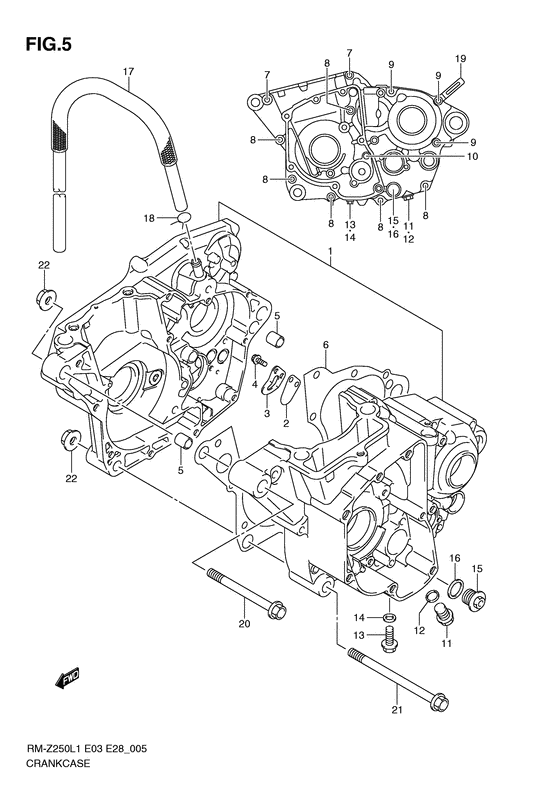

Crankcase Diagram Suzuki RM-Z250
- Year
- 2011
- Model code
- RM-Z250L1(E3/E28) L1
- Sales region
- USA/ Canada
- Engine Capacity
- 250
- Model
- RM-Z250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11301-49820-000
Crankcase set
|
11301-49820-000 |
— | ||
| replacement | |||||
|
1
|
1
11301-49821-000 Crankcase Assy |
11301-49821-000 |
from US $960.96 |
||
|
2
|
2
11322-35G00-000 VALVE,CRANKCASE REED |
11322-35G00-000 |
from US $6.51 |
||
|
3
|
3
11323-35G00-000 STOPPER,CRANKCASE REED VALVE |
11323-35G00-000 |
from US $4.86 |
||
|
4
|
4
07120-0512A-000 BOLT |
07120-0512A-000 |
from US $3.59 |
||
|
5
|
5
09206-13020-000 PIN(10.4X13X18)Pin (10.4x13x18); |
09206-13020-000 |
from US $1.22 |
||
|
6
|
6
11481-49H00-000 GASKET,CRANKCASE |
11481-49H00-000 |
from US $16.72 |
||
|
7
|
7
01547-0640A-000 BOLT |
01547-0640A-000 |
from US $0.91 |
||
|
8
|
8
01547-0650A-000 Bolt |
01547-0650A-000 |
from US $0.91 |
||
|
9
|
9
01547-0670A-000 BOLTBolt; |
01547-0670A-000 |
from US $4.49 |
||
|
10
|
10
01547-0680A-000 BOLTBolt (6x80) |
01547-0680A-000 |
from US $4.49 |
||
|
11
|
11
09247-12012-000 PLUGOil drain |
09247-12012-000 |
from US $10.34 |
||
|
12
|
12
09168-12002-000 GASKET(12.1X16.2X3.7)Gasket Gasket (12.1x16.2x3.7); |
09168-12002-000 |
from US $0.76 |
||
|
13
|
13
09103-08254-000 BOLT(8X20)Bolt, rear Plug (8x20); Oil drain |
09103-08254-000 |
from US $4.13 |
||
|
14
|
14
09168-08034-000 GASKET(7.8X13.5X1.2)Gasket (7.8x13.5x1.2); |
09168-08034-000 |
from US $3.21 |
||
|
15
|
15
16316-10H01-000 CAP,ENG OIL STRAINER |
16316-10H01-000 |
from US $14.43 |
||
|
16
|
16
09168-16002-000 GASKET(16X22X2)Gasket (16x22x2); |
09168-16002-000 |
from US $0.90 |
||
|
17
|
17
11332-35G11-000
Hose,breather
|
11332-35G11-000 |
— | ||
| replacements | |||||
|
17
|
17
11332-49H10-000
HOSE,BREATHER
|
11332-49H10-000 |
— | ||
|
17
|
17
11332-49H11-000 Hose,breather |
11332-49H11-000 |
from US $20.24 |
||
|
18
|
18
09401-13301-000 CLIPClip, breather hose Clip; |
09401-13301-000 |
from US $2.56 |
||
|
19
|
19
09404-06429-000 CLAMP(L:45)Clamp, coil lead wire Clamp (l:45); |
09404-06429-000 |
from US $1.52 |
||
|
20
|
20
09103-10387-000 BOLT(10X96)Bolt, rr knuckle upper Bolt (10x96); |
09103-10387-000 |
from US $9.67 |
||
|
21
|
21
09103-10388-000 BOLT(10X120)Bolt, rr spnsn arm upper Bolt (10x120); |
09103-10388-000 |
from US $9.01 |
||
|
22
|
22
09159-10122-000 NUT |
09159-10122-000 |
from US $9.74 |
||
