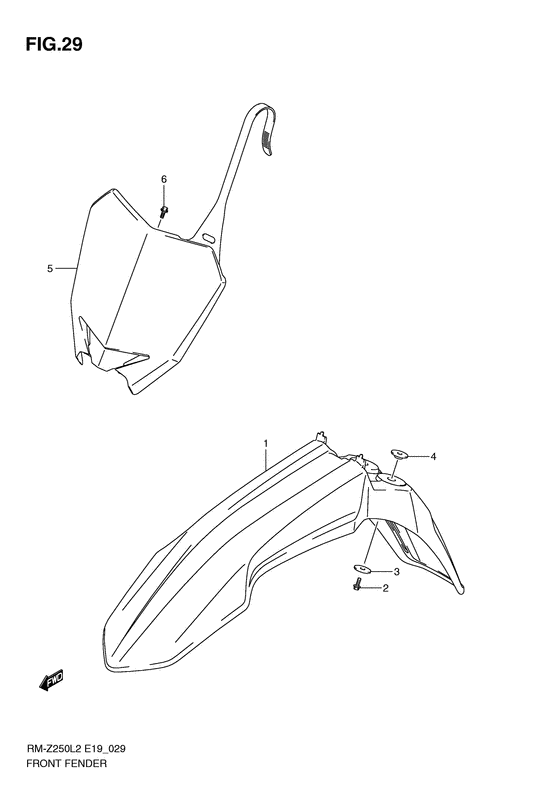

Front fender Diagram Suzuki RM-Z250
- Year
- 2012
- Model code
- RM-Z250L2(E19) L2
- Engine Capacity
- 250
- Model
- RM-Z250
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
53111-28H00-YU1 FENDER,FRFender, front (yellow); |
53111-28H00-YU1 |
from US $63.84 |
||
|
2
|
2
01547-0616A-000 BOLTBolt; |
01547-0616A-000 |
from US $0.76 |
||
|
3
|
3
44135-35G00-000 WASHERWasher, lower Washer, lower; |
44135-35G00-000 |
from US $6.51 |
||
|
4
|
4
09169-06078-000 WASHERWasher, upper |
09169-06078-000 |
from US $5.68 |
||
|
5
|
5
94911-28H01-019
Plate,number fr
Plate, number front (black); |
94911-28H01-019 |
— | ||
| replacement | |||||
|
5
|
5
94911-28H02-019 PLATE,NUMBER FRPlate, number front (black); |
94911-28H02-019 |
from US $15.71 |
||
|
6
|
6
09116-06197-000 BOLT(6X12)Bolt (6x12); |
09116-06197-000 |
from US $4.13 |
||
