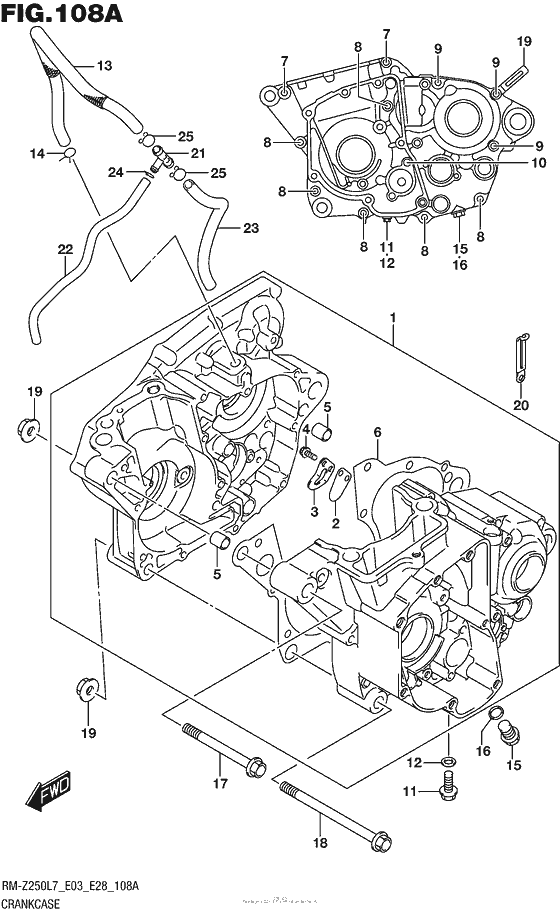

Crankcase Diagram Suzuki RM-Z250
- Year
- 2017
- Model code
- RM-Z250L7 (2017)
- Sales region
- USA/ Canada
- Engine Capacity
- 250
- Model
- RM-Z250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11301-49841-000 CRANKCASE SET |
11301-49841-000 |
from US $799.04 |
||
|
2
|
2
11322-35G10-000 VALVE,CRANKCASE REED |
11322-35G10-000 |
from US $5.41 |
||
|
3
|
3
11323-35G00-000 STOPPER,CRANKCASE REED VALVE |
11323-35G00-000 |
from US $4.86 |
||
|
4
|
4
07120-0512A-000 BOLT |
07120-0512A-000 |
from US $3.59 |
||
|
5
|
5
04211-13189-000 PIN |
04211-13189-000 |
from US $1.19 |
||
|
6
|
6
11481-49H10-000 GASKET,CRANKCASE |
11481-49H10-000 |
from US $14.44 |
||
|
7
|
7
01547-0640A-000 BOLT |
01547-0640A-000 |
from US $0.91 |
||
|
8
|
8
01547-0650A-000 Bolt |
01547-0650A-000 |
from US $0.91 |
||
|
9
|
9
01547-0670A-000 BOLT |
01547-0670A-000 |
from US $4.49 |
||
|
10
|
10
01547-0680A-000 BOLTBolt (6x80) |
01547-0680A-000 |
from US $4.49 |
||
|
11
|
11
09103-08393-000 BOLT(8X20) |
09103-08393-000 |
from US $3.96 |
||
|
12
|
12
09168-08016-000 GASKET(8.2X14X1)Gasket (8.2x14x1.0) |
09168-08016-000 |
from US $1.22 |
||
|
13
|
13
11332-49H30-000 HOSE,BREATHER NO.1 |
11332-49H30-000 |
from US $10.52 |
||
|
14
|
14
09401-13301-000 CLIPClip, breather hose |
09401-13301-000 |
from US $2.56 |
||
|
15
|
15
09247-12106-000 PLUG,12X20Plug, oil drain |
09247-12106-000 |
from US $2.08 |
||
|
16
|
16
09168-12002-000 GASKET(12.1X16.2X3.7)Gasket |
09168-12002-000 |
from US $0.76 |
||
|
17
|
17
09103-10448-000 BOLT(10X80) |
09103-10448-000 |
from US $8.40 |
||
|
18
|
18
09103-10388-000 BOLT(10X120)Bolt, rr spnsn arm upper |
09103-10388-000 |
from US $9.01 |
||
|
19
|
19
09159-10122-000 NUT |
09159-10122-000 |
from US $9.74 |
||
|
20
|
20
09404-06429-000 CLAMP(L:45)Clamp, coil lead wire |
09404-06429-000 |
from US $1.52 |
||
|
21
|
21
11331-28H00-000 JOINT,BREATHER HOSE |
11331-28H00-000 |
from US $3.31 |
||
|
22
|
22
09352-60103-220 HOSE,BREATHER NO.3 |
09352-60103-220 |
from US $3.24 |
||
|
23
|
23
09352-90133-600
HOSE(9X13X600)
|
09352-90133-600 |
— | ||
| replacement | |||||
|
23
|
23
09352-90134-600 Hose(9X13X600) |
09352-90134-600 |
from US $11.68 |
||
|
24
|
24
09401-10401-000 CLIPClip |
09401-10401-000 |
from US $2.28 |
||
|
25
|
25
09401-13102-000 CLIP |
09401-13102-000 |
from US $1.22 |
||
