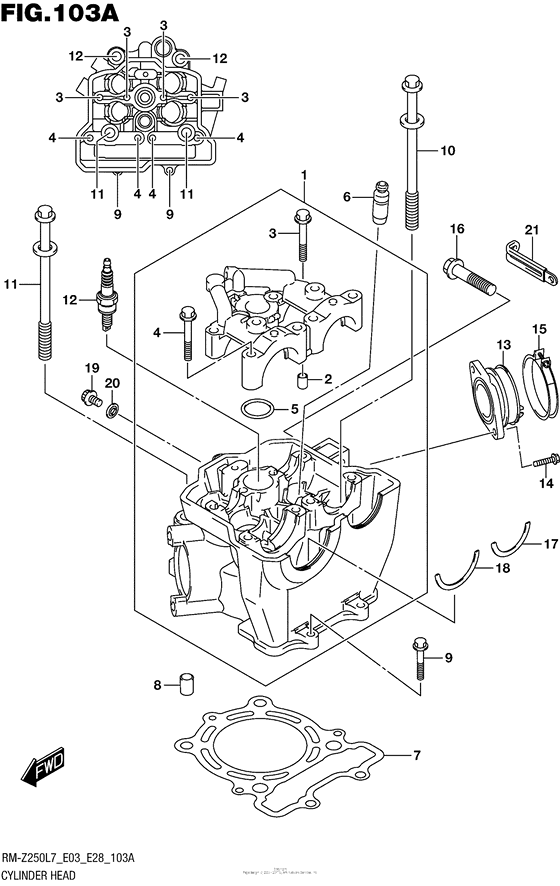

Cylinder head Diagram Suzuki RM-Z250
- Year
- 2017
- Model code
- RM-Z250L7 (2017)
- Sales region
- USA/ Canada
- Engine Capacity
- 250
- Model
- RM-Z250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11100-49H10-000 HEAD ASSY,CYLINDER |
11100-49H10-000 |
from US $628.67 |
||
|
2
|
2
09206-08001-000 PIN(8X11) |
09206-08001-000 |
from US $1.06 |
||
|
3
|
3
09103-06266-000 BOLT(6X40)Bolt, 6x40 |
09103-06266-000 |
from US $1.12 |
||
|
4
|
4
09103-06293-000 BOLT(6X45) |
09103-06293-000 |
from US $1.08 |
||
|
5
|
5
09280-26007-000 O RING(D:2.4,ID:25.7)O ring, neut sw |
09280-26007-000 |
from US $5.28 |
||
|
6
|
6
11115-10H70-000 GUIDE,VALVE(OS:0.3) |
11115-10H70-000 |
from US $18.20 |
||
|
7
|
7
11141-49H00-000 GASKET,CYLINDER HEAD |
11141-49H00-000 |
from US $20.52 |
||
|
8
|
8
04211-13189-000 PIN |
04211-13189-000 |
from US $1.19 |
||
|
9
|
9
01547-0625A-000 BOLTBolt, fr brake hose no.2 |
01547-0625A-000 |
from US $0.91 |
||
|
10
|
10
11117-10H00-000 BOLT,CYLINDER HEAD |
11117-10H00-000 |
from US $8.32 |
||
|
11
|
11
11117-10H10-000 BOLT,CYLINDER HEAD |
11117-10H10-000 |
from US $9.27 |
||
|
12
|
12
09482-00584-000 PLUG,SPARK(CR8EIB-10) |
09482-00584-000 |
from US $16.15 |
||
|
13
|
13
13101-49H00-000
PIPE ASSY,INTAKE
|
13101-49H00-000 |
— | ||
| replacement | |||||
|
13
|
13
13101-49H01-000 Pipe Assy,intake |
13101-49H01-000 |
from US $42.32 |
||
|
14
|
14
01547-0620A-000 Bolt |
01547-0620A-000 |
from US $0.76 |
||
|
15
|
15
13170-49H10-000 CLAMP,INTAKE PIPE |
13170-49H10-000 |
from US $10.67 |
||
|
16
|
16
09103-10055-000 BOLT(10X40) |
09103-10055-000 |
from US $6.49 |
||
|
17
|
17
12749-49H00-000 C RING,CAMSHAFT |
12749-49H00-000 |
from US $2.13 |
||
|
18
|
18
12749-49H10-000 C RING,CAMSHAFT |
12749-49H10-000 |
from US $2.43 |
||
|
19
|
19
07120-0610A-000 Bolt |
07120-0610A-000 |
from US $3.15 |
||
|
20
|
20
09168-06023-000 GASKET(5.8X13X1.2)Gasket (5.8x13x1.2) |
09168-06023-000 |
from US $1.51 |
||
|
21
|
21
09404-06429-000 CLAMP(L:45)Clamp, coil lead wire |
09404-06429-000 |
from US $1.52 |
||
