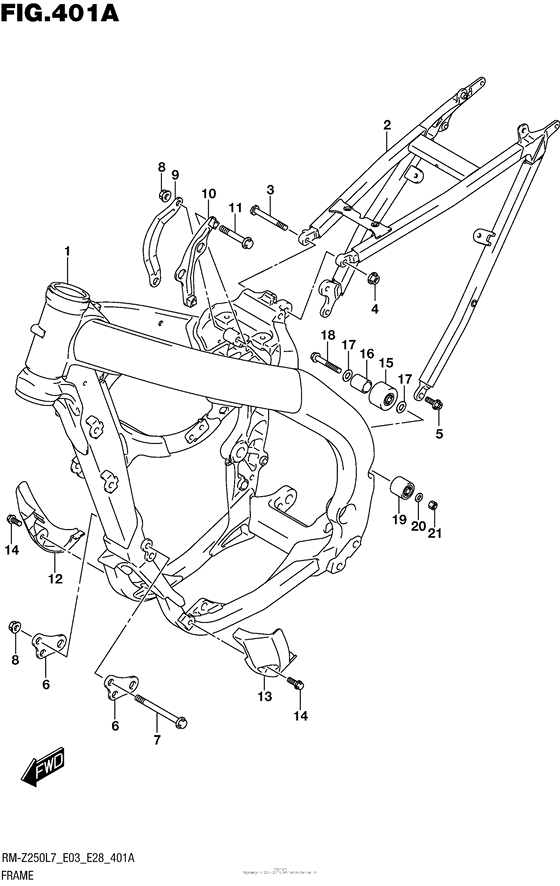

Frame Diagram Suzuki RM-Z250
- Year
- 2017
- Model code
- RM-Z250L7 (2017)
- Sales region
- USA/ Canada
- Engine Capacity
- 250
- Model
- RM-Z250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
41100-49H30-000 FRAME COMP |
41100-49H30-000 |
from US $2,176.49 |
||
|
2
|
2
41200-49H30-000 RAIL COMP,SEAT |
41200-49H30-000 |
from US $542.08 |
||
|
3
|
3
41311-28H20-000 BOLT,SEAT RAIL UPR |
41311-28H20-000 |
from US $8.64 |
||
|
4
|
4
09159-08146-000 NUT |
09159-08146-000 |
from US $9.57 |
||
|
5
|
5
09103-08426-000 BOLT(8X20)Bolt (8x20) |
09103-08426-000 |
from US $7.36 |
||
|
6
|
6
41911-49H20-000 BRACKET,ENGINE MOUNTING FR |
41911-49H20-000 |
from US $4.45 |
||
|
7
|
7
09103-08016-000 BOLT(8X80)Bolt, lower |
09103-08016-000 |
from US $25.80 |
||
|
8
|
8
09159-08146-000 NUT |
09159-08146-000 |
from US $9.57 |
||
|
9
|
9
41931-49H20-000 BRACKET,ENGINE MOUNTING UPR,R |
41931-49H20-000 |
from US $6.66 |
||
|
10
|
10
41940-49H30-000 BRACKET COMP,ENG MTG UPPER,L |
41940-49H30-000 |
from US $10.67 |
||
|
11
|
11
09103-08523-000 BOLT(8X40) |
09103-08523-000 |
from US $5.78 |
||
|
12
|
12
42520-10H10-000 PROTECTOR,FRONT R |
42520-10H10-000 |
from US $16.41 |
||
|
13
|
13
42530-49H10-000 PROTECTOR,FRONT L |
42530-49H10-000 |
from US $14.68 |
||
|
14
|
14
09116-06200-000 BOLT(6X16) |
09116-06200-000 |
from US $5.07 |
||
|
15
|
15
43911-01B10-000 ROLLER,CHAIN CONTROLRoller, chain control |
43911-01B10-000 |
from US $14.56 |
||
|
16
|
16
09180-08206-000 SPACER(8.5X14X28) |
09180-08206-000 |
from US $8.96 |
||
|
17
|
17
09181-08186-000 SHIM(8X18X0.5)Washer, pump driven gear |
09181-08186-000 |
from US $3.03 |
||
|
18
|
18
09103-08207-000 BOLT(8X45)Bolt, upper |
09103-08207-000 |
from US $1.67 |
||
|
19
|
19
43910-37F00-000 ROLLER,CHAIN |
43910-37F00-000 |
from US $34.59 |
||
|
20
|
20
09181-08111-000 SHIM(8X12X1) |
09181-08111-000 |
from US $1.52 |
||
|
21
|
21
08319-2108A-000 NUTNut, lower |
08319-2108A-000 |
from US $3.35 |
