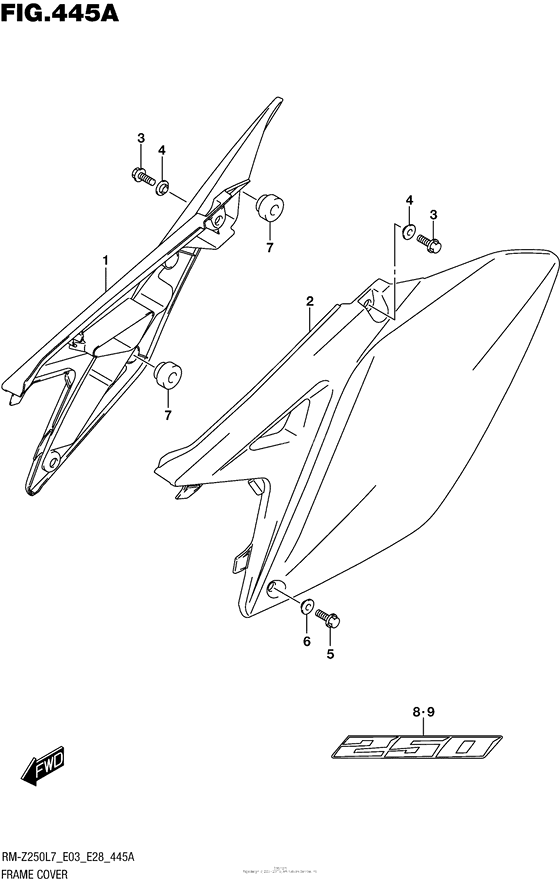

Frame Cover Diagram Suzuki RM-Z250
- Year
- 2017
- Model code
- RM-Z250L7 (2017)
- Sales region
- USA/ Canada
- Engine Capacity
- 250
- Model
- RM-Z250
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
47110-49H00-GY8 COVER,FRAME,R |
47110-49H00-GY8 |
from US $108.52 |
||
|
2
|
2
47210-49H01-GY8 COVER,FRAME,L |
47210-49H01-GY8 |
from US $81.33 |
||
|
3
|
3
01547-0620A-000 Bolt |
01547-0620A-000 |
from US $0.76 |
||
|
4
|
4
47191-28H00-000 WASHER,FRAME COVER & SEAT |
47191-28H00-000 |
from US $5.89 |
||
|
5
|
5
01547-0616A-000 BOLT |
01547-0616A-000 |
from US $0.76 |
||
|
6
|
6
47191-28H00-000 WASHER,FRAME COVER & SEAT |
47191-28H00-000 |
from US $5.89 |
||
|
7
|
7
47161-08G00-000 CUSHIONCushion, muffler |
47161-08G00-000 |
from US $4.71 |
||
|
8
|
8
68135-49H00-GY8 TAPE,FRAME COVER,R |
68135-49H00-GY8 |
from US $10.93 |
||
|
9
|
9
68145-49H00-GY8 TAPE,FRAME COVER,L |
68145-49H00-GY8 |
from US $10.93 |
