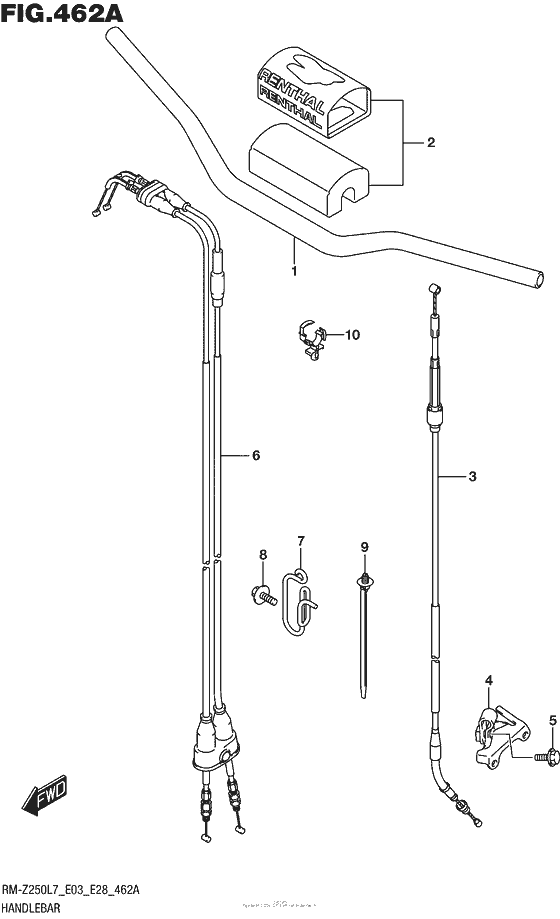

Handlebar Diagram Suzuki RM-Z250
- Year
- 2017
- Model code
- RM-Z250L7 (2017)
- Sales region
- USA/ Canada
- Engine Capacity
- 250
- Model
- RM-Z250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
56111-35G10-000 HANDLEBAR |
56111-35G10-000 |
from US $183.44 |
||
|
2
|
2
56170-35G00-000 PAD SET,HANDLEBARPad, cross bar |
56170-35G00-000 |
from US $80.96 |
||
|
3
|
3
58200-49H00-000
CABLE ASSY,CLUTCH
|
58200-49H00-000 |
— | ||
| replacement | |||||
|
3
|
3
58200-49H01-000 Cable Assy,clutch |
58200-49H01-000 |
from US $37.17 |
||
|
4
|
4
58630-49H00-000 BRACKET,CLUTCH CABLE |
58630-49H00-000 |
from US $7.58 |
||
|
5
|
5
01547-0612A-000 BOLTBolt, push rod guide |
01547-0612A-000 |
from US $0.76 |
||
|
6
|
6
58301-49H10-000
CABLE SET,THROTTLE
|
58301-49H10-000 |
— | ||
| replacement | |||||
|
6
|
6
58301-49H11-000 Cable Set,throttle |
58301-49H11-000 |
from US $69.16 |
||
|
7
|
7
58311-49H00-000 GUIDE,THROTTLE & STARTER CABLE |
58311-49H00-000 |
from US $4.93 |
||
|
8
|
8
09139-06139-000 SCREW(6X16)Screw |
09139-06139-000 |
from US $1.60 |
||
|
9
|
9
09407-17403-000 CLAMP(L:154)Clamp (l:170) |
09407-17403-000 |
from US $2.88 |
||
|
10
|
10
09403-18307-000 CLAMP |
09403-18307-000 |
from US $4.13 |
||
