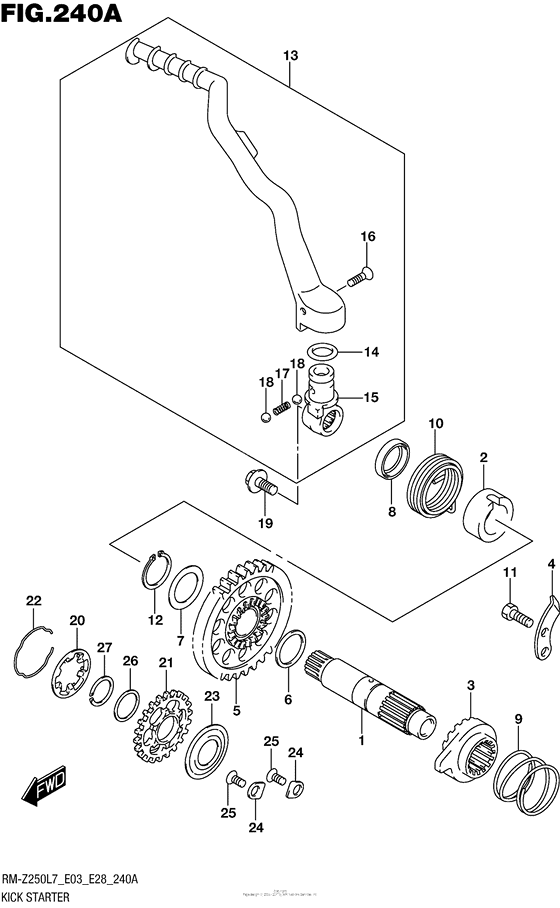

Kick Starter Diagram Suzuki RM-Z250
- Year
- 2017
- Model code
- RM-Z250L7 (2017)
- Sales region
- USA/ Canada
- Engine Capacity
- 250
- Model
- RM-Z250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
26211-49H00-000 SHAFT,KICK STARTER |
26211-49H00-000 |
from US $102.70 |
||
|
2
|
2
26221-49H00-000 GUIDE,KICK STARTER SFT SPRING |
26221-49H00-000 |
from US $8.98 |
||
|
3
|
3
26231-10H00-000 STARTER,KICK |
26231-10H00-000 |
from US $32.20 |
||
|
4
|
4
26232-49H00-000 GUIDE,KICK STARTER |
26232-49H00-000 |
from US $3.97 |
||
|
5
|
5
26240-49H00-000 GEAR COMP,KICK STARTER DRIVE |
26240-49H00-000 |
from US $62.93 |
||
|
6
|
6
09181-18004-000 SHIM(18X22X1) |
09181-18004-000 |
from US $4.70 |
||
|
7
|
7
09181-18005-000 SHIM(18X26X0.5) |
09181-18005-000 |
from US $4.70 |
||
|
8
|
8
09283-18004-000 SEAL,OIL(18X30X8)Oil seal, lh (18x30x8) |
09283-18004-000 |
from US $6.38 |
||
|
9
|
9
09440-31002-000 SPRING |
09440-31002-000 |
from US $2.91 |
||
|
10
|
10
09448-45014-000 SPRING |
09448-45014-000 |
from US $5.18 |
||
|
11
|
11
01500-0612A-000 BOLT |
01500-0612A-000 |
from US $0.76 |
||
|
12
|
12
08331-3118A-000 CIRCLIP |
08331-3118A-000 |
from US $0.91 |
||
|
13
|
13
26300-49H10-000
LEVER ASSY,KICK STARTER
|
26300-49H10-000 |
— | ||
| replacement | |||||
|
13
|
13
26300-49H11-000 Lever Assy,kick Starter |
26300-49H11-000 |
from US $136.16 |
||
|
14
|
14
26313-28E20-000
O RING,KICK STARTER
|
26313-28E20-000 |
— | ||
| replacement | |||||
|
14
|
14
26313-28E21-000 O Ring,kick Starter |
26313-28E21-000 |
from US $1.60 |
||
|
15
|
15
26331-49H00-000 JOINT,KICK STARTER LEVER |
26331-49H00-000 |
from US $27.05 |
||
|
16
|
16
09127-06024-000 SCREW(6X27.5) |
09127-06024-000 |
from US $5.59 |
||
|
17
|
17
09440-05031-000 SPRINGSpring, kick starter |
09440-05031-000 |
from US $0.91 |
||
|
18
|
18
06111-07004-000 BALL |
06111-07004-000 |
from US $0.76 |
||
|
19
|
19
09103-08522-000 BOLT(8X14) |
09103-08522-000 |
from US $1.61 |
||
|
20
|
20
11335-28H00-000 CAP,BREATHER GEAR |
11335-28H00-000 |
from US $6.40 |
||
|
21
|
21
11337-49H00-000 GEAR,BREATHER |
11337-49H00-000 |
from US $58.14 |
||
|
22
|
22
11338-28H00-000 CIRCLIP,BREATHER CAP |
11338-28H00-000 |
from US $3.50 |
||
|
23
|
23
11339-28H00-000 PLATE,BREATHER GEAR |
11339-28H00-000 |
from US $3.31 |
||
|
24
|
24
24741-20A00-000 RETAINER,COUNTER BEARING,RRetainer, cl hsg brg |
24741-20A00-000 |
from US $1.60 |
||
|
25
|
25
09126-06011-000 SCREW(6X12)Screw, retainer mdl |
09126-06011-000 |
from US $0.76 |
||
|
26
|
26
09181-22130-000 SHIM(22X28X0.5)Shim (t:0.5) |
09181-22130-000 |
from US $4.64 |
||
|
27
|
27
09380-22006-000 CIRCLIPCirclip |
09380-22006-000 |
from US $1.82 |
||
