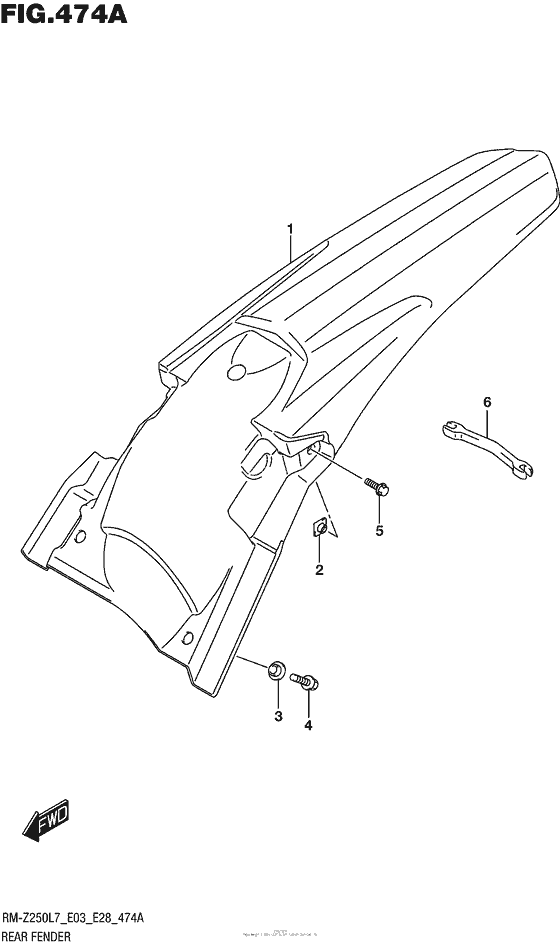

Rear Fender Diagram Suzuki RM-Z250
- Year
- 2017
- Model code
- RM-Z250L7 (2017)
- Sales region
- USA/ Canada
- Engine Capacity
- 250
- Model
- RM-Z250
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
63111-49H01-YU1 FENDER,RR |
63111-49H01-YU1 |
from US $73.90 |
||
|
2
|
2
63131-02J00-000 NUT,RR REFLECTOR |
63131-02J00-000 |
from US $5.93 |
||
|
3
|
3
63191-28H00-000 WASHER |
63191-28H00-000 |
from US $6.48 |
||
|
4
|
4
01547-0620A-000 Bolt |
01547-0620A-000 |
from US $0.76 |
||
|
5
|
5
01547-0616A-000 BOLT |
01547-0616A-000 |
from US $0.76 |
||
|
6
|
6
09813-00134-000 OPEN SPANNER(6.4X6.8)Spanner, open (6.4x6.8) |
09813-00134-000 |
from US $7.95 |
