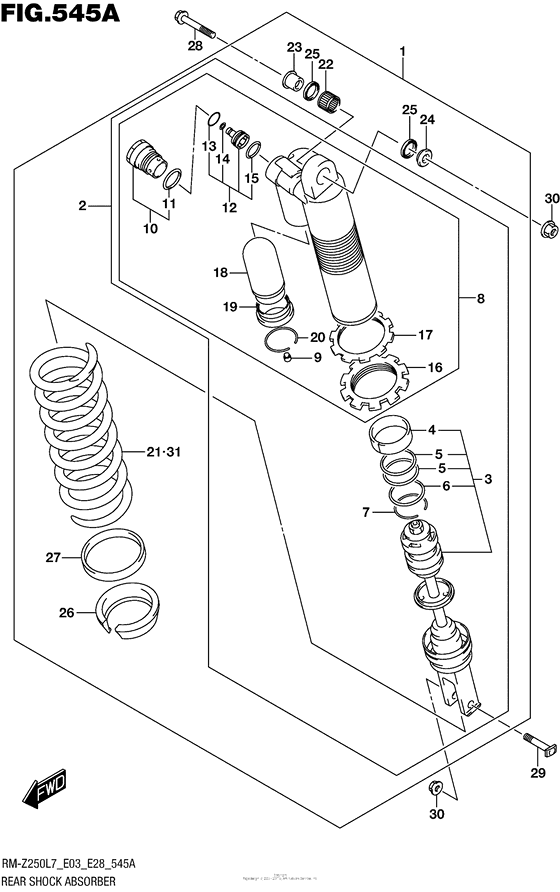

Rear Shock Absorber Diagram Suzuki RM-Z250
- Year
- 2017
- Model code
- RM-Z250L7 (2017)
- Sales region
- USA/ Canada
- Engine Capacity
- 250
- Model
- RM-Z250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
62100-49HF0-019 ABSORBER ASSY,REAR SHOCK(BLACK |
62100-49HF0-019 |
from US $890.56 |
||
|
2
|
2
62210-49HF0-000
New Genuine Part
|
62210-49HF0-000 |
— | ||
|
3
|
3
62120-49HE0-000 ROD SUBASSY,PISTON |
62120-49HE0-000 |
from US $594.88 |
||
|
4
|
4
62131-49HE0-000 RING,PISTON |
62131-49HE0-000 |
from US $18.40 |
||
|
5
|
5
62152-49HE0-000 O RING |
62152-49HE0-000 |
from US $2.65 |
||
|
6
|
6
62153-49HE0-000 O RING |
62153-49HE0-000 |
from US $2.65 |
||
|
7
|
7
62279-49HE0-000 RING,STOP |
62279-49HE0-000 |
from US $1.29 |
||
|
8
|
8
62160-49HE0-000
New Genuine Part
|
62160-49HE0-000 |
— | ||
|
9
|
9
51294-40400-000 CAP,VALVE AIR |
51294-40400-000 |
from US $10.35 |
||
|
10
|
10
62130-49HE0-000 VALVE,ASSY |
62130-49HE0-000 |
from US $141.68 |
||
|
11
|
11
62133-49HE0-000 O RING |
62133-49HE0-000 |
from US $2.58 |
||
|
12
|
12
62170-49HE0-000 VALVE,COMP |
62170-49HE0-000 |
from US $25.21 |
||
|
13
|
13
62135-49HE0-000 WASHER |
62135-49HE0-000 |
from US $1.29 |
||
|
14
|
14
62136-49HE0-000 O RING |
62136-49HE0-000 |
from US $1.10 |
||
|
15
|
15
62134-49HE0-000 O RING |
62134-49HE0-000 |
from US $1.66 |
||
|
16
|
16
62191-49HE0-000 GUIDE,SPRING |
62191-49HE0-000 |
from US $12.88 |
||
|
17
|
17
62194-49HE0-000 NUT |
62194-49HE0-000 |
from US $9.94 |
||
|
18
|
18
62273-49HE0-000 BLADER |
62273-49HE0-000 |
from US $18.40 |
||
|
19
|
19
62275-49HE0-000 GUIDE |
62275-49HE0-000 |
from US $30.54 |
||
|
20
|
20
62277-49HE0-000 RING,STOP |
62277-49HE0-000 |
from US $1.66 |
||
|
21
|
21
62211-49HE0-000 SPRING |
62211-49HE0-000 |
from US $235.52 |
||
|
22
|
22
09263-16033-000 BEARING(16X22X12) |
09263-16033-000 |
from US $9.73 |
||
|
23
|
23
62684-36F00-000 SPACER,UPPER BRG,RSpacer, fr shock abs, r |
62684-36F00-000 |
from US $10.03 |
||
|
24
|
24
62685-36F00-000 SPACER,UPPER BRG,LSpacer, fr shock abs, l |
62685-36F00-000 |
from US $7.30 |
||
|
25
|
25
09284-16005-000 SEAL,OIL(16X22X2.5)Seal, fr shock abs dust |
09284-16005-000 |
from US $4.10 |
||
|
26
|
26
62222-49HE0-000 GUIDE SPRING |
62222-49HE0-000 |
from US $9.20 |
||
|
27
|
27
62221-49HE0-000 GUIDE SPRING |
62221-49HE0-000 |
from US $36.43 |
||
|
28
|
28
62311-28H00-000 BOLT,RR SHOCK ABSORBER UPR |
62311-28H00-000 |
US $11.31 |
||
|
29
|
29
62221-37F30-000 BOLT,RR SHOCK ABSORBER LWR |
62221-37F30-000 |
from US $3.75 |
||
|
30
|
30
09159-10067-000 NUT |
09159-10067-000 |
from US $9.52 |
||
|
31-1
|
31-1
62211-49HG0-000 SPRING,REAR |
62211-49HG0-000 |
US $125.49 |
||
|
31-2
|
31-2
62211-49HH0-000 SPRING,REAR |
62211-49HH0-000 |
US $125.49 |
||
|
31-3
|
31-3
62211-49HJ0-000 SPRING,REAR |
62211-49HJ0-000 |
US $125.49 |
