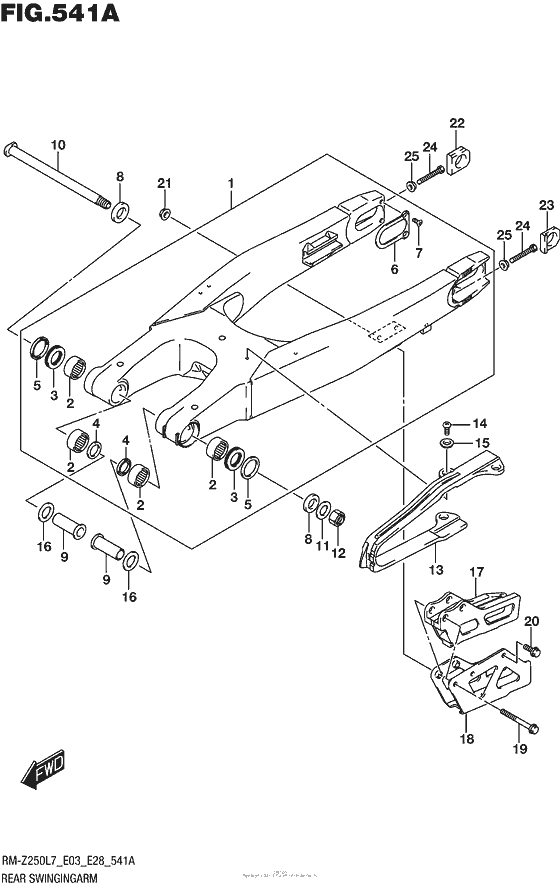

Rear Swingingarm Diagram Suzuki RM-Z250
- Year
- 2017
- Model code
- RM-Z250L7 (2017)
- Sales region
- USA/ Canada
- Engine Capacity
- 250
- Model
- RM-Z250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
61000-49H20-000 SWGARM ASSY,REAR |
61000-49H20-000 |
from US $1,200.56 |
||
|
2
|
2
09263-22070-000 BEARING(22X29X15) |
09263-22070-000 |
from US $9.28 |
||
|
3
|
3
09263-22064-000 BEARING(22X35X2)Bearing, outer (22x35x2) |
09263-22064-000 |
from US $13.12 |
||
|
4
|
4
09285-22001-000
SEAL,OIL(22X29X4)
|
09285-22001-000 |
— | ||
| replacement | |||||
|
4
|
4
09285-22006-000 Seal,oil |
09285-22006-000 |
from US $2.13 |
||
|
5
|
5
61262-36E00-000 SEAL,RR SWGARM PIVOT OUTERSeal, outer (29.2x37x4) |
61262-36E00-000 |
from US $3.65 |
||
|
6
|
6
61128-28H20-000
PLATE,SWING ARM RR
|
61128-28H20-000 |
— | ||
| replacement | |||||
|
6
|
6
61128-28H30-000 PLATE, SWGARM REAR |
61128-28H30-000 |
from US $11.04 |
||
|
7
|
7
09120-05003-000 SCREW(5X10) |
09120-05003-000 |
from US $0.91 |
||
|
8
|
8
61251-36E01-000 SPACER,RR SWGARM PIVOT OUTER |
61251-36E01-000 |
from US $7.04 |
||
|
9
|
9
61252-37F01-000 SPACER,SWGARM PIVOT INNER |
61252-37F01-000 |
from US $14.40 |
||
|
10
|
10
61211-35G00-000 SHAFT,RR SWINGINGARM PIVOT |
61211-35G00-000 |
from US $41.95 |
||
|
11
|
11
08322-0116B-000 WASHER |
08322-0116B-000 |
from US $0.80 |
||
|
12
|
12
09159-16007-000 NUTNut, rear swgarm pivot |
09159-16007-000 |
from US $17 |
||
|
13
|
13
61273-35G10-000 BUFFER,CHAIN TOUCH DEFENSE |
61273-35G10-000 |
from US $37.60 |
||
|
14
|
14
02112-0508A-000 SCREW |
02112-0508A-000 |
from US $0.80 |
||
|
15
|
15
09169-05022-000 WASHER |
09169-05022-000 |
from US $1.44 |
||
|
16
|
16
08211-22365-000 WASHER |
08211-22365-000 |
from US $8.13 |
||
|
17
|
17
61341-35G00-000 GUIDE,CHAIN |
61341-35G00-000 |
from US $36.08 |
||
|
18
|
18
61342-37F00-000 PLATE,CHAIN GUIDE |
61342-37F00-000 |
from US $32.56 |
||
|
19
|
19
01547-0645A-000 Bolt |
01547-0645A-000 |
from US $0.91 |
||
|
20
|
20
01547-0612A-000 BOLTBolt, push rod guide |
01547-0612A-000 |
from US $0.76 |
||
|
21
|
21
08316-1006B-000 NUT |
08316-1006B-000 |
from US $0.76 |
||
|
22
|
22
61445-28H11-000 WASHER,CHAIN ADJUSTER,R |
61445-28H11-000 |
US $55.85 |
||
|
23
|
23
61446-35G01-000 WASHER,CHAIN ADJUSTER,L |
61446-35G01-000 |
from US $11.20 |
||
|
24
|
24
09100-08287-000 BOLT(8X50) |
09100-08287-000 |
from US $1.52 |
||
|
25
|
25
09159-08034-000 NUT |
09159-08034-000 |
from US $1.60 |
||
