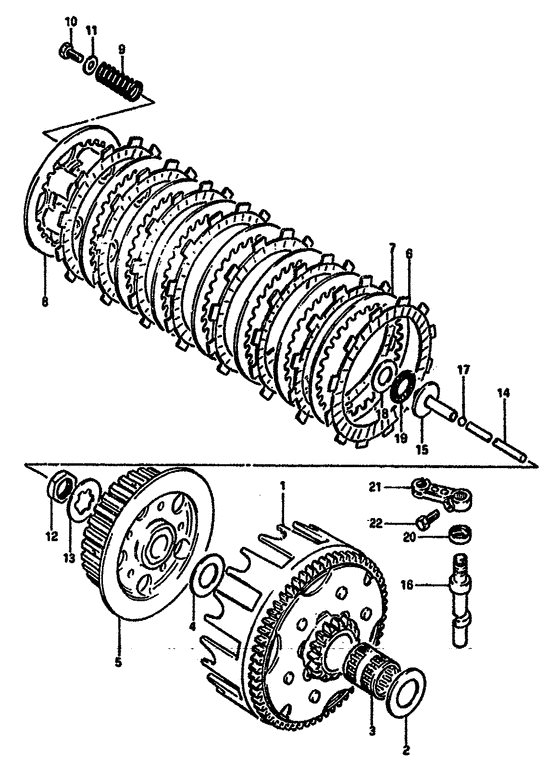

Clutch Diagram Suzuki RM125
- Year
- 1984
- Model code
- RM125E(E/F) E
- Engine Capacity
- 125
- Model
- RM125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
21200-14103-000
Gear,primary dr
Gear assy,primary driven; Nt:60/16 |
21200-14103-000 |
— | ||
|
2
|
2
08211-20321-000 Washer,rh |
08211-20321-000 |
US $2.66 |
||
| replacement | |||||
|
2
|
2
09181-20223-000 SHIM(20X32X1)Washer, sec drive bevel gr |
09181-20223-000 |
from US $1.82 |
||
|
3
|
3
09263-20023-000 BEARING(20X25X26)Rc 20x25x26 brg 8x3 |
09263-20023-000 |
from US $14.24 |
||
|
4
|
4
08211-17302-000 WASHER |
08211-17302-000 |
from US $4.28 |
||
|
5
|
5
21410-14103-000
Hub,clutch slee
|
21410-14103-000 |
— | ||
|
6
|
6
21441-11900-000
Plate, drive
Model e |
21441-11900-000 |
— | ||
| replacement | |||||
|
6
|
6
21441-22A01-000 Plate,clutch DrivePlate, drive Model e |
21441-22A01-000 |
from US $15.96 |
||
|
6
|
6
21441-28301-000
Plate, drive
Model f,from 21441-13a00 |
21441-28301-000 |
— | ||
| replacement | |||||
|
6
|
6
21441-13A01-000 PLATE,CLUTCH DRIVE(T:3.0)Model f,from 21441-13a00 |
21441-13A01-000 |
from US $11.70 |
||
|
7
|
7
21451-11900-000 Plate,clutch drivenModel e |
21451-11900-000 |
from US $4.93 |
||
| replacement | |||||
|
7
|
7
21451-01B40-000 PLATE,DRIVEN(T:1.4)Plate, driven Model e |
21451-01B40-000 |
from US $6.71 |
||
|
7
|
7
21451-28000-000
Plate, driven (t:1.6)
Model f |
21451-28000-000 |
— | ||
| replacement | |||||
|
7
|
7
21451-19A00-000 Plate,clutch drivenPlate, driven (t:1.6) Model f |
21451-19A00-000 |
from US $8.06 |
||
|
8
|
8
21462-14102-000
Disk,clutch pre
Plate,pressure; |
21462-14102-000 |
— | ||
| replacements | |||||
|
8
|
8
21462-14103-000
Disc, clutch pressure
Plate,pressure; |
21462-14103-000 |
— | ||
|
8
|
8
21462-14130-000 DISC,CL PRESSUREPlate,pressure; |
21462-14130-000 |
from US $14.90 |
||
|
9
|
9
09440-15014-000 SPRING |
09440-15014-000 |
from US $1.76 |
||
|
10
|
10
09100-05002-000 BOLT(5X16)Bolt (5x12) |
09100-05002-000 |
from US $1.07 |
||
|
11
|
11
09160-05017-000
Washer
|
09160-05017-000 |
— | ||
| replacement | |||||
|
11
|
11
09160-05043-000 WASHER(5.5X16X1.2)Washer, 5.5x16x1.20 |
09160-05043-000 |
from US $0.91 |
||
|
12
|
12
09140-16001-000 NUT |
09140-16001-000 |
US $17.30 |
||
| replacement | |||||
|
12
|
12
09140-16005-000 NUTNut |
09140-16005-000 |
from US $2.72 |
||
|
13
|
13
09167-17002-000 WASHER,LOCKWasher |
09167-17002-000 |
from US $1.12 |
||
|
14
|
14
23111-14101-000 ROD,CLUTCH PUSHRod, clutch push Rod,push; |
23111-14101-000 |
from US $11.36 |
||
|
15
|
15
23121-14111-000
Piece push
|
23121-14111-000 |
— | ||
|
16
|
16
23261-14501-000
Camshaft,release
From 23261-14500 |
23261-14501-000 |
— | ||
| replacement | |||||
|
16
|
16
23261-14104-000 CAMSHAFT,CLUTCH RELEASECamshaft, release From 23261-14500 |
23261-14104-000 |
from US $39.92 |
||
|
17
|
17
06111-07004-000 BALL |
06111-07004-000 |
from US $0.76 |
||
|
18
|
18
09160-15015-000 Washer (15x28x1) |
09160-15015-000 |
US $3.76 |
||
| replacement | |||||
|
18
|
18
09160-15045-000 WASHER(15.5X28X1)Washer (15.5x28x1.0) |
09160-15045-000 |
from US $1.98 |
||
|
19
|
19
09263-15003-000 BEARING(15X28X2)Bearing Thrust bearing; |
09263-15003-000 |
from US $5.62 |
||
|
20
|
20
09285-10002-000
New Genuine Part
|
09285-10002-000 |
— | ||
| replacement | |||||
|
20
|
20
09285-10004-000 SEAL,OIL(10X17X5) |
09285-10004-000 |
from US $1.98 |
||
|
21
|
21
23271-14101-000 Arm,release |
23271-14101-000 |
US $18.62 |
||
| replacement | |||||
|
21
|
21
23271-14103-000 ARM,CLUTCH RELEASE |
23271-14103-000 |
from US $23.55 |
||
|
22
|
22
01107-06168-000
Bolt
|
01107-06168-000 |
— | ||
| replacement | |||||
|
22
|
22
01500-06167-000 BOLTBolt, fuel cooler |
01500-06167-000 |
from US $0.76 |
||
