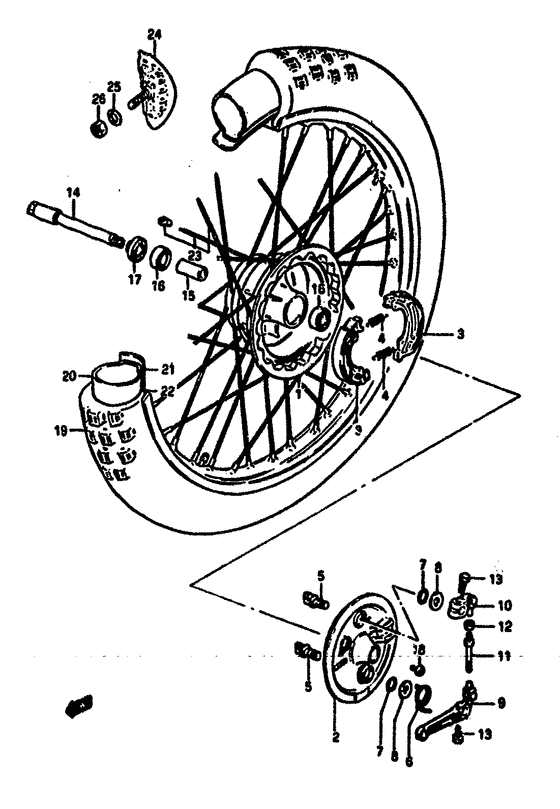

Front wheel (Model e) Diagram Suzuki RM125
- Year
- 1984
- Model code
- RM125E(E/F) E
- Engine Capacity
- 125
- Model
- RM125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
54110-14121-000
Hub,front
Hub,front wheel; |
54110-14121-000 |
— | ||
|
2
|
2
54210-14500-000
Panel,front hub
|
54210-14500-000 |
— | ||
|
3
|
3
54410-14300-000
Shoe,brake
|
54410-14300-000 |
— | ||
| replacement | |||||
|
3
|
3
54400-14840-000 SHOE SET,BRAKE |
54400-14840-000 |
from US $89.42 |
||
|
4
|
4
09443-09017-000
SPRING
|
09443-09017-000 |
— | ||
|
5
|
5
54441-14310-000
Cam,brake
|
54441-14310-000 |
— | ||
|
6
|
6
09448-32014-000
Spring
|
09448-32014-000 |
— | ||
|
7
|
7
09280-14008-000
O ring (id:13.8)
|
09280-14008-000 |
— | ||
|
8
|
8
09160-14003-000 Washer |
09160-14003-000 |
from US $0.84 |
||
| replacement | |||||
|
8
|
8
09160-14054-000 WASHER(14.5X22X1)Washer (14.5x22x1) |
09160-14054-000 |
from US $0.84 |
||
|
9
|
9
54400-14500-000
Lever assy,brake cam no.1
|
54400-14500-000 |
— | ||
|
10
|
10
54500-14300-000
Lever assy,brake cam no.2
|
54500-14300-000 |
— | ||
|
11
|
11
54471-14300-000
Con rod cam lev
Rod,brake cam; |
54471-14300-000 |
— | ||
|
12
|
12
08310-22068-000
Nut
|
08310-22068-000 |
— | ||
| replacement | |||||
|
12
|
12
08310-00067-000 NUT |
08310-00067-000 |
from US $0.76 |
||
|
13
|
13
01107-06258-000
Bolt
|
01107-06258-000 |
— | ||
| replacement | |||||
|
13
|
13
01500-06257-000 Bolt |
01500-06257-000 |
from US $3.11 |
||
|
14
|
14
54711-14500-000
Axle fr
Axle,front; |
54711-14500-000 |
— | ||
|
15
|
15
54730-14100-000
Spacer fr hub b
|
54730-14100-000 |
— | ||
|
16
|
16
09262-15011-000
B1 15x35x11 bea
|
09262-15011-000 |
— | ||
| replacement | |||||
|
16
|
16
09262-15024-000 BEARING(15X35X11) |
09262-15024-000 |
from US $17.66 |
||
|
17
|
17
54740-14200-000
Spacer front ax
Spacer,rh; |
54740-14200-000 |
— | ||
|
18
|
18
02112-06108-000
Screw
|
02112-06108-000 |
— | ||
| replacement | |||||
|
18
|
18
02112-06107-000 SCREW |
02112-06107-000 |
from US $0.76 |
||
|
19
|
19
55100-14540-000
Tire fr 90/80-2
Tire,front (90/80-21) dunlop; |
55100-14540-000 |
— | ||
|
20
|
20
55200-40450-000
Tube,inner
|
55200-40450-000 |
— | ||
| replacement | |||||
|
20
|
20
55200-16510-000 TUBETube assy, wheel inner |
55200-16510-000 |
US $51.75 |
||
|
21
|
21
55261-40450-000
Protector,inner tube
|
55261-40450-000 |
— | ||
| replacement | |||||
|
21
|
21
55261-14540-000 PROTECTOR,WHEEL INNERProtector, inner tube |
55261-14540-000 |
US $6.14 |
||
|
22
|
22
55311-14500-000
Rim fr wheel 1.
Rim,wheel (1.60-21); |
55311-14500-000 |
— | ||
|
23
|
23
55320-14111-000
Spoke assy fr w
|
55320-14111-000 |
— | ||
|
24
|
24
65270-14300-000 STOPPER,BEADStopper,bead; |
65270-14300-000 |
US $60.52 |
||
|
25
|
25
08322-11088-000
Washer
|
08322-11088-000 |
— | ||
| replacement | |||||
|
25
|
25
08322-01087-000 WASHERLock washer |
08322-01087-000 |
from US $0.76 |
||
|
26
|
26
08310-22088-000
Nut
|
08310-22088-000 |
— | ||
| replacement | |||||
|
26
|
26
08310-00087-000 NUT |
08310-00087-000 |
from US $0.76 |
||
