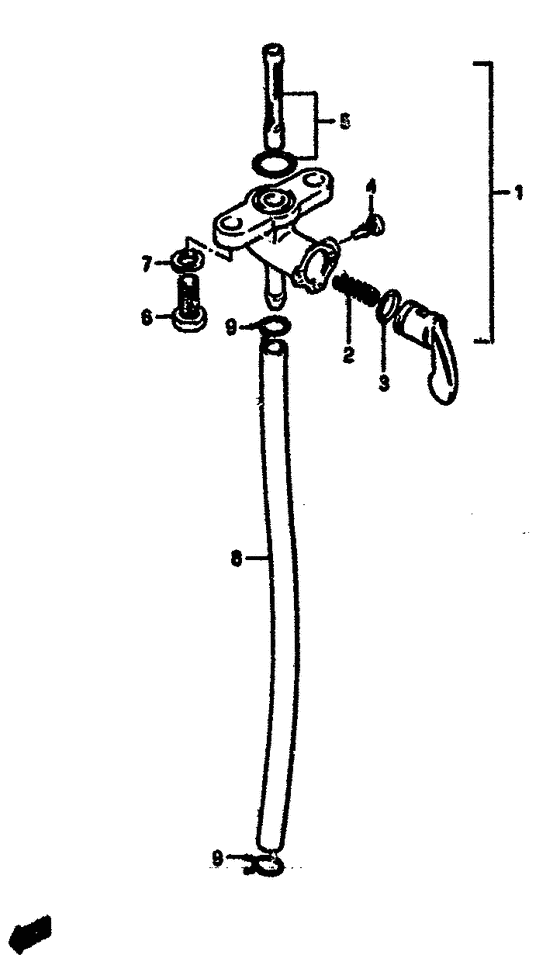

Fuel cock Diagram Suzuki RM125
- Year
- 1984
- Model code
- RM125E(E/F) E
- Engine Capacity
- 125
- Model
- RM125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
44300-41371-000 COCK ASSY,FUELCock assy,fuel; |
44300-41371-000 |
from US $28.12 |
||
|
2
|
2
44357-41370-000
Spring
|
44357-41370-000 |
— | ||
| replacement | |||||
|
2
|
2
44357-32470-000 SPRING |
44357-32470-000 |
from US $2.58 |
||
|
3
|
3
44353-41370-000 O RING,LEVERO ring,lever O ring; |
44353-41370-000 |
from US $1.98 |
||
|
4
|
4
44343-41370-000 SCREWScrew; |
44343-41370-000 |
from US $1.82 |
||
|
5
|
5
44300-41810-000 FILTER SETFuel cock filter set |
44300-41810-000 |
from US $6.40 |
||
|
6
|
6
02112-06168-000
Screw, earth
|
02112-06168-000 |
— | ||
| replacement | |||||
|
6
|
6
02112-06167-000 SCREW |
02112-06167-000 |
from US $0.80 |
||
|
7
|
7
08321-21068-000
Lock washer
|
08321-21068-000 |
— | ||
| replacement | |||||
|
7
|
7
08321-01067-000 WASHER,LOCK |
08321-01067-000 |
from US $0.76 |
||
|
8
|
8
09343-05165-000 Hose, vacuum (l:890->30) |
09343-05165-000 |
US $16.40 |
||
| replacements | |||||
|
8
|
8
09352-50823-00B
HOSE(5X8.2X2000)
|
09352-50823-00B |
— | ||
|
8
|
8
09352-50005-00B Hose(5X8.2X2000) |
09352-50005-00B |
from US $9.27 |
||
|
9
|
9
09401-08404-000
Clip
|
09401-08404-000 |
— | ||
| replacement | |||||
|
9
|
9
09401-08301-000 CLIP |
09401-08301-000 |
from US $0.96 |
||
