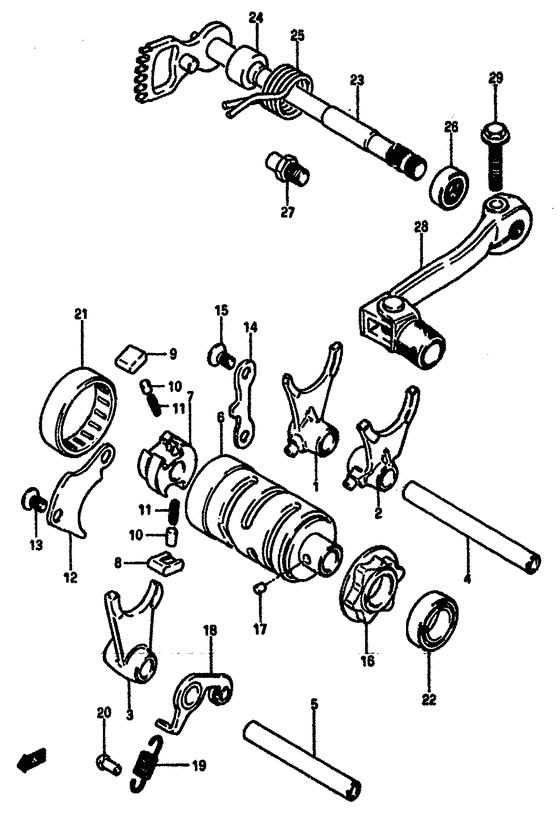

Gear shifting Diagram Suzuki RM125
- Year
- 1984
- Model code
- RM125E(E/F) E
- Engine Capacity
- 125
- Model
- RM125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
25211-41300-000 Fork, gear shifting no. 1 |
25211-41300-000 |
US $69.90 |
||
| replacement | |||||
|
1
|
1
25211-41301-000 FORK,GEAR SHIFT NO.1Fork, gear shifting (1) |
25211-41301-000 |
from US $46.37 |
||
|
2
|
2
25221-14500-000
Fork,no. 2
|
25221-14500-000 |
— | ||
| replacement | |||||
|
2
|
2
25221-14501-000
FORK,GEAR SHIFT NO.2
|
25221-14501-000 |
— | ||
|
3
|
3
25221-41301-000
Fork, gear shifting (2)
~e.no.108422 |
25221-41301-000 |
— | ||
| replacement | |||||
|
3
|
3
25221-41X00-000 FORK,GEAR SHIFT NO.2Gear shift fork 2 ~e.no.108422 |
25221-41X00-000 |
from US $46.37 |
||
|
3
|
3
25231-14500-000
Fork,no. 3
E.no.108423~ |
25231-14500-000 |
— | ||
| replacement | |||||
|
3
|
3
25231-14X01-000
New Genuine Part
E.no.108423~ |
25231-14X01-000 |
— | ||
|
4
|
4
25411-14500-000
Shaft,no. 1 (l:95)
|
25411-14500-000 |
— | ||
| replacement | |||||
|
4
|
4
25411-20A11-000 SHAFT,GEAR SHIFT FORKShaft, fork no.1 |
25411-20A11-000 |
from US $10.50 |
||
|
5
|
5
25421-14500-000
Shaft,no. 2 (l:80)
Shaft,no.2 (l:80); |
25421-14500-000 |
— | ||
|
6
|
6
25310-14500-000
Cam
Model e |
25310-14500-000 |
— | ||
| replacements | |||||
|
6
|
6
04221-04089-000 PINPin, bal sprocket driven Model e |
04221-04089-000 |
from US $0.76 |
||
|
6
|
6
04221-04069-000 PINPin, oil pump drive gear Model e |
04221-04069-000 |
from US $0.76 |
||
|
6
|
6
25310-14502-000
New Genuine Part
Model e |
25310-14502-000 |
— | ||
|
6
|
6
06211-04063-000
Roller
Model e |
06211-04063-000 |
— | ||
|
6
|
6
25310-14501-000
Cam
Model f |
25310-14501-000 |
— | ||
| replacements | |||||
|
6
|
6
04221-04069-000 PINPin, oil pump drive gear Model f |
04221-04069-000 |
from US $0.76 |
||
|
6
|
6
25310-14502-000
New Genuine Part
Model f |
25310-14502-000 |
— | ||
|
6
|
6
06211-04063-000
Roller
Model f |
06211-04063-000 |
— | ||
|
7
|
7
25322-31301-000
Gear, cam driven
|
25322-31301-000 |
— | ||
| replacement | |||||
|
7
|
7
25322-31310-000 GEAR,GEAR SHIFT CAM DRIVEN |
25322-31310-000 |
from US $15.96 |
||
|
8
|
8
25323-34200-000
Pawl, (1)
|
25323-34200-000 |
— | ||
| replacement | |||||
|
8
|
8
25323-34201-000 PAWL,GEAR SHIFT NO.1Pawl, no.1 |
25323-34201-000 |
from US $6.23 |
||
|
9
|
9
25324-34200-000
Pawl, (2)
|
25324-34200-000 |
— | ||
| replacement | |||||
|
9
|
9
25324-34201-000 PAWL,GEAR SHIFT NO.2Pawl, no.2 |
25324-34201-000 |
from US $6.23 |
||
|
10
|
10
09261-05003-000 PIN(5X8)Pin |
09261-05003-000 |
from US $1.22 |
||
|
11
|
11
09440-04003-000 SPRINGSpring; |
09440-04003-000 |
from US $1.06 |
||
|
12
|
12
25331-11001-000 LIFTER,GEAR SHIFT PAWLLifter, pawl Lifter,pawl; |
25331-11001-000 |
from US $3.31 |
||
|
13
|
13
02122-06128-000
Screw
|
02122-06128-000 |
— | ||
| replacement | |||||
|
13
|
13
02122-06127-000 SCREW |
02122-06127-000 |
from US $0.80 |
||
|
14
|
14
25341-14500-000
Guide shift cam
|
25341-14500-000 |
— | ||
|
15
|
15
02122-06128-000
Screw
|
02122-06128-000 |
— | ||
| replacement | |||||
|
15
|
15
02122-06127-000 SCREW |
02122-06127-000 |
from US $0.80 |
||
|
16
|
16
25381-14310-000
Plate,cam stopp
Plate,stopper; |
25381-14310-000 |
— | ||
|
17
|
17
06211-04063-000
Roller
Model e |
06211-04063-000 |
— | ||
|
17
|
17
04221-04089-000 PINPin, bal sprocket driven Pin; Model f |
04221-04089-000 |
from US $0.76 |
||
|
18
|
18
25350-14501-000
Stopper gear sh
Stopper,cam; |
25350-14501-000 |
— | ||
|
19
|
19
09443-08036-000
Spring
|
09443-08036-000 |
— | ||
|
20
|
20
09220-04001-000 Spring hook |
09220-04001-000 |
US $1.31 |
||
| replacement | |||||
|
20
|
20
09223-04001-000 RIVETPin |
09223-04001-000 |
from US $2.30 |
||
|
21
|
21
09263-41001-000
Bearing,rh
|
09263-41001-000 |
— | ||
| replacement | |||||
|
21
|
21
09263-41002-000
BEARING(41X47X12)
|
09263-41002-000 |
— | ||
|
22
|
22
08113-69030-000 BEARINGBearing (l) Bearing (l); |
08113-69030-000 |
from US $16.56 |
||
|
23
|
23
25510-14111-000
Shaft,gear shifting
|
25510-14111-000 |
— | ||
| replacement | |||||
|
23
|
23
25510-141V1-000
SHAFT,GEAR SHIFT
|
25510-141V1-000 |
— | ||
|
24
|
24
09180-12083-000 SPACER(12X20X15.3)Spacer (12x20x15.3) Spacer; |
09180-12083-000 |
from US $1.68 |
||
|
25
|
25
09444-26017-000 SPRING |
09444-26017-000 |
from US $6.26 |
||
|
26
|
26
09285-12002-000
Shift shaft oil
|
09285-12002-000 |
— | ||
| replacement | |||||
|
26
|
26
09285-12006-000 SEAL,OIL(12X22X9)Oil seal (12x22x9) |
09285-12006-000 |
from US $2.58 |
||
|
27
|
27
25671-01000-000
Change arm stop
Stopper,arm; |
25671-01000-000 |
— | ||
| replacement | |||||
|
27
|
27
25671-01011-000 STOPPER,GEAR SHIFT ARMStopper,arm; |
25671-01011-000 |
from US $1.92 |
||
|
28
|
28
25600-14500-000
LEVER ASSY,GEAR SHIFT
|
25600-14500-000 |
— | ||
|
29
|
29
01517-06308-000
Bolt
|
01517-06308-000 |
— | ||
| replacement | |||||
|
29
|
29
01550-06307-000 Bolt |
01550-06307-000 |
from US $0.91 |
||
