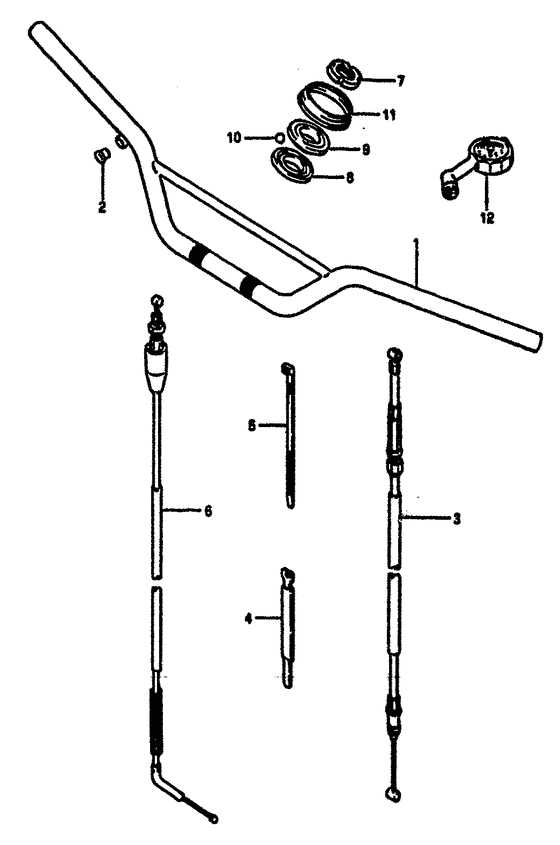

Handlebar (Model f) Diagram Suzuki RM125
- Year
- 1984
- Model code
- RM125E(E/F) E
- Engine Capacity
- 125
- Model
- RM125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
56110-14510-19T
Handlebar
Handlebar (gold); |
56110-14510-19T |
— | ||
|
2
|
2
09250-10001-000 CAP(OD:14) |
09250-10001-000 |
from US $2.94 |
||
|
3
|
3
58210-14500-000
CABLE ASSY,CLUTCH
|
58210-14500-000 |
— | ||
|
4
|
4
09407-25301-000
CLAMP(L:250)
Clamp,no.1; |
09407-25301-000 |
— | ||
| replacement | |||||
|
4
|
4
09407-25302-000
New Genuine Part
Clamp,no.1; |
09407-25302-000 |
— | ||
|
5
|
5
09407-25401-000 CLAMP(L:235)Clamp (l:235) Clamp,no.2; |
09407-25401-000 |
from US $2.08 |
||
|
6
|
6
58300-14500-000
Cable assy,throttle
|
58300-14500-000 |
— | ||
| replacement | |||||
|
6
|
6
58300-40X03-000
Cable assy,throttle
|
58300-40X03-000 |
— | ||
|
7
|
7
51631-40200-000 NUT,STEERING STEMNut,steering stem; |
51631-40200-000 |
US $14.67 |
||
|
8
|
8
51611-40200-000
Race, steering inner lower
|
51611-40200-000 |
— | ||
| replacement | |||||
|
8
|
8
51611-40201-000 RACE,STEERING INNER (SUJ)Race, steering inner upper |
51611-40201-000 |
US $16.96 |
||
|
9
|
9
51621-40200-000
Race,steering outer
|
51621-40200-000 |
— | ||
| replacement | |||||
|
9
|
9
51621-08D00-000 LACE,STEERING OUTER UPRRace, steering outer |
51621-08D00-000 |
US $23.40 |
||
|
10
|
10
06111-08003-000 BALLSteel ball lower Steel ball; |
06111-08003-000 |
from US $0.77 |
||
|
11
|
11
51643-40200-000 SEAL,STEERING UPR DUSTDust seal Dust seal,upper; |
51643-40200-000 |
from US $6.15 |
||
|
12
|
12
96200-41330-000
GAUGE ASSY,AIR PRESSURE
|
96200-41330-000 |
— | ||
