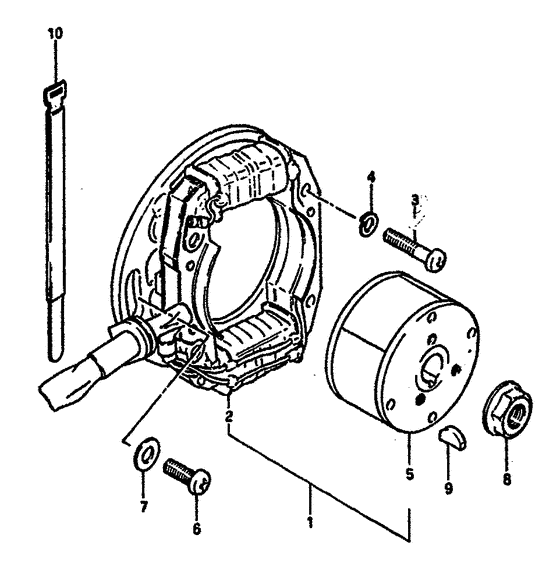

Magneto Diagram Suzuki RM125
- Year
- 1984
- Model code
- RM125E(E/F) E
- Engine Capacity
- 125
- Model
- RM125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
32100-14500-000
Magneto assy
|
32100-14500-000 |
— | ||
|
2
|
2
32101-14500-000
Stator assy
|
32101-14500-000 |
— | ||
|
3
|
3
02112-05208-000
Screw
|
02112-05208-000 |
— | ||
| replacement | |||||
|
3
|
3
02112-05207-000 SCREW |
02112-05207-000 |
from US $3.11 |
||
|
4
|
4
08321-21058-000
Lock washer
|
08321-21058-000 |
— | ||
| replacement | |||||
|
4
|
4
08321-0105A-000 WASHER,LOCK |
08321-0105A-000 |
from US $0.76 |
||
|
5
|
5
32102-14500-000
Rotor
|
32102-14500-000 |
— | ||
|
6
|
6
02112-06168-000
Screw, earth
|
02112-06168-000 |
— | ||
| replacement | |||||
|
6
|
6
02112-06167-000 SCREW |
02112-06167-000 |
from US $0.80 |
||
|
7
|
7
08322-21068-000
Washer
|
08322-21068-000 |
— | ||
| replacement | |||||
|
7
|
7
08322-01067-000 WASHER |
08322-01067-000 |
from US $0.76 |
||
|
8
|
8
08316-16108-000
Nut
|
08316-16108-000 |
— | ||
| replacement | |||||
|
8
|
8
08316-10107-000 NUT |
08316-10107-000 |
from US $3.77 |
||
|
9
|
9
08341-31049-000
Key
|
08341-31049-000 |
— | ||
| replacement | |||||
|
9
|
9
09420-04008-000 KEY |
09420-04008-000 |
from US $1.76 |
||
|
10
|
10
09407-18402-000 CLAMP(L:165)Clamp (l:165) Clamp (l:185); |
09407-18402-000 |
from US $1.98 |
||
|
10
|
10
09407-18301-000
CLAMP
Clamp (l:180); |
09407-18301-000 |
— | ||
| replacement | |||||
|
10
|
10
09407-18302-000 ClampClamp (l:180); |
09407-18302-000 |
from US $2.08 |
||
