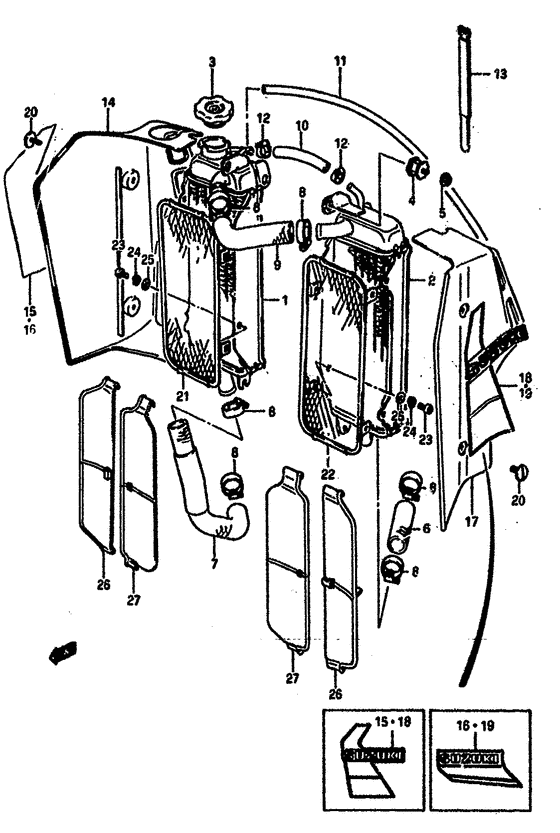

Radiator Diagram Suzuki RM125
- Year
- 1984
- Model code
- RM125E(E/F) E
- Engine Capacity
- 125
- Model
- RM125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17710-14501-000
Radiator,rh
From 17711-14500 |
17710-14501-000 |
— | ||
| replacement | |||||
|
1
|
1
17710-14502-000
New Genuine Part
From 17711-14500 |
17710-14502-000 |
— | ||
|
2
|
2
17720-14501-000
Radiator,lh
From 17720-14500 |
17720-14501-000 |
— | ||
| replacement | |||||
|
2
|
2
17720-14502-000
New Genuine Part
From 17720-14500 |
17720-14502-000 |
— | ||
|
3
|
3
17730-14501-000 Cap, radiator (1.1)From 17730-20921 |
17730-14501-000 |
US $22.42 |
||
| replacement | |||||
|
3
|
3
17730-19D11-000 CAP,RADIATOR(1.1)From 17730-20921 |
17730-19D11-000 |
from US $15.68 |
||
|
4
|
4
17788-16700-000
Bolt,radiaotr cushion
Model e |
17788-16700-000 |
— | ||
| replacements | |||||
|
4
|
4
17788-14500-000
BOLT,RADIATOR CUSHION
Model e |
17788-14500-000 |
— | ||
| replacement | |||||
|
4
|
4
17788-14501-000 Bolt,radiator CushionModel e |
17788-14501-000 |
from US $11.85 |
||
|
4
|
4
17788-14501-000 Bolt,radiator CushionModel e |
17788-14501-000 |
from US $11.85 |
||
|
4
|
4
17788-14500-000
BOLT,RADIATOR CUSHION
Cushion; Model f |
17788-14500-000 |
— | ||
| replacement | |||||
|
4
|
4
17788-14501-000 Bolt,radiator CushionCushion; Model f |
17788-14501-000 |
from US $11.85 |
||
|
5
|
5
08316-16064-000
Nut
|
08316-16064-000 |
— | ||
| replacement | |||||
|
5
|
5
08316-1006B-000 NUT |
08316-1006B-000 |
from US $0.76 |
||
|
6
|
6
17851-14500-000
Hose,inlet
|
17851-14500-000 |
— | ||
| replacement | |||||
|
6
|
6
17851-01A00-000 HOSE,RADIATOR INLETHose, head outlet joint |
17851-01A00-000 |
from US $18.24 |
||
|
7
|
7
17852-14500-000
Hose,outlet
|
17852-14500-000 |
— | ||
|
8
|
8
09402-25501-000
Clamp
|
09402-25501-000 |
— | ||
| replacement | |||||
|
8
|
8
09402-28511-000 CLAMP |
09402-28511-000 |
from US $2.89 |
||
|
9
|
9
17853-14500-000
Hose joint
|
17853-14500-000 |
— | ||
|
10
|
10
17854-14500-000
Hose bypass
|
17854-14500-000 |
— | ||
|
11
|
11
09343-05280-000
Hose (l:680-+650)
|
09343-05280-000 |
— | ||
| replacement | |||||
|
11
|
11
09352-50901-00B HOSE(5X9X2000)Hose, reservoir tank |
09352-50901-00B |
from US $12 |
||
|
12
|
12
09402-15501-000
Clamp
|
09402-15501-000 |
— | ||
| replacement | |||||
|
12
|
12
09402-17511-000 CLAMP |
09402-17511-000 |
US $52.60 |
||
|
13
|
13
09407-18301-000
CLAMP
Clamp; Model e |
09407-18301-000 |
— | ||
| replacement | |||||
|
13
|
13
09407-18302-000 ClampClamp; Model e |
09407-18302-000 |
from US $2.08 |
||
|
14
|
14
17761-14500-163
Cover,rh
|
17761-14500-163 |
— | ||
| replacement | |||||
|
14
|
14
17761-14500-25Y
COVER,RADIATOR,R(YELLOW)
|
17761-14500-25Y |
— | ||
|
15
|
15
68660-14550-82M
Tape,rh
Model e |
68660-14550-82M |
— | ||
|
16
|
16
68660-14510-95C
Tape set rad co
Model f |
68660-14510-95C |
— | ||
|
17
|
17
17762-14500-163
Cover,lh
|
17762-14500-163 |
— | ||
| replacement | |||||
|
17
|
17
17762-14500-25Y
COVER,RADIATOR,L(YELLOW)
|
17762-14500-25Y |
— | ||
|
18
|
18
68670-14500-82M
Tape set
Model e |
68670-14500-82M |
— | ||
|
19
|
19
68670-14510-95C
Tape,lh
Model f |
68670-14510-95C |
— | ||
| replacement | |||||
|
19
|
19
68670-01B10-9BV
Tape set,rdtr c
Model f |
68670-01B10-9BV |
— | ||
|
20
|
20
09125-06045-000 SCREW(6X14) |
09125-06045-000 |
from US $12.70 |
||
|
21
|
21
17810-14500-000
Bumper radiator
Bumper,radiator,rh; |
17810-14500-000 |
— | ||
|
22
|
22
17820-14500-000
Bumper radiator
Bumper,radiator,lh; |
17820-14500-000 |
— | ||
|
23
|
23
02112-06105-000
Screw
|
02112-06105-000 |
— | ||
| replacement | |||||
|
23
|
23
02112-0610B-000 SCREW |
02112-0610B-000 |
from US $0.76 |
||
|
24
|
24
08321-21065-000
Lock washer
|
08321-21065-000 |
— | ||
| replacement | |||||
|
24
|
24
08321-0106A-000 WASHER,LOCK |
08321-0106A-000 |
from US $0.76 |
||
|
25
|
25
08322-21064-000
Washer
|
08322-21064-000 |
— | ||
| replacement | |||||
|
25
|
25
08322-0106B-000 WASHER |
08322-0106B-000 |
from US $0.76 |
||
|
26
|
26
17831-14500-000
Louver radiator
Louver,radiator,no.1; |
17831-14500-000 |
— | ||
|
27
|
27
17832-14500-000
Louver radiator
Louver,radiator,no.2; |
17832-14500-000 |
— | ||
