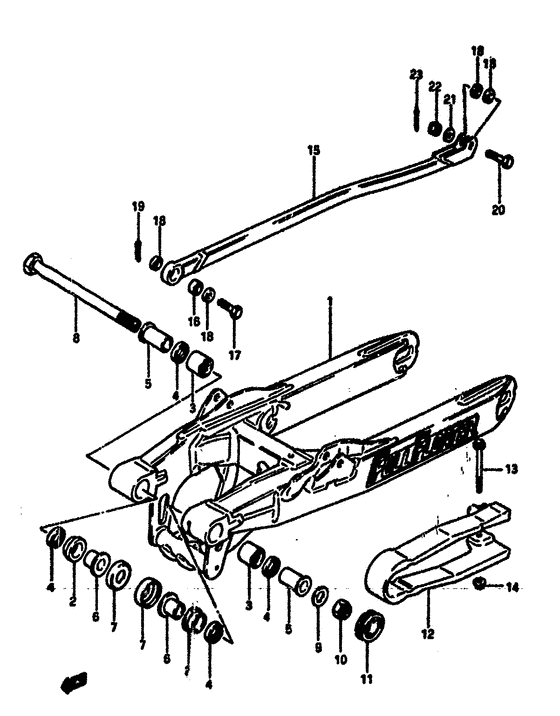

Rear swinging arm Diagram Suzuki RM125
- Year
- 1984
- Model code
- RM125E(E/F) E
- Engine Capacity
- 125
- Model
- RM125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
61000-14500-000
Swinging arm assy
|
61000-14500-000 |
— | ||
|
2
|
2
61261-14101-000 BUSH,RR SWINGINGARM PIVOTBushing swing arm p |
61261-14101-000 |
from US $12.29 |
||
|
3
|
3
09263-20041-000 BEARING(20X27X20) |
09263-20041-000 |
from US $15.46 |
||
|
4
|
4
09285-20005-000
Oil seal
|
09285-20005-000 |
— | ||
| replacement | |||||
|
4
|
4
09283-20031-000 SEAL,OIL(20X27X5)Oil seal |
09283-20031-000 |
from US $3.19 |
||
|
5
|
5
61251-14100-000
SPACER,RR SWGARM PIVOT
|
61251-14100-000 |
— | ||
|
6
|
6
61252-14100-000 SPACER,RR SWGARM PIVOT INNERSpacer, inner Spacer,inner; |
61252-14100-000 |
US $16.75 |
||
|
7
|
7
61262-40400-000
COVER,RR SWGARM DUST SEAL
|
61262-40400-000 |
— | ||
| replacement | |||||
|
7
|
7
61262-40401-000 Seal,dust |
61262-40401-000 |
from US $4.86 |
||
|
8
|
8
61211-14500-000
Shaft pivot
|
61211-14500-000 |
— | ||
|
9
|
9
09160-14027-000 WASHER(14.2X24X2.3)Washer |
09160-14027-000 |
from US $3.30 |
||
|
10
|
10
09159-14013-000
Nut
|
09159-14013-000 |
— | ||
| replacement | |||||
|
10
|
10
09159-14019-000 NUTNut |
09159-14019-000 |
from US $15.66 |
||
|
11
|
11
61222-14500-19F CAPCap (blue) Cap (blue); |
61222-14500-19F |
from US $2.82 |
||
|
12
|
12
61273-14500-000
BUFFER,CHAIN TOUCH DEFENSE
Buffer,chain defense; |
61273-14500-000 |
— | ||
|
13
|
13
01517-06708-000
Bolt
|
01517-06708-000 |
— | ||
| replacement | |||||
|
13
|
13
01550-06707-000 Bolt |
01550-06707-000 |
from US $5.87 |
||
|
14
|
14
08319-31068-000
Nut
|
08319-31068-000 |
— | ||
| replacement | |||||
|
14
|
14
08319-31067-000 NUTNut, center |
08319-31067-000 |
from US $1.44 |
||
|
15
|
15
64300-14840-000
Torque link set
|
64300-14840-000 |
— | ||
| replacement | |||||
|
15
|
15
64300-14500-000
New Genuine Part
|
64300-14500-000 |
— | ||
|
16
|
16
64352-40411-000
Bearing
|
64352-40411-000 |
— | ||
| replacement | |||||
|
16
|
16
64352-40401-000
SPHERICAL BRNG,TORQUE LINK
|
64352-40401-000 |
— | ||
|
17
|
17
09101-08003-000
Bolt brake peda
Bolt,front; |
09101-08003-000 |
— | ||
|
18
|
18
64339-40410-000
SEAL,BEARING DUST
|
64339-40410-000 |
— | ||
| replacement | |||||
|
18
|
18
64339-40411-000 Seal,bearing Dust |
64339-40411-000 |
US $10.54 |
||
|
19
|
19
04111-20158-000
20 x 15 cotter
Cotter pin; |
04111-20158-000 |
— | ||
| replacement | |||||
|
19
|
19
04111-2015A-000 PINCotter pin; |
04111-2015A-000 |
from US $0.76 |
||
|
20
|
20
09101-08014-000
Bolt (8x29.5)
Bolt,rear; |
09101-08014-000 |
— | ||
|
21
|
21
08322-11088-000
Washer
|
08322-11088-000 |
— | ||
| replacement | |||||
|
21
|
21
08322-01087-000 WASHERLock washer |
08322-01087-000 |
from US $0.76 |
||
|
22
|
22
08314-41088-000
Nut
|
08314-41088-000 |
— | ||
| replacement | |||||
|
22
|
22
08314-4008B-000 NUT |
08314-4008B-000 |
from US $1.06 |
||
|
23
|
23
04111-20208-000 20 x 20 cotterCotter pin Cotter pin; |
04111-20208-000 |
from US $0.80 |
||
| replacement | |||||
|
23
|
23
04111-2020A-000 PINCotter pin, rod end Cotter pin; |
04111-2020A-000 |
from US $0.76 |
||
