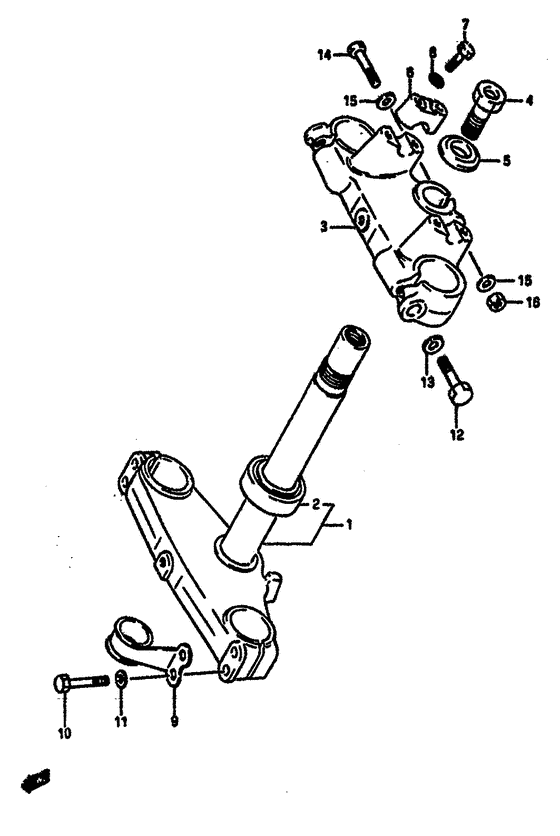

Steering stem (Model f) Diagram Suzuki RM125
- Year
- 1984
- Model code
- RM125E(E/F) E
- Engine Capacity
- 125
- Model
- RM125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
51410-14500-000
Stem,steering
|
51410-14500-000 |
— | ||
|
2
|
2
09265-30005-000
Bearing
|
09265-30005-000 |
— | ||
| replacements | |||||
|
2
|
2
09265-30009-000
BEARING(30X55X17)
|
09265-30009-000 |
— | ||
|
2
|
2
09265-30034-000 Bearing |
09265-30034-000 |
from US $31.92 |
||
|
3
|
3
51311-14500-000
Stem head,steering
|
51311-14500-000 |
— | ||
|
4
|
4
51351-41320-000
Bolt
|
51351-41320-000 |
— | ||
|
5
|
5
51356-41310-000 WASHER |
51356-41310-000 |
US $5.46 |
||
|
6
|
6
56211-27100-000 HOLDER,HANDLEBARHolder,handle upper; |
56211-27100-000 |
from US $20.54 |
||
|
7
|
7
01107-08358-000
Bolt 8 x 35
|
01107-08358-000 |
— | ||
| replacement | |||||
|
7
|
7
01500-0835B-000 BOLTBolt, muffler support |
01500-0835B-000 |
from US $0.96 |
||
|
8
|
8
08321-31088-000
Lock washer
|
08321-31088-000 |
— | ||
| replacement | |||||
|
8
|
8
08321-01087-000 WASHER,LOCKWasher, lock |
08321-01087-000 |
from US $0.76 |
||
|
9
|
9
58621-14520-000
Clip
|
58621-14520-000 |
— | ||
|
10
|
10
01107-08408-000
Bolt
|
01107-08408-000 |
— | ||
| replacement | |||||
|
10
|
10
01500-0840A-000 Bolt |
01500-0840A-000 |
from US $0.96 |
||
|
11
|
11
08321-31088-000
Lock washer
|
08321-31088-000 |
— | ||
| replacement | |||||
|
11
|
11
08321-01087-000 WASHER,LOCKWasher, lock |
08321-01087-000 |
from US $0.76 |
||
|
12
|
12
01107-10458-000
Bolt (10*45)
|
01107-10458-000 |
— | ||
| replacement | |||||
|
12
|
12
01500-1045A-000 Bolt |
01500-1045A-000 |
from US $4.86 |
||
|
13
|
13
08321-31108-000
Lock washer
Lock washer; |
08321-31108-000 |
— | ||
| replacement | |||||
|
13
|
13
08321-01107-000 WASHER,LOCKLock washer Lock washer; |
08321-01107-000 |
from US $0.76 |
||
|
14
|
14
01107-08508-000
Bolt
|
01107-08508-000 |
— | ||
| replacement | |||||
|
14
|
14
01500-08507-000 Bolt |
01500-08507-000 |
from US $4.88 |
||
|
15
|
15
08322-11088-000
Washer
|
08322-11088-000 |
— | ||
| replacement | |||||
|
15
|
15
08322-01087-000 WASHERLock washer |
08322-01087-000 |
from US $0.76 |
||
|
16
|
16
08310-12088-000
Nut
|
08310-12088-000 |
— | ||
| replacement | |||||
|
16
|
16
08310-00087-000 NUT |
08310-00087-000 |
from US $0.76 |
||
