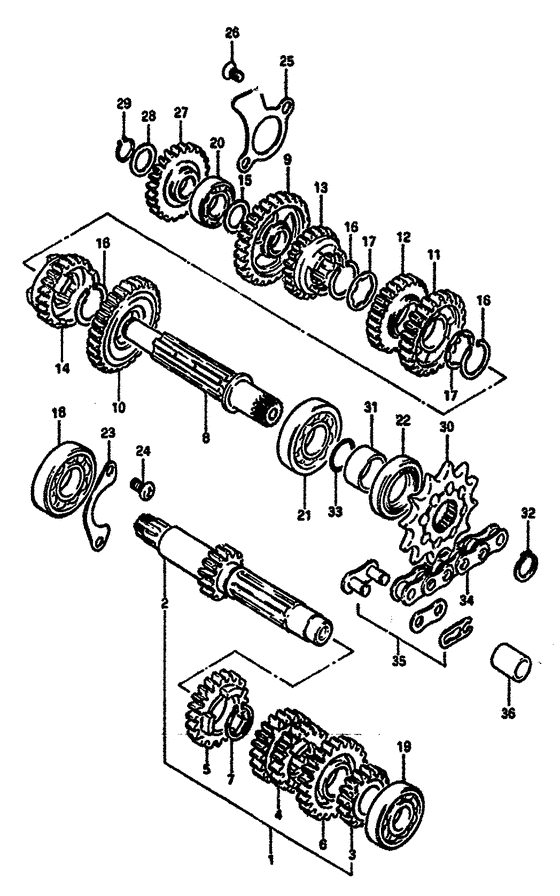

Transmission (Model e) Diagram Suzuki RM125
- Year
- 1984
- Model code
- RM125E(E/F) E
- Engine Capacity
- 125
- Model
- RM125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
24120-14502-000
Countershaft assy
See note 1 |
24120-14502-000 |
— | ||
|
2
|
2
24121-14120-000
Countershaft (nt:15)
|
24121-14120-000 |
— | ||
|
3
|
3
24221-14122-000
Gear 2nd drive
Gear,2nd drive (nt:17); See note 3 |
24221-14122-000 |
— | ||
|
4
|
4
24231-14501-000
Gear 3rd/4th dr
Gear,3/4 drive (nt:17/21); See note 2 |
24231-14501-000 |
— | ||
|
5
|
5
24250-14500-000
Gear 5th drive
Gear,5th drive (nt:22); |
24250-14500-000 |
— | ||
|
6
|
6
24260-14500-000 GEAR,6TH DRIVE(NT:23)Gear,6th drive (nt:23) Gear,6th drive (nt:23); |
24260-14500-000 |
from US $58.88 |
||
|
7
|
7
09380-20007-000 CIRCLIP5th dr gear circlip Circlip; |
09380-20007-000 |
from US $1.82 |
||
|
8
|
8
24131-14120-000
Driveshaft
|
24131-14120-000 |
— | ||
|
9
|
9
24311-14500-000
Gear 1st driven
Gear,1st driven (nt:31); |
24311-14500-000 |
— | ||
|
10
|
10
24321-14501-000
Gear 2nd driven
Gear,2nd driven (nt:29); See note 4 |
24321-14501-000 |
— | ||
|
11
|
11
24331-14501-000
Gear 3rd driven
Gear,3rd driven (nt:24); |
24331-14501-000 |
— | ||
|
12
|
12
24341-14500-000
Gear 4th driven
Gear,4th driven (nt:25); |
24341-14500-000 |
— | ||
|
13
|
13
24351-14500-000
Gear,5th driven (nt:23)
|
24351-14500-000 |
— | ||
|
14
|
14
24361-14500-000
Gear 6th driven
Gear,6th driven (nt:22); |
24361-14500-000 |
— | ||
|
15
|
15
08211-15261-000 Washer |
08211-15261-000 |
US $2.38 |
||
| replacement | |||||
|
15
|
15
09181-15195-000 SHIM(15X26X1)Washer (15x26x1.0) |
09181-15195-000 |
from US $4.06 |
||
|
16
|
16
09380-22006-000 CIRCLIPCirclip Circlip; |
09380-22006-000 |
from US $1.82 |
||
|
17
|
17
09167-22011-000 WASHER,LOCKWasher (22.1x27x0.5) Washer; |
09167-22011-000 |
from US $5.17 |
||
|
18
|
18
09262-20062-000
Bearing
|
09262-20062-000 |
— | ||
| replacement | |||||
|
18
|
18
09262-20069-000 BEARING(20X47X14) |
09262-20069-000 |
from US $11.52 |
||
|
19
|
19
08113-60020-000 BearingB1 15x32x09 bearing lh Bearing,lh; |
08113-60020-000 |
from US $11.37 |
||
|
20
|
20
08113-62027-000 BEARINGBearing, rh Bearing,rh; |
08113-62027-000 |
from US $7.68 |
||
|
21
|
21
09262-20043-000
BEARING(20X47X14)
Bearing,lh; |
09262-20043-000 |
— | ||
|
22
|
22
09283-25035-000 SEAL,OIL(25X40X7)Oil seal, upper crankshaft Oil seal; |
09283-25035-000 |
from US $7.15 |
||
|
23
|
23
24741-48000-000 RETAINER,CNTR SHAFT BEARINGRetainer, counter shaft bearing Holder,bearing; |
24741-48000-000 |
US $3.31 |
||
|
24
|
24
02112-06128-000
Screw
|
02112-06128-000 |
— | ||
| replacement | |||||
|
24
|
24
02112-06127-000 SCREW |
02112-06127-000 |
from US $0.76 |
||
|
25
|
25
24751-14102-000
Retainer,bearin
|
24751-14102-000 |
— | ||
|
26
|
26
02122-06128-000
Screw
|
02122-06128-000 |
— | ||
| replacement | |||||
|
26
|
26
02122-06127-000 SCREW |
02122-06127-000 |
from US $0.80 |
||
|
27
|
27
26260-14100-000
Gear kk start i
Gear,kick idle (nt:28); |
26260-14100-000 |
— | ||
|
28
|
28
08211-15241-000 Low gear th wasWasher Washer; |
08211-15241-000 |
from US $1.68 |
||
| replacement | |||||
|
28
|
28
09181-15166-000 SHIM(15X24X1)Shim, cam chain idler, t:1.0 Washer; |
09181-15166-000 |
from US $1.68 |
||
|
29
|
29
08331-31159-000
Circlip
|
08331-31159-000 |
— | ||
| replacement | |||||
|
29
|
29
08331-3115A-000 CIRCLIP |
08331-3115A-000 |
from US $0.91 |
||
|
30
|
30
27511-14110-000
Sprocket,engine (nt:12)
|
27511-14110-000 |
— | ||
| replacement | |||||
|
30
|
30
27511-14111-000 SPROCKET,ENGINE |
27511-14111-000 |
from US $22.45 |
||
|
30
|
30
27511-14100-000
Sprocket,engine (nt:11)
Opt |
27511-14100-000 |
— | ||
| replacement | |||||
|
30
|
30
27511-14101-000 SPROCKET,ENGINESprocket,engine (nt:11) Opt |
27511-14101-000 |
from US $25.13 |
||
|
30
|
30
27511-14120-000
Sprocket,engine (nt:13)
Opt |
27511-14120-000 |
— | ||
| replacement | |||||
|
30
|
30
27511-14121-000 SPROCKET,ENGINEOpt |
27511-14121-000 |
from US $32.57 |
||
|
31
|
31
09180-20039-000 SPACER(20X25X12.5)Spacer (20*25*12.5) Spacer; |
09180-20039-000 |
from US $9.84 |
||
|
32
|
32
09380-20007-000 CIRCLIP5th dr gear circlip Circlip; |
09380-20007-000 |
from US $1.82 |
||
|
33
|
33
09280-20001-000 O RING(D:1,ID:19.5)Dr shaft brg o ring (d:1,id:19.5) O ring; |
09280-20001-000 |
from US $1.68 |
||
|
34
|
34
27600-14510-000
Chain,drive (520x116l)
|
27600-14510-000 |
— | ||
| replacement | |||||
|
34
|
34
27600-43D02-116 Chain,drive |
27600-43D02-116 |
US $178.13 |
||
|
35
|
35
27620-36111-000
Joint
|
27620-36111-000 |
— | ||
| replacement | |||||
|
35
|
35
27620-28C01-000
New Genuine Part
|
27620-28C01-000 |
— | ||
|
35
|
35
27620-10221-000
Joint chain
Joint (rk); |
27620-10221-000 |
— | ||
|
36
|
36
09180-12108-000
Spacer
|
09180-12108-000 |
— | ||
